iFlight Defender 16 1103 14000KV CCW

iFlight Defender 16 1103 14000KV CCW

€17,95
€17,95
Allahindlus Välja müüdud
Sisaldab käibemaksu. Saatmiskulud arvutatakse kassas.
Tarneaeg
Tarneaeg:

4-6 tööpäeva

Defender 16 1103 14000KV CCW

The Defender 16 Motor is tailored for ultralight builds, transforming the micro drone FPV experience.

Toote info

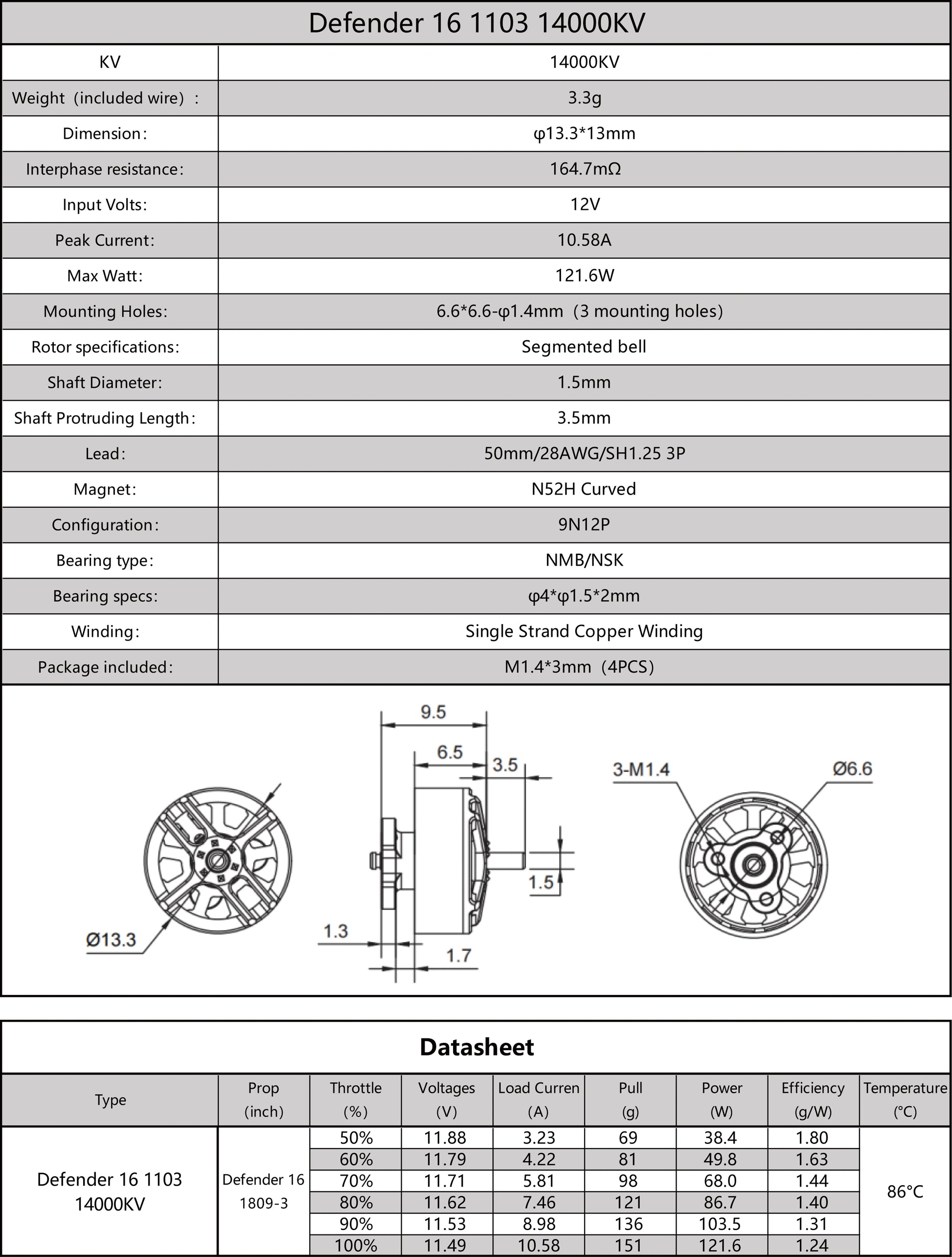

Model: Defender 16 1103 Motor
KV: 14000V
Weight (including wire): 3.3g
Dimension: 13.3*13mm
Interphase Resistance: 164.7mΩ
Input Volts: 12V
Peak Current: 10.58A
Max Watt: 121.6W
Mounting Holes: 6.6mm/φ1.4mm (3 mounting holes)
Rotor Specifications: Segmented bell
Shaft Diameter: 1.5mm
Shaft Protruding Length: 3mm
Lead: 50mm/28AWG/SH1.25 3P
Magnet: N52H Curved
Configuration: 9N12P
Bearing Type: NMB
Bearing Specification: φ4*1.5*2.mm
Winding: Single Strand copper winding

Komplektis

1 x Defender 16 1103 Motor CCW
4 x M1.4x3 mm mounting screws

Vaata kõiki üksikasju
