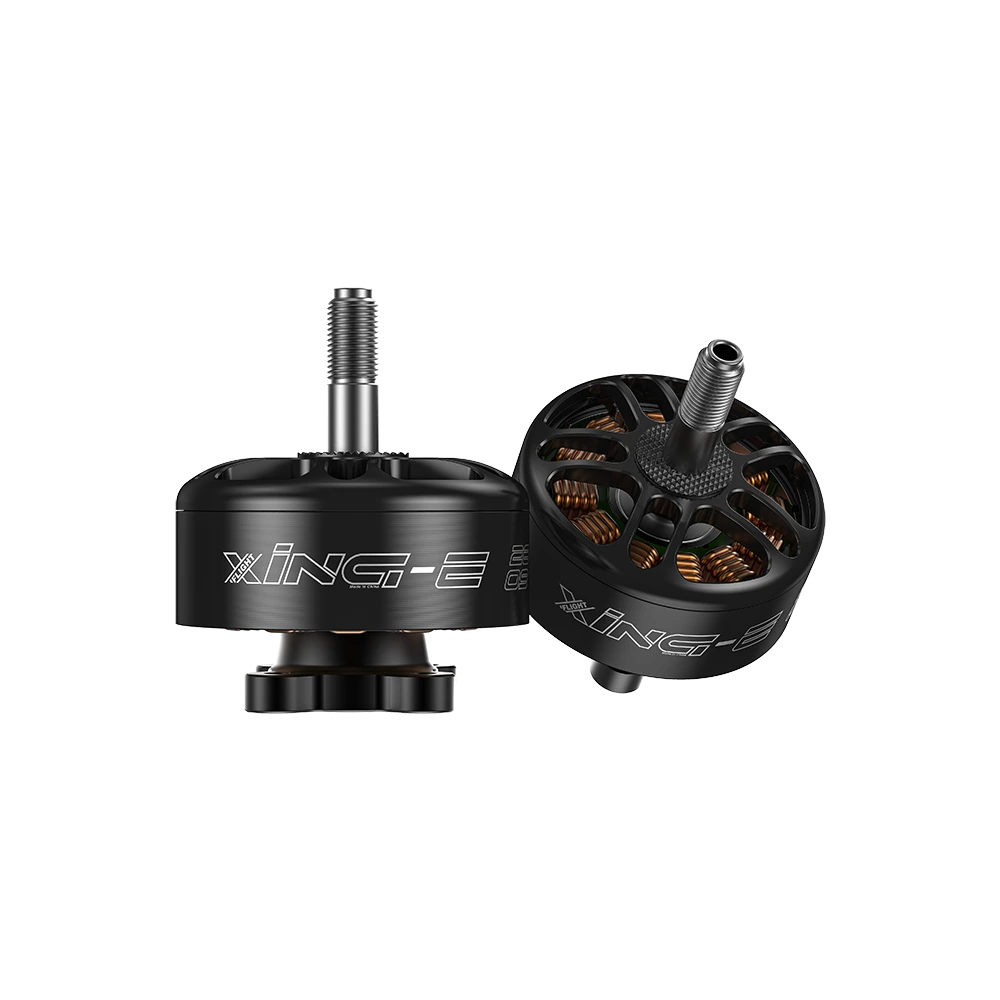

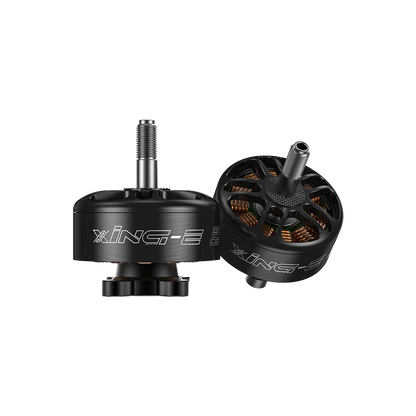

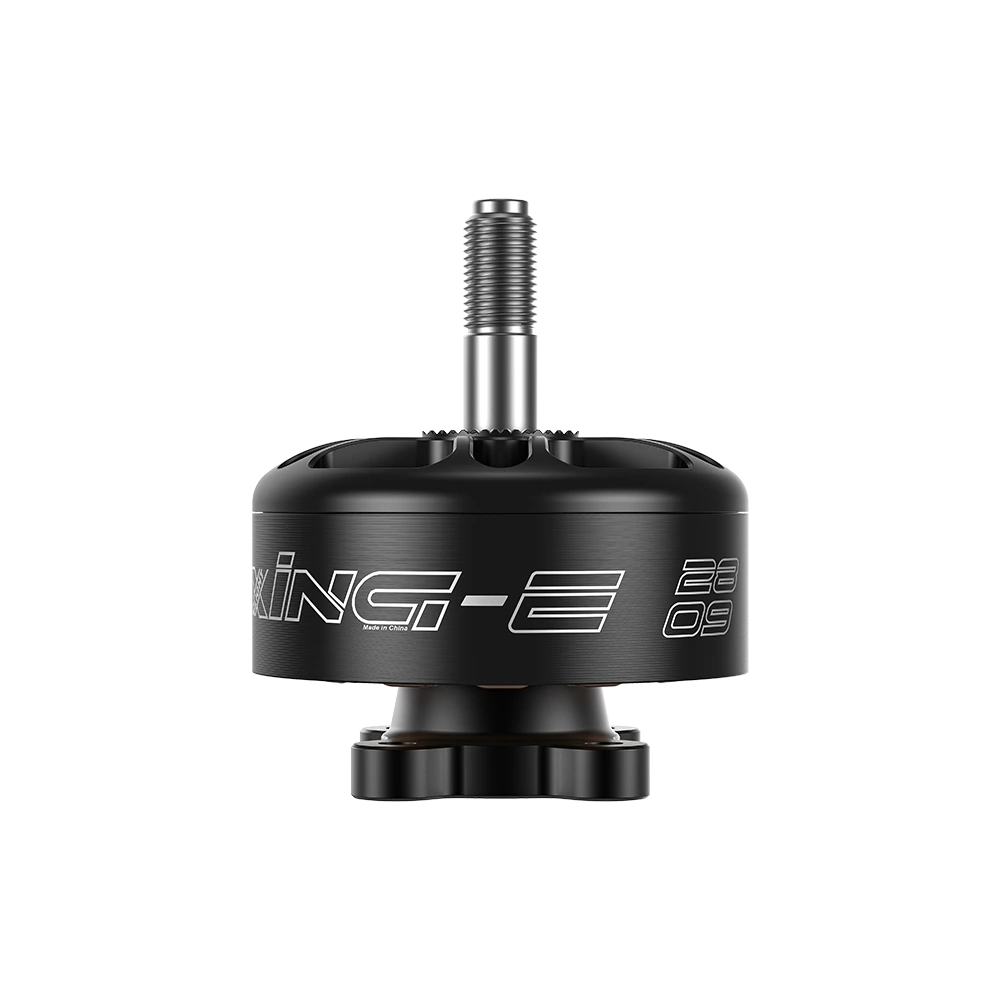

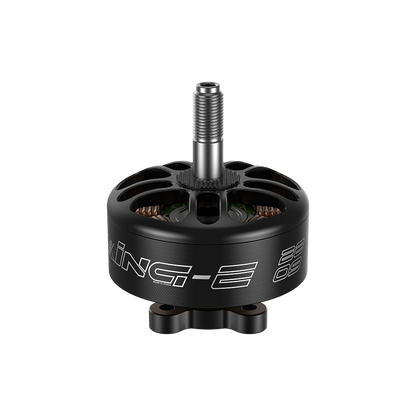

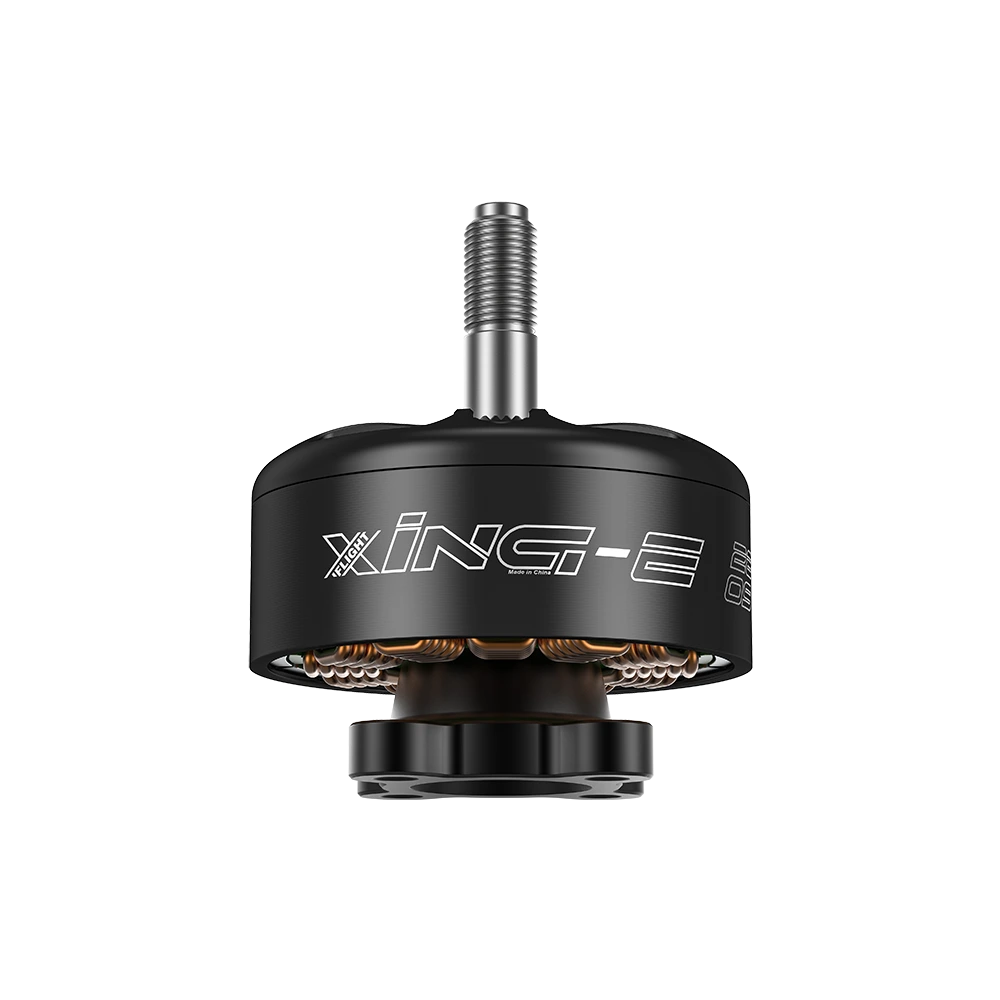

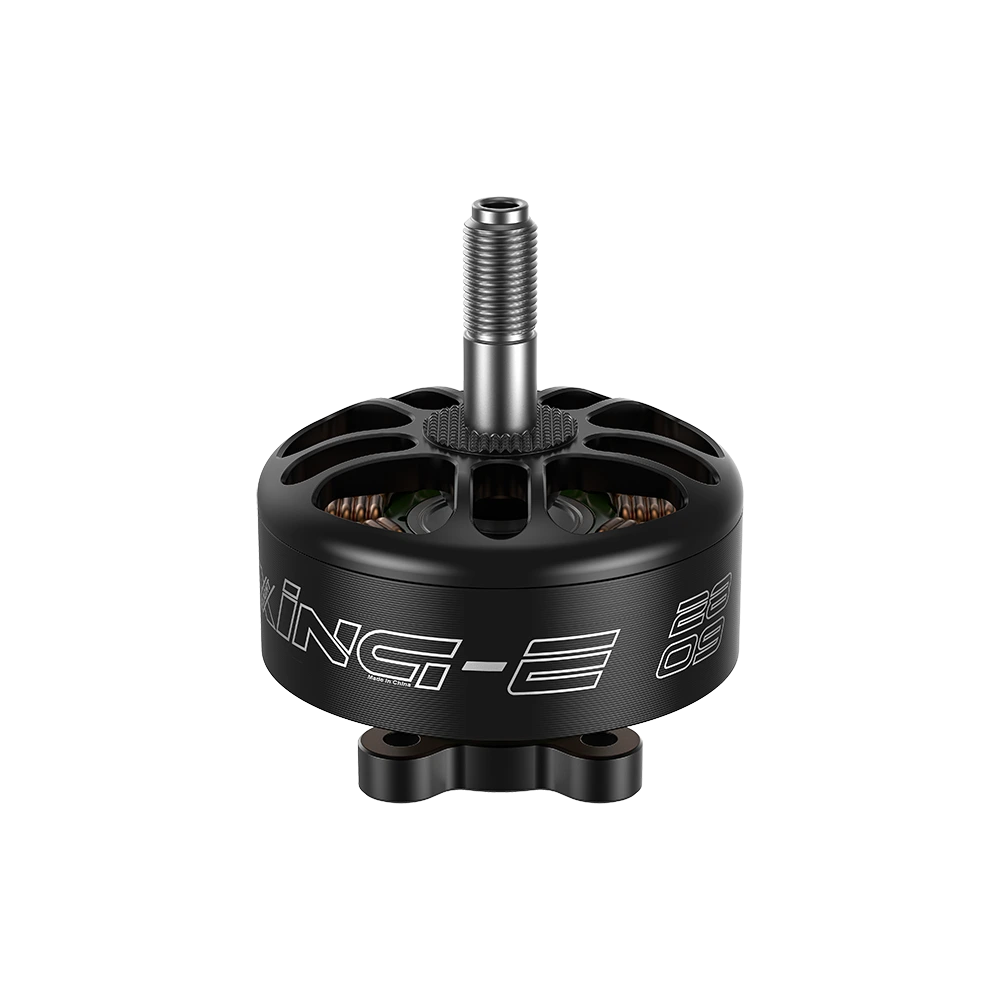

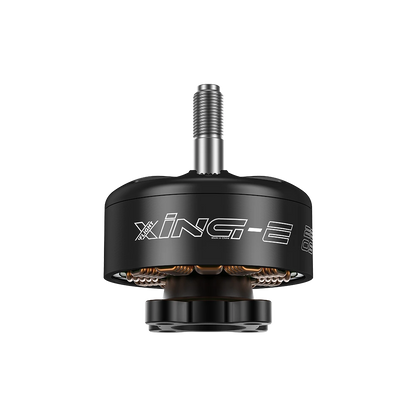

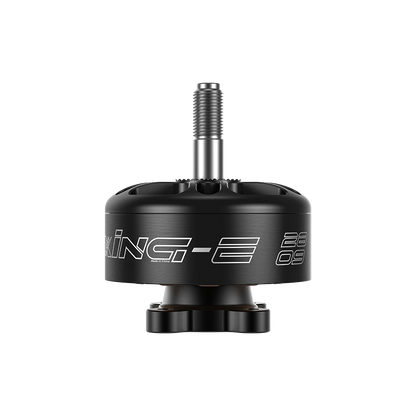

iFlight XING-E 2809 Cinelifter Motor 800KV

Name: iFlight XING-E 2809 Cinelifter Motor 800KV
Brand: iFlight
SKU: XE14993
Price: 38.95 EUR
Availability: InStock

iFlight XING-E 2809 Cinelifter Motor 800KV

€38,95

Allahindlus Välja müüdud

Sisaldab käibemaksu. Saatmiskulud arvutatakse kassas.

Tarneaeg:

4-6 tööpäeva

XING-E 2809 Cinelifter Motor 800KV

Features:

- High-strength 5mm Steel shaft
- N52H High-temperature magnets
- 19x19mm hole pattern
- Single strand copper winding

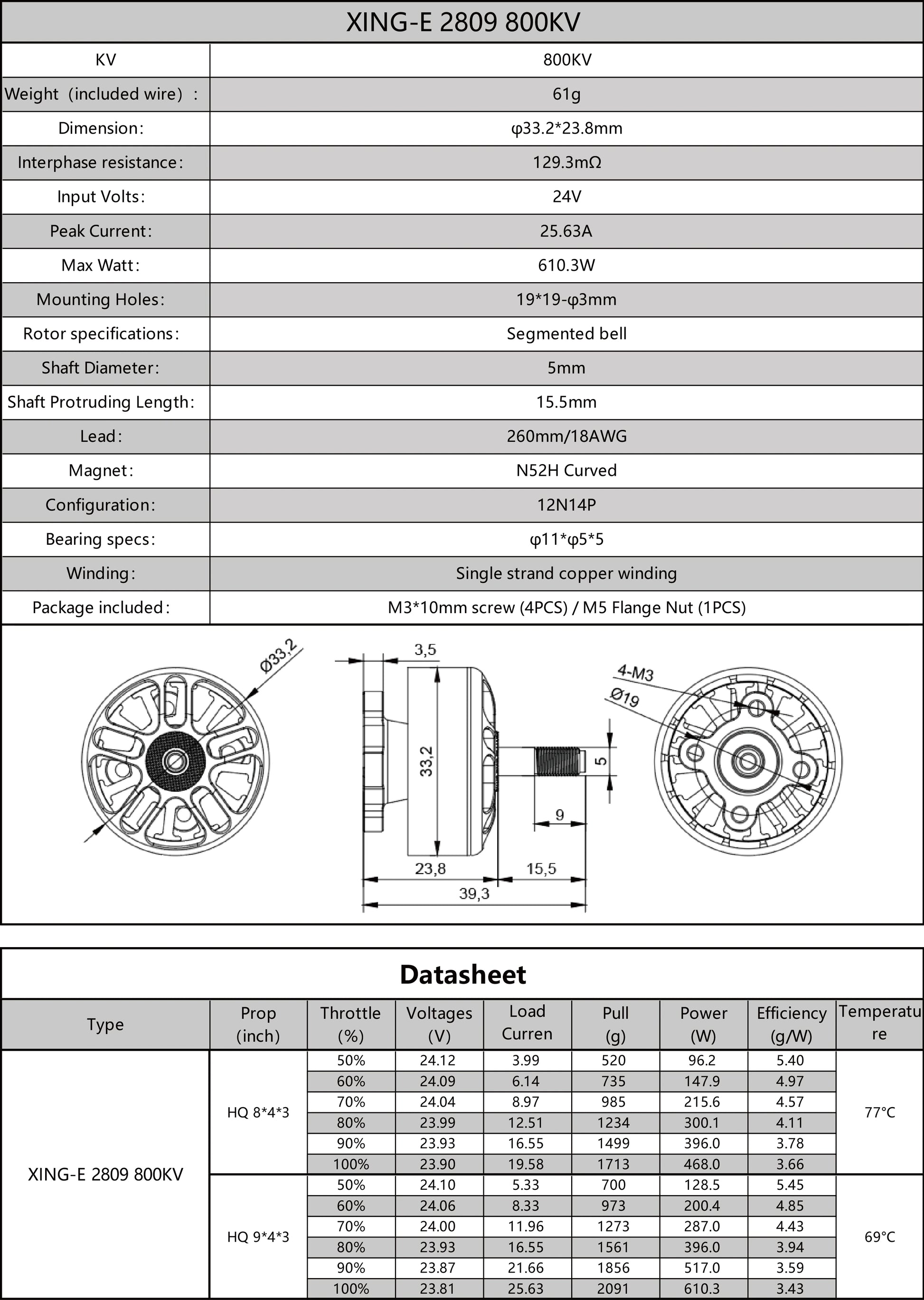

Toote info

Model: XING-E 2809 Motor
KV: 800KV
Weight(included wire): 61g
Dimension: φ33.2*23.8mm
Interphase Resistance: 129.3mΩ
Input Volts: 24V
Peak Current: 25.63A
Max Watt: 610.3W
Mounting Holes: 19*19 φ3mm
Rotor Specifications: Segmented bell
Shaft Diameter: 5mm
Shaft Protruding Length: 15mm
Lead: 260mm/18AWG
Magnet: N52H Curved
Configuration: 12N14P
Bearing Specification: φ11*φ5*5
Winding: Single Strand copper winding
