Maple Wireless 4.85-6.3G 2dBi Omnidirectional LHCP SMA-MALE

Maple Wireless 4.85-6.3G 2dBi Omnidirectional LHCP SMA-MALE

€9,95
€9,95
Sale Sold out
Taxes included. Shipping calculated at checkout.
Shipping time
Shipping time:

4-6 working days

Antenna Maple Wireless 4.85-6.3G 2dBi Omnidirectional LHCP SMA-MALE

The Maple Wireless 4.85–6.3G 2dBi Omnidirectional Antenna is a lightweight circularly polarized FPV antenna designed for stable 5 GHz video and telemetry transmission. With LHCP polarization and a standard SMA-Male connector, it offers broad compatibility with most FPV VTX and receiver systems while ensuring reliable signal performance during flight.

Features:
- Wideband operation covering the full 5 GHz FPV range
- LHCP circular polarization reduces multipath interference and signal fading
- Omnidirectional radiation pattern for consistent all-around coverage
- Low VSWR for efficient power transfer and minimal signal loss
- Lightweight and compact cylindrical design for small and medium FPV drones
- Standard SMA-Male connector for easy installation and wide compatibility
- Durable construction suitable for high-power FPV systems

Specifications

Model: Maple Wireless 4.85–6.3G Omnidirectional Antenna
Frequency Range: 4.85 – 6.3 GHz
Gain: 2 dBi
Impedance: 50 Ω
VSWR: < 1.7
Polarization: LHCP (Left-Hand Circular Polarization)
Radiation Pattern: 360° (H-plane), ~80° (E-plane)
Maximum Input Power: 10W
Connector: SMA-Male

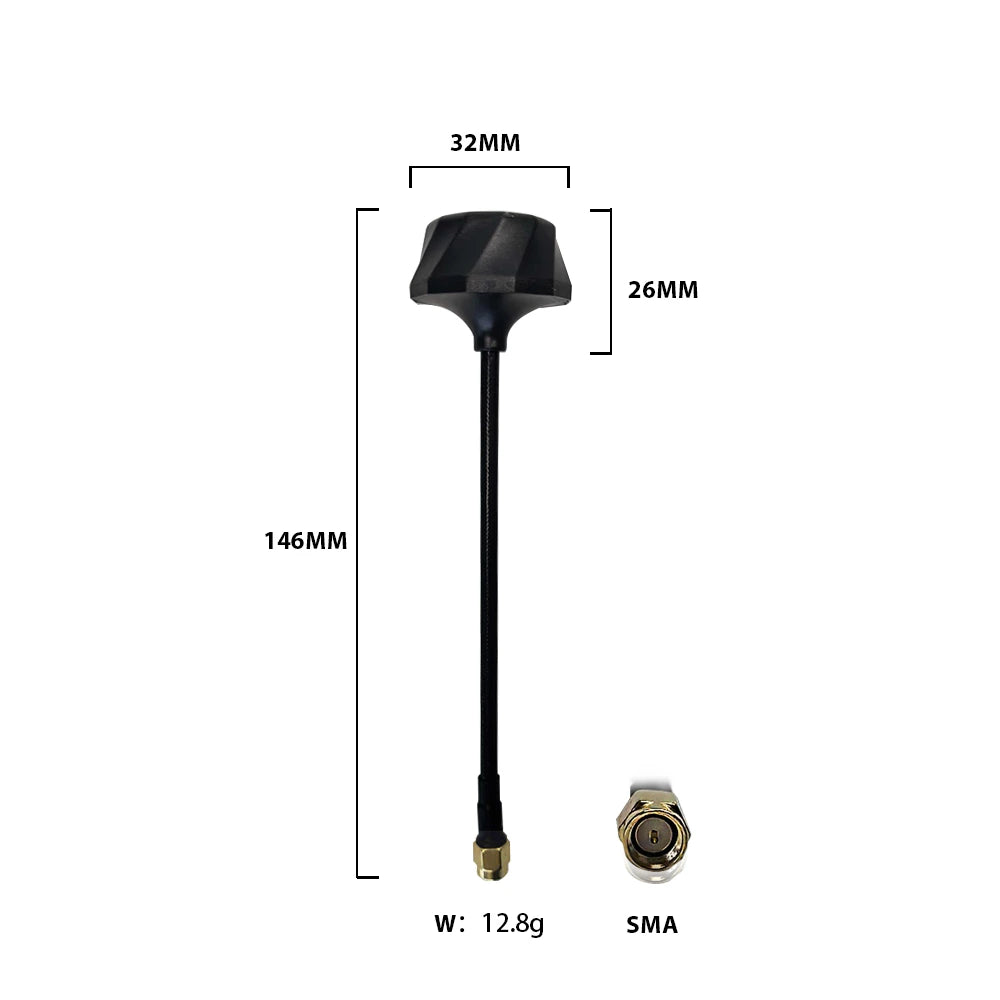

Antenna Size: Ø33x147mm
Weight: ~13 g
Operating Temperature: −40 °C to +60 °C

Includes

1x Antenna Maple Wireless 4.85-6.3G 2dBi Omnidirectional LHCP SMA-MALE
