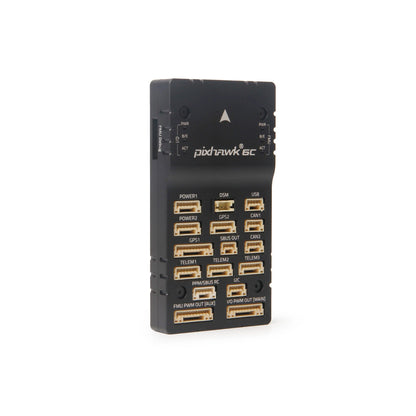

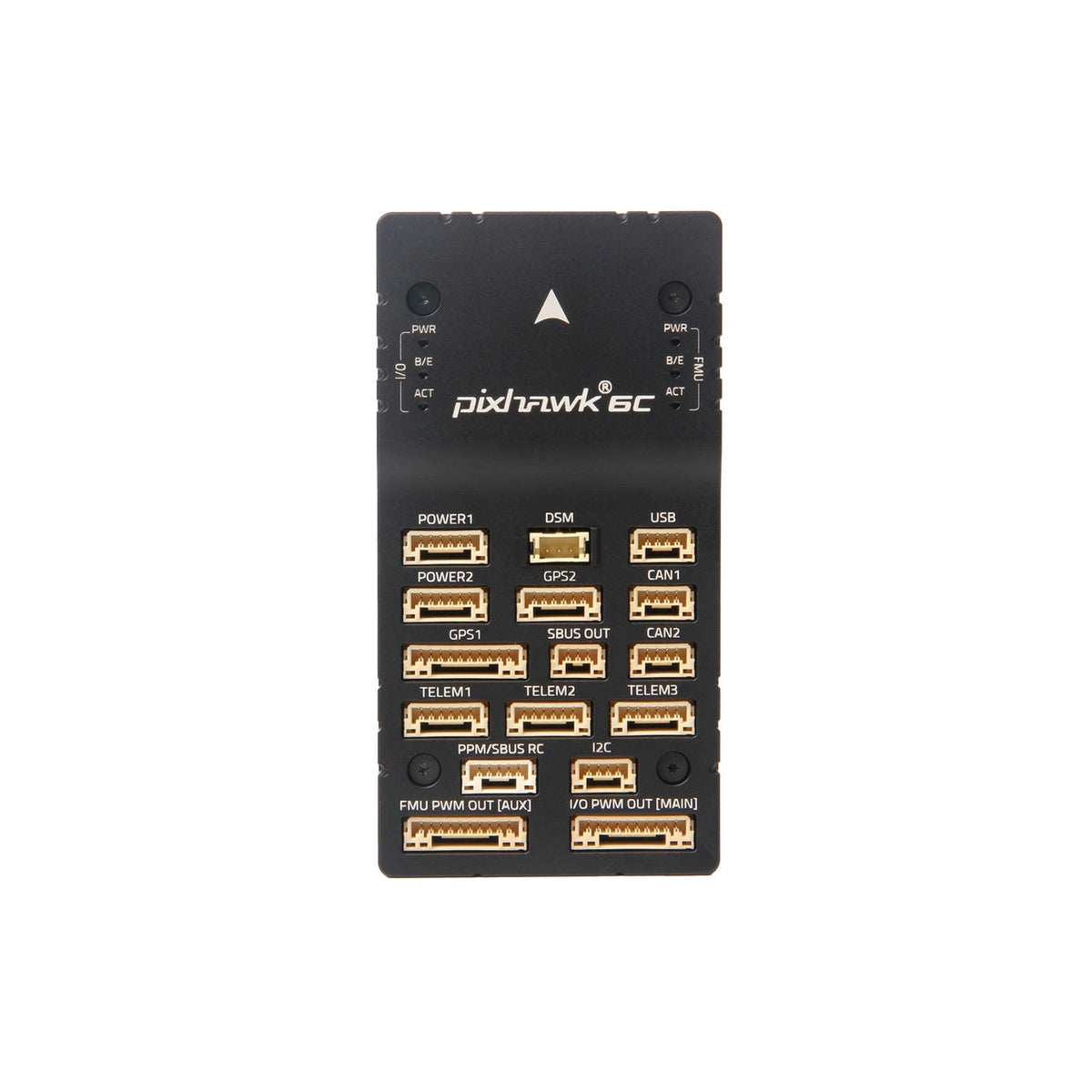

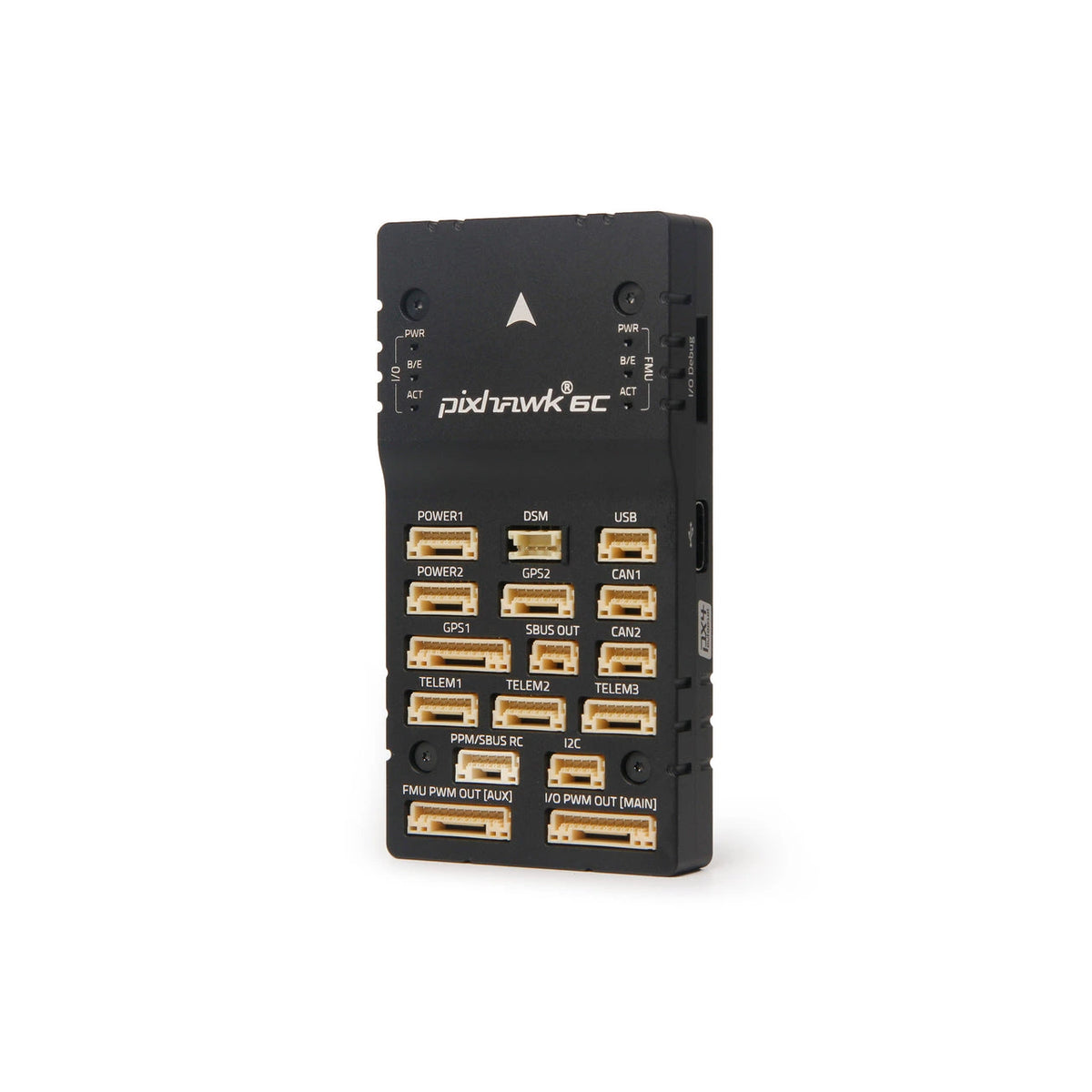

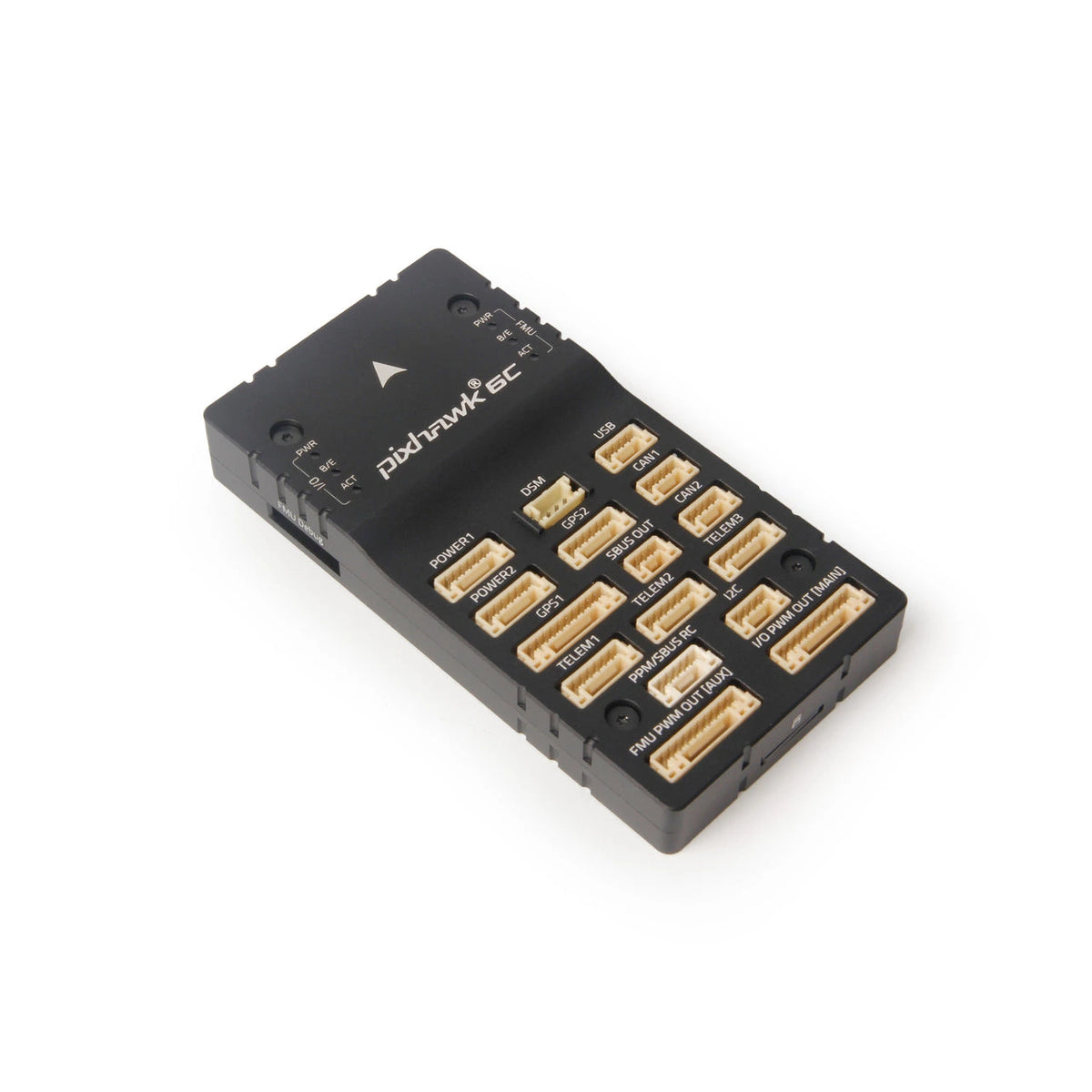

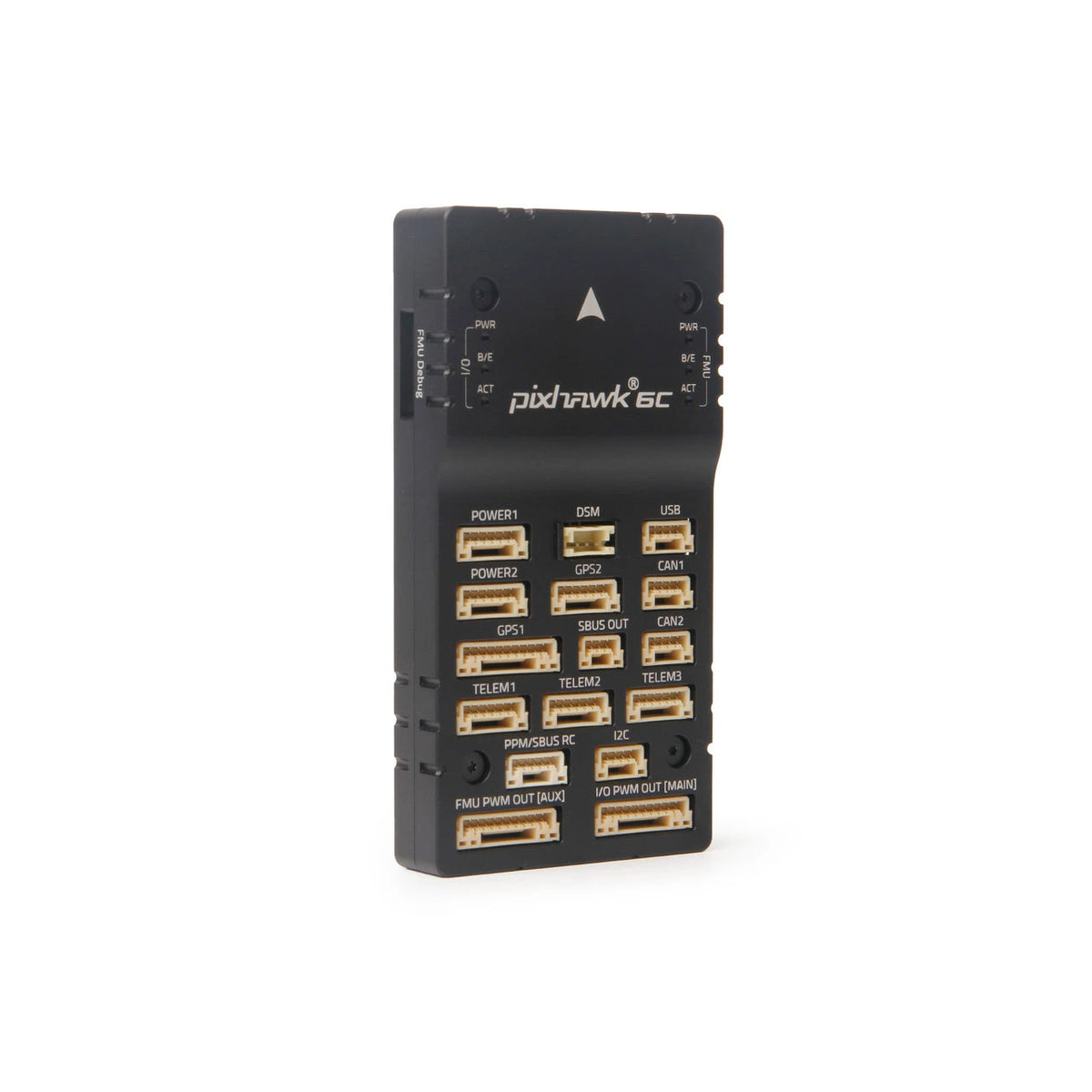

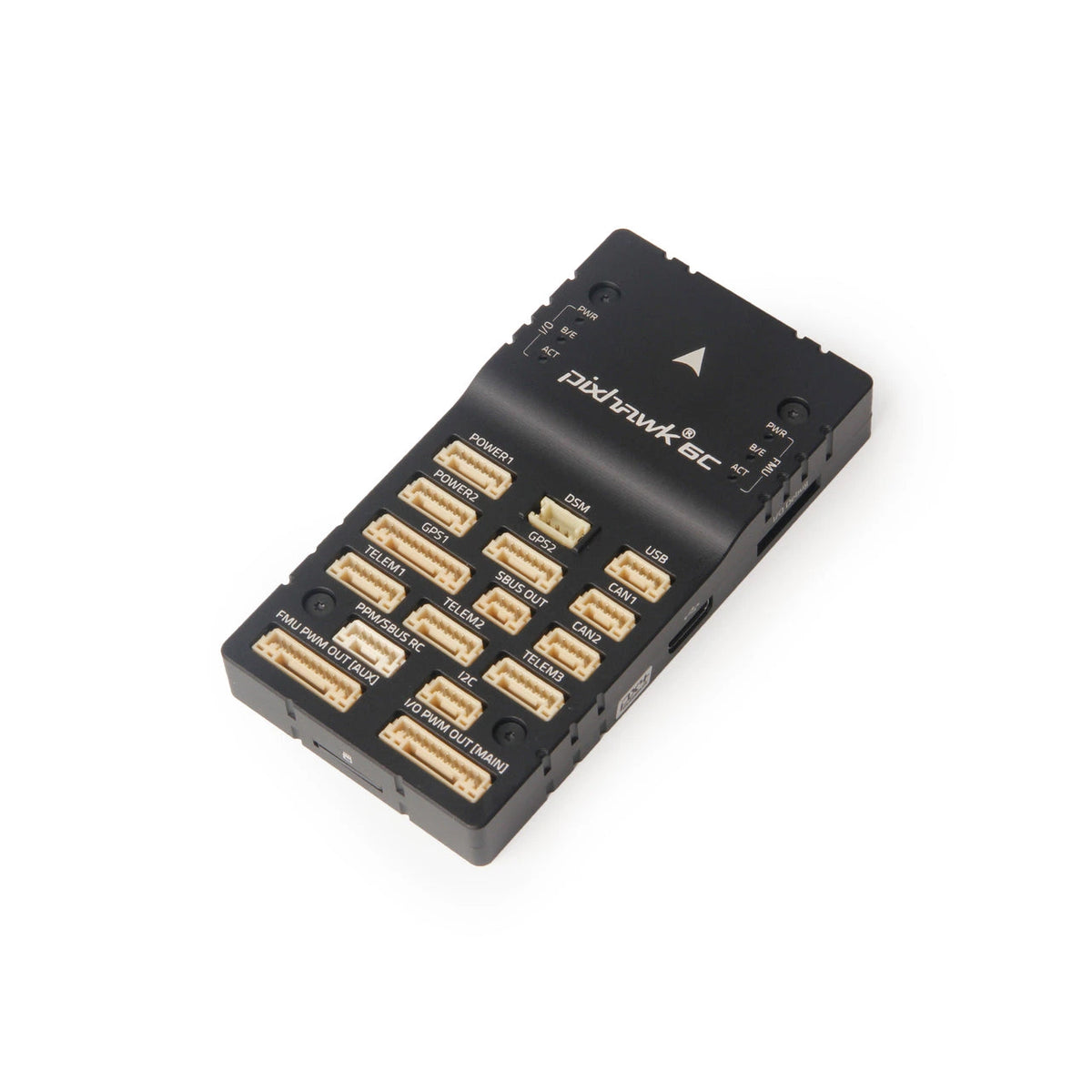

FC Holybro Pixhawk 6C (aluminum case)
FC Holybro Pixhawk 6C (aluminum case)
Regular price
€270,95
Regular price
Sale price
€270,95
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
Shipping time:
4-6 working days
The Holybro Pixhawk 6C is a professional grade flight controller based on the FMUv6C standard. Housed in a highly durable aluminum case, it is specifically designed for developers and commercial applications. Powered by a high performance H7 processor, it delivers the fast computation needed for complex algorithms and highly reliable autonomous flight.
Key Features:
- High Performance Processor: The H7 processor delivers incredibly fast computation for running complex autonomous flight algorithms.
- Dual IMU Redundancy: Integrates premium Bosch and InvenSense sensors to ensure accurate data collection and increased flight safety.
- Vibration Isolation System: Features a newly designed integrated vibration isolation system combined with temperature controlled IMUs to provide precise sensor readings in harsh or rapidly changing environments.
- Rugged Aluminum Case: Improves overall durability, protects internal electronics against signal interference, and offers a premium build quality.
- Flexible Interface Support: Provides massive connectivity options for your peripherals with multiple UARTs, CAN buses, and PWM outputs.
Specifications
- Processor (FMU): STM32H743, 32-bit Arm Cortex-M7 at 480 MHz, 2 MB Flash, 1 MB SRAM
- Processor (IO): STM32F103, 32-bit Arm Cortex-M3 at 72 MHz, 64 KB SRAM
- Sensors: ICM-42688-P, BMI055 (Accel/Gyro); IST8310 (Magnetometer); MS5611 (Barometer)
- Voltage Ratings: Max input 6V; USB 4.75 to 5.25V; Servo rail 0 to 36V
- Current Ratings: Telem1 and GPS2 limit 1.5A; other ports combined 1.5A
- Operating Temperature: -25°C to +85°C
- Dimensions: 84.8 x 44 x 12.4mm
- Weight: 59.3g (aluminum case)

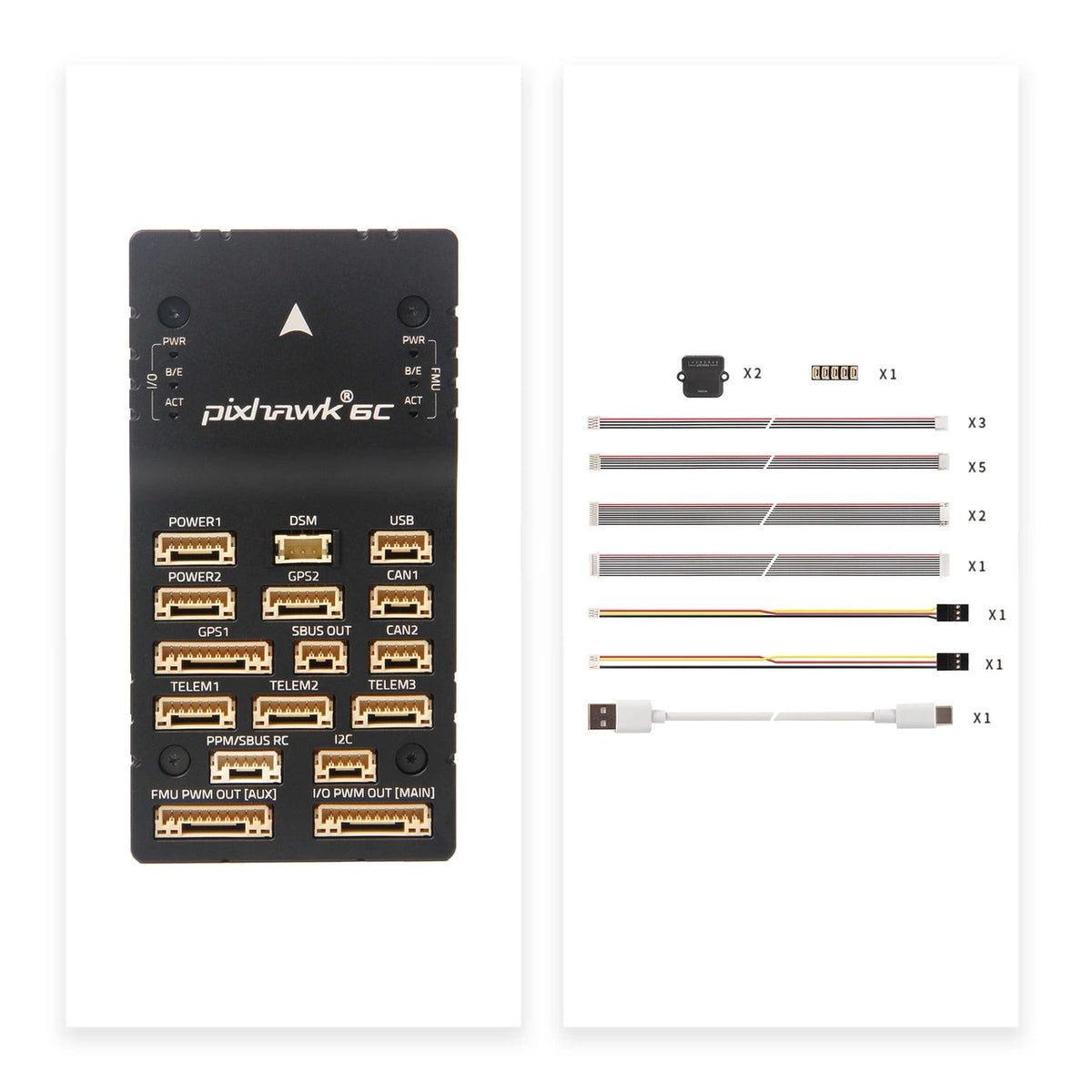

Includes
1x FC Holybro Pixhawk 6C (aluminum case)
1x Cable Set
