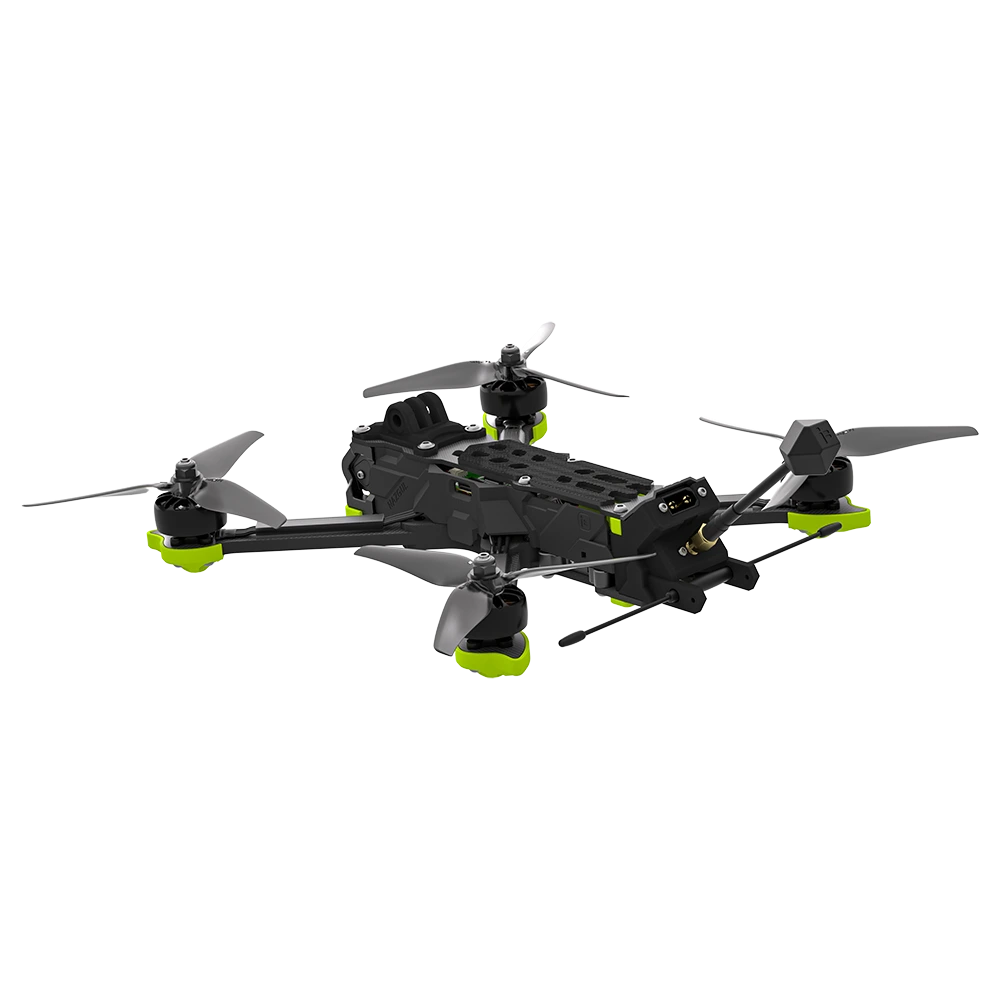

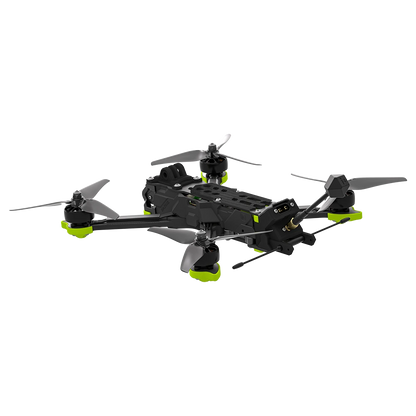

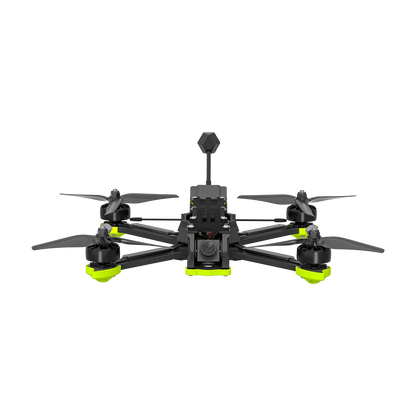

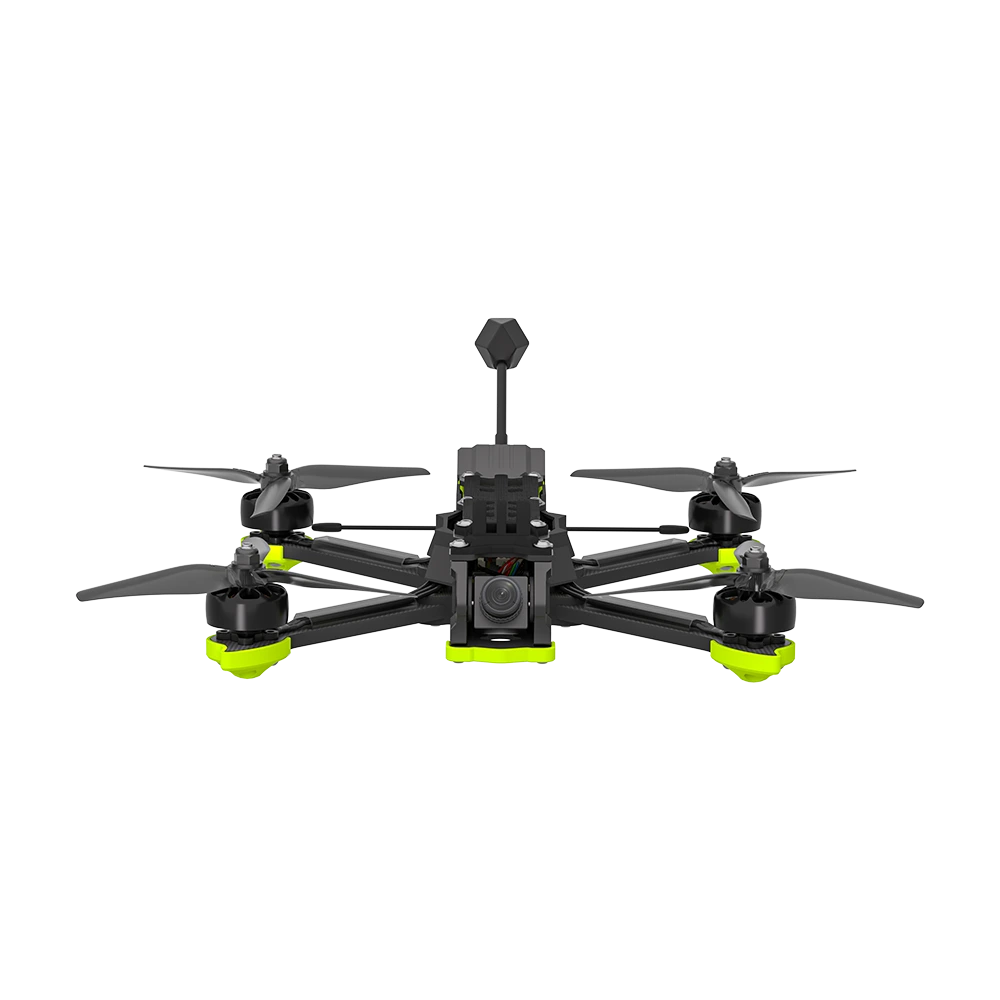

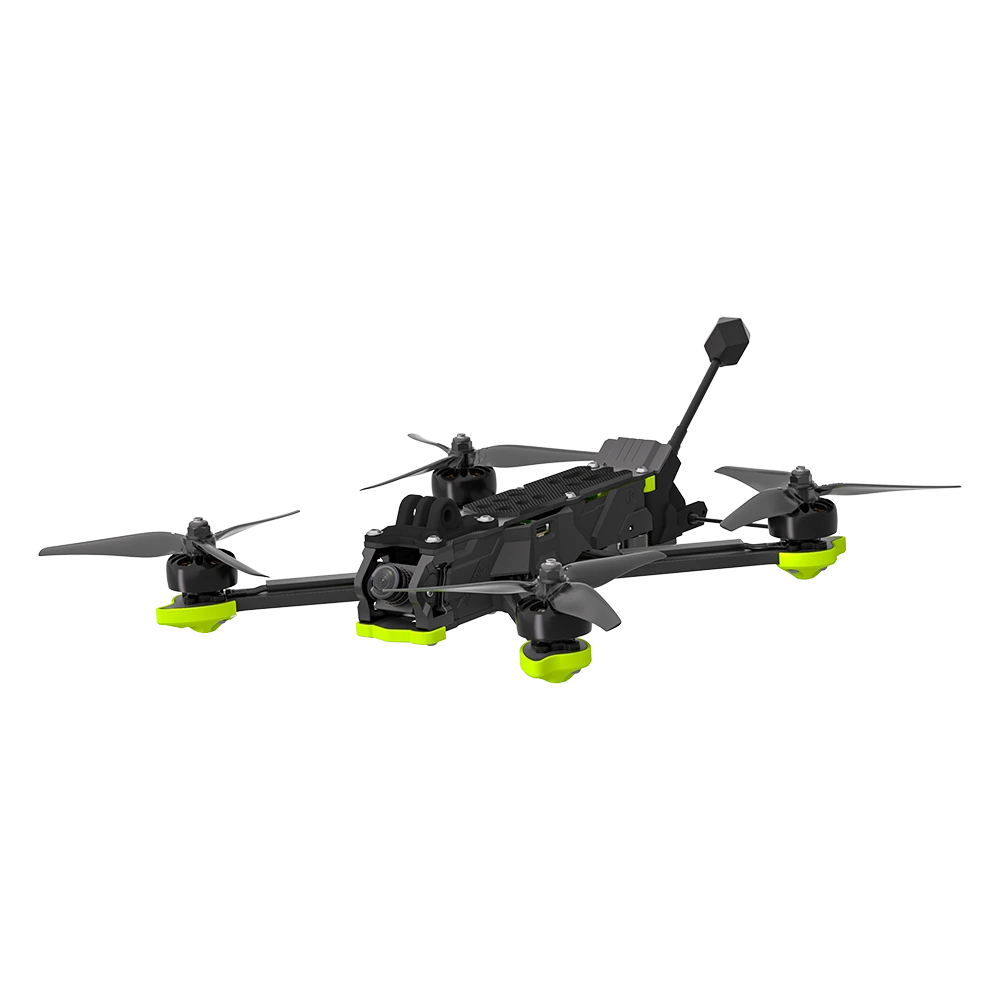

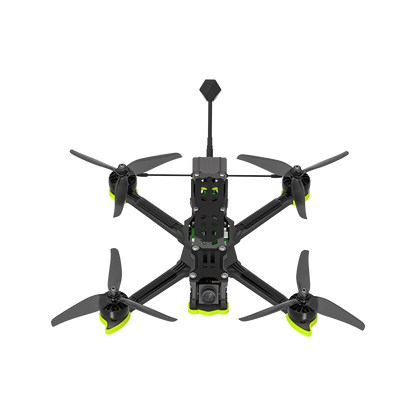

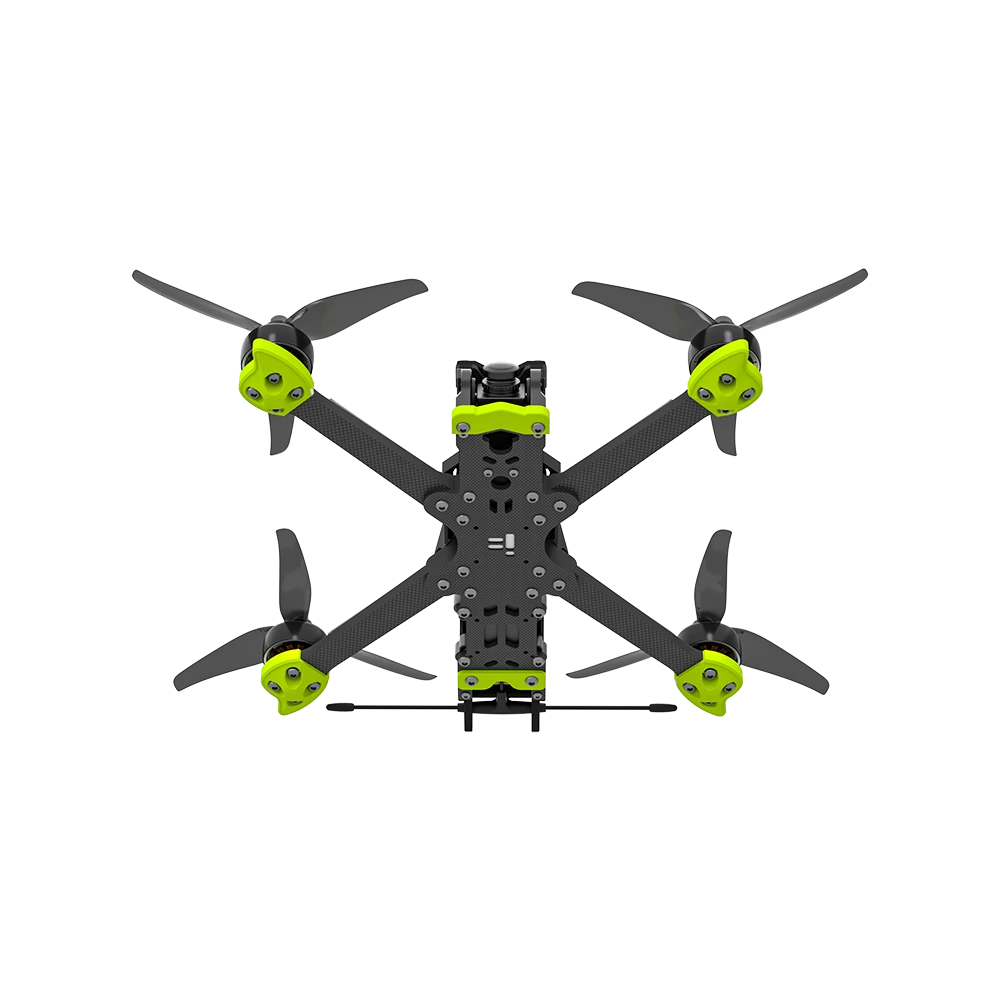

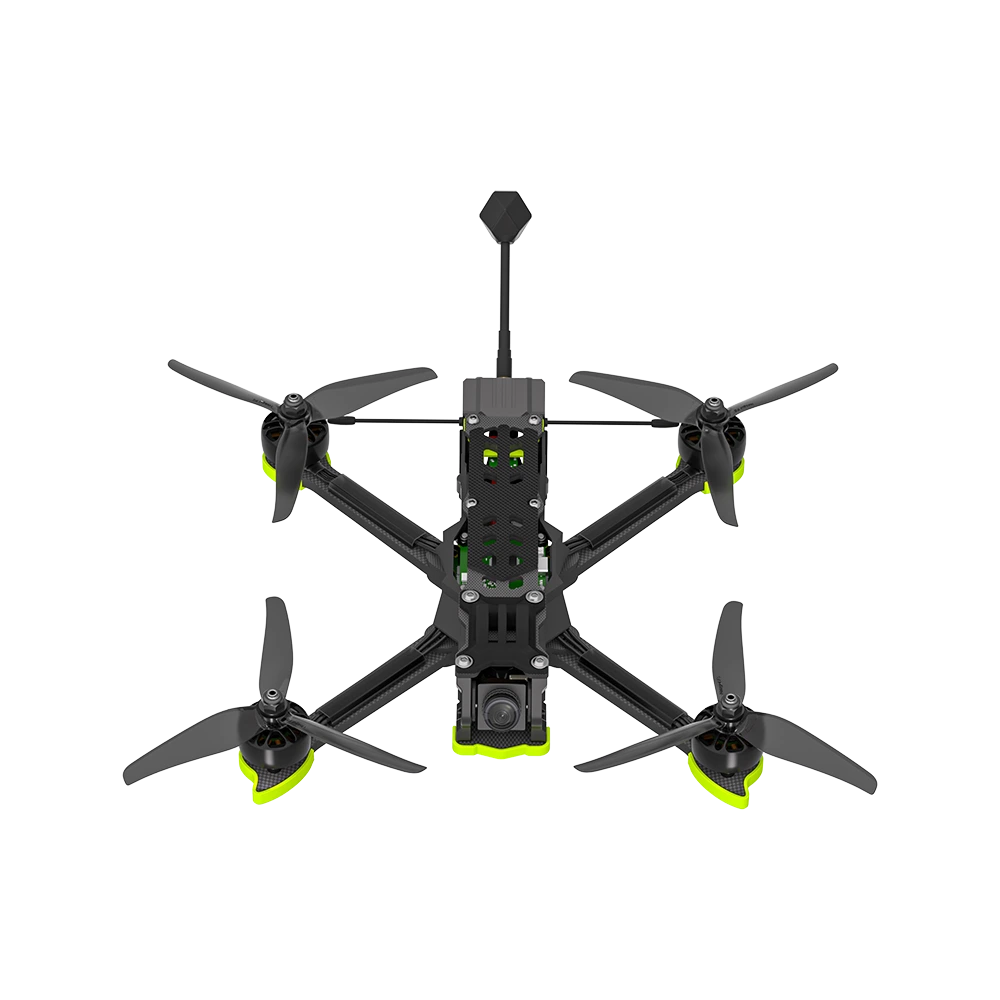

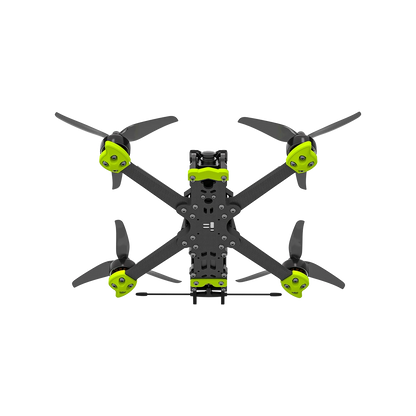

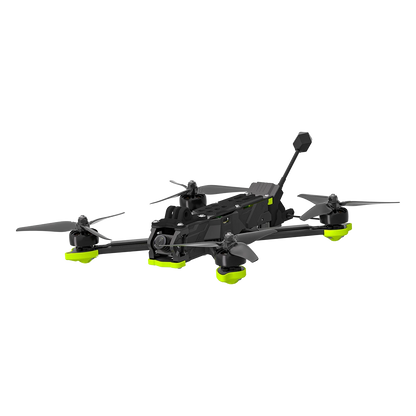

iFlight Nazgul XL5 V1.1 ECO Analog BNF ELRS + GPS

iFlight Nazgul XL5 V1.1 ECO Analog BNF ELRS + GPS

€309,95
€309,95
Sale Sold out
Taxes included. Shipping calculated at checkout.
Shipping time
Shipping time:

4-6 working days

FPV Drone iFlight Nazgul XL5 V1.1 ECO Analog BNF ELRS 2.4GHz + GPS

The iFlight Nazgul XL5 V1.1 ECO Analog BNF TBS is a standard 5” freestyle drone. Equipped with an ATF435 flight controller, BLITZ 1.6W VTX and BLITZ E55S 2-6S 55A ESC, the Nazgul XL5 ECO delivers high performance and reliability. The carbon fiber and aluminum camera mount is both lightweight and durable, and the included GoPro mount provides the versatility to capture your epic freestyle flights. Take it to new heights with the Nazgul XL5 ECO.

Specifications

This model comes with iFlight ELRS 2.4GHz Receiver and GPS Pre-installed
Geometry: True-X
FC: BLITZ ATF435 Flight Controller
ESC: BLITZ E55S 4-IN-1 ESC
Video Transmission: BLITZ 1.6W VTX
Frame: 245mm wheelbase
Motor: XING-E Pro 2207 1800KV motors
Prop: Nazgul F5 propellers
Weight: 427g
Takeoff Weight: Approx. 652g (With 6S 1400mAh battery)
Dimensions (L×W×H): 173×173×34±2 mm
Diagonal Distance: 245mm
Max Speed: 190 km/h (Manual Mode)
Maximum Takeoff Altitude: 3200 m
Max Hover Time: Approx. 7.5 mins (No Load with 6S 1400mAh Battery)
Max Wind Speed Resistance: Level 7
Operating Temperature Range：-10° to 40° C (14° to 104° F)
Antennas: Single Antenna

VTX:

Product Name: BLITZ 5.8G 1.6W VTX
Output Power: PIT/25mW/400mW/800mW/1600mW
Input Volts: 7-34V(2-8S)
Working Current: 25.2V，≤pit @20mA，≤25mw@65mA，≤400mw@130mA，≤800mw@150mA，≤1600mw@250mA
Transmission fre: 40CH(A-B-E-F-R)
Antenna Interface: MMCX
Mounting Hole: 30.5×30.5/Φ3mm
Weight: 18.9g (Antenna not included)
Dimensions: 38.5×38.5mm

Includes

1 x FPV Drone iFlight Nazgul XL5 V1.1 ECO Analog BNF ELRS 2.4GHz + GPS
1 x Antennas
2 x Battery pads
2 x Nazgul F5 Prop (Pairs)
