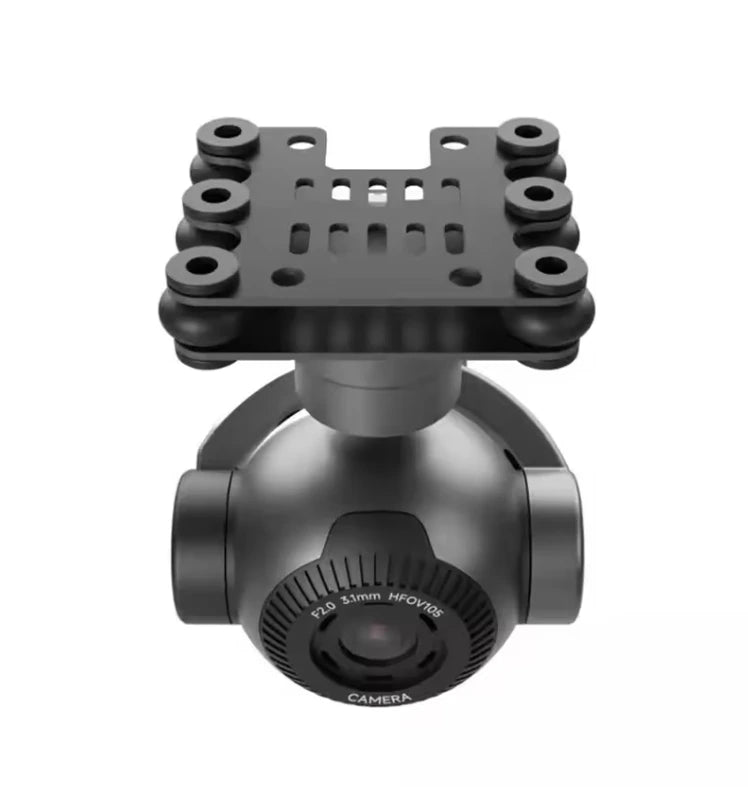

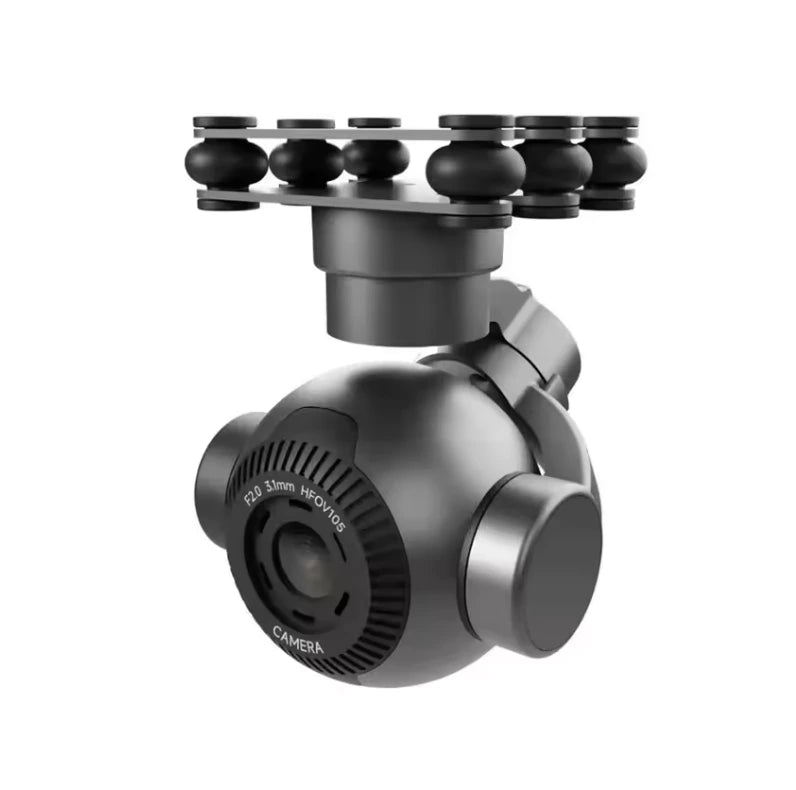

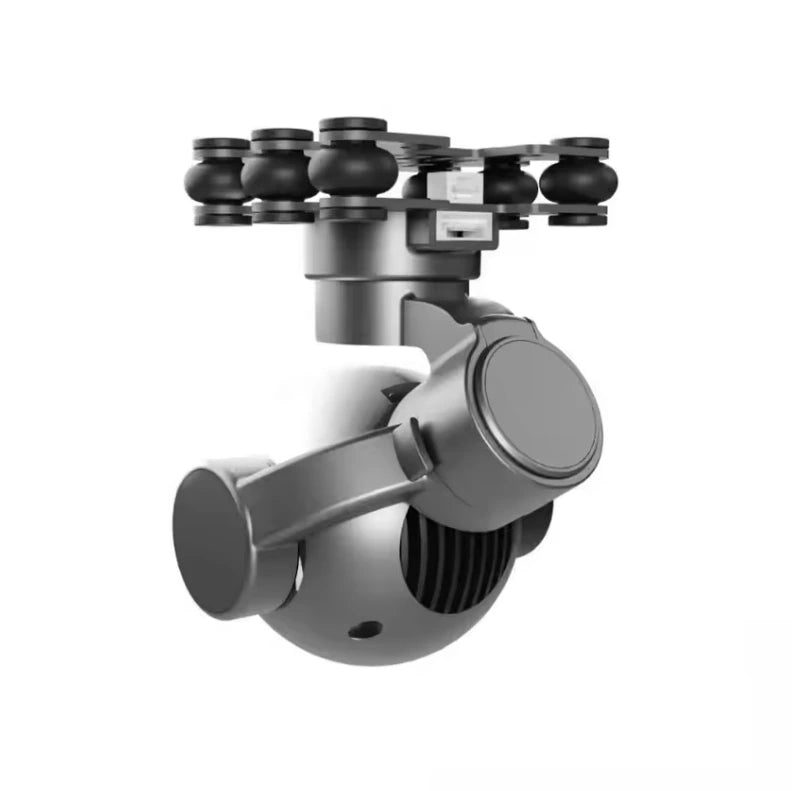

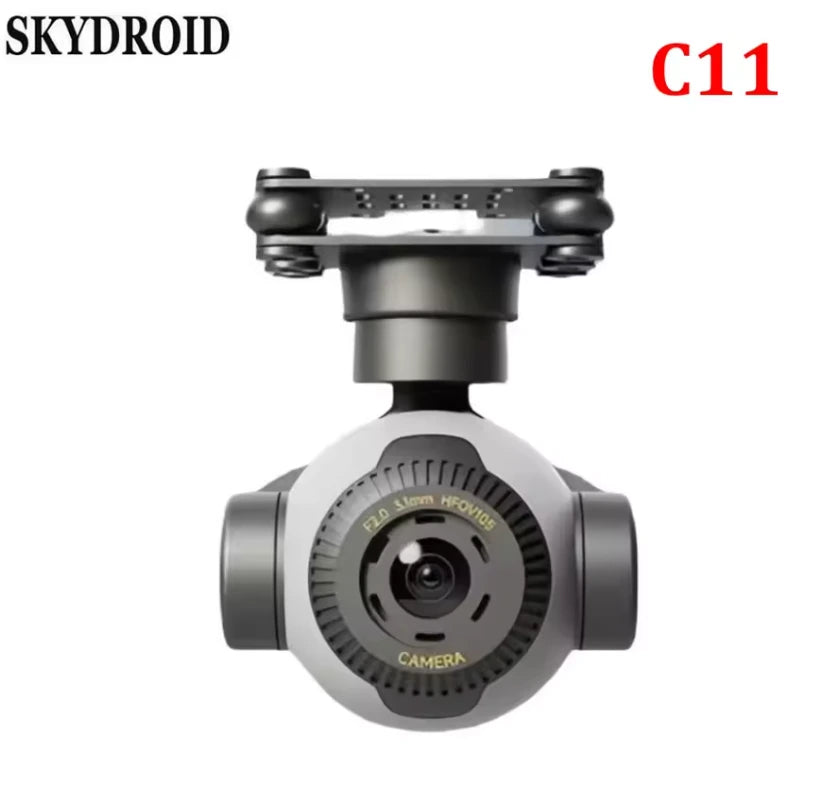

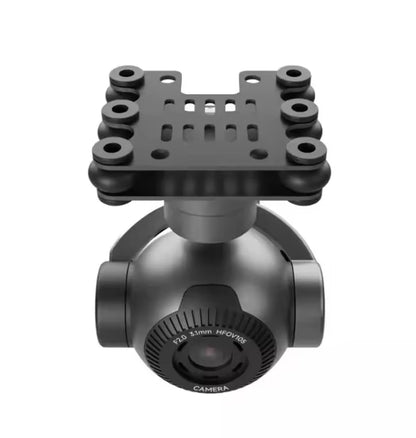

FPV HD camera SkyDroid C11 4K Thermal 3-Axis Stabilized Gimbal

FPV HD camera SkyDroid C11 4K Thermal 3-Axis Stabilized Gimbal

€248,95
€248,95
Sale Sold out
Taxes included. Shipping calculated at checkout.
Shipping time
Shipping time:

4-6 working days

The SkyDroid C11 is a compact 4K camera with an industrial-grade 3-axis stabilized gimbal. It uses an 8MP 1/2.8-inch image sensor to record 4K video locally while simultaneously streaming a 720p H.265 RTSP feed via a LAN connection.

Designed for drones, UAVs, and robotic platforms, the C11 supports a 12V to 80V input voltage range. It features one-click positioning controls and allows for standard or inverted (hoist) mounting.

Key Features:

  • 3-Axis Gimbal: Active stabilization across pitch, roll, and yaw axes to minimize image jitter.
  • 4K Local Recording: Captures 3840x2160 video at 30fps and 8MP still images directly to a local MicroSD card.
  • 720p LAN Streaming: Outputs a real-time 1280x720 H.265 RTSP video stream via the LAN interface.
  • 30x Digital Zoom: Magnifies distant subjects for detailed aerial inspection tasks.
  • Flexible Mounting: Supports both standard upright and inverted (hoist) mounting orientations.
  • Wide Voltage Input: Operates on a broad DC 12V to 80V power supply for direct connection to various systems.
Specifications
  • Model: SkyDroid C11
  • Sensor: 1/2.8-inch CMOS
  • Lens Resolution: 8MP
  • Aperture: F2.0
  • Focal Length: 3.1mm
  • Field of View: 105° HFOV / 58° VFOV / 122° DFOV
  • Zoom: 30x Digital Zoom
  • Card-Recorded Video: 3840x2160 @ 30fps (TS format)
  • Photo Resolution: 3840x2160 (JPG format)
  • Image Transmission: 1280x720 (RTSP Stream H.265)
  • Interface: LAN Port (Video output and control signal input)
  • Working Voltage: 12V–80V DC
  • Working Current: 245mA at 12V
  • Controllable Angle: Pitch -90° to +10° / Yaw -90° to +90°
  • Position Controls: One-click back, down, and head up
  • Mounting Modes: Standard, Hoist / Upside-down
  • Operating Temperature: -10°C to +55°C
  • Supported Storage: FAT32 (MicroSD up to 32GB)
  • Dimensions: 61.6 x 63.8 x 84.2mm (including shock-absorber plate)
  • Weight: 106g (including shock-absorber plate)
Includes

1x SkyDroid C11 4K 3-Axis Stabilized Gimbal Camera
4x Fixing screw (M2.5x6)
1x Ethernet power cable
1x 32GB Kingston memory card
1x Card reader
1x Serial cable
