FPV Thermal camera Partizan T640

FPV Thermal camera Partizan T640

Regular price €1.044,95
Regular price Sale price €1.044,95
Sale Sold out
Taxes included. Shipping calculated at checkout.
Shipping time
Shipping time:

4-6 working days

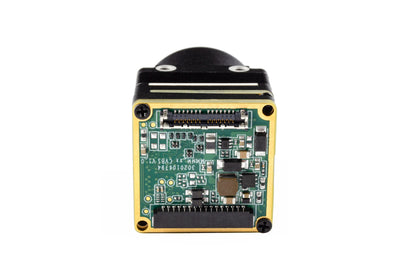

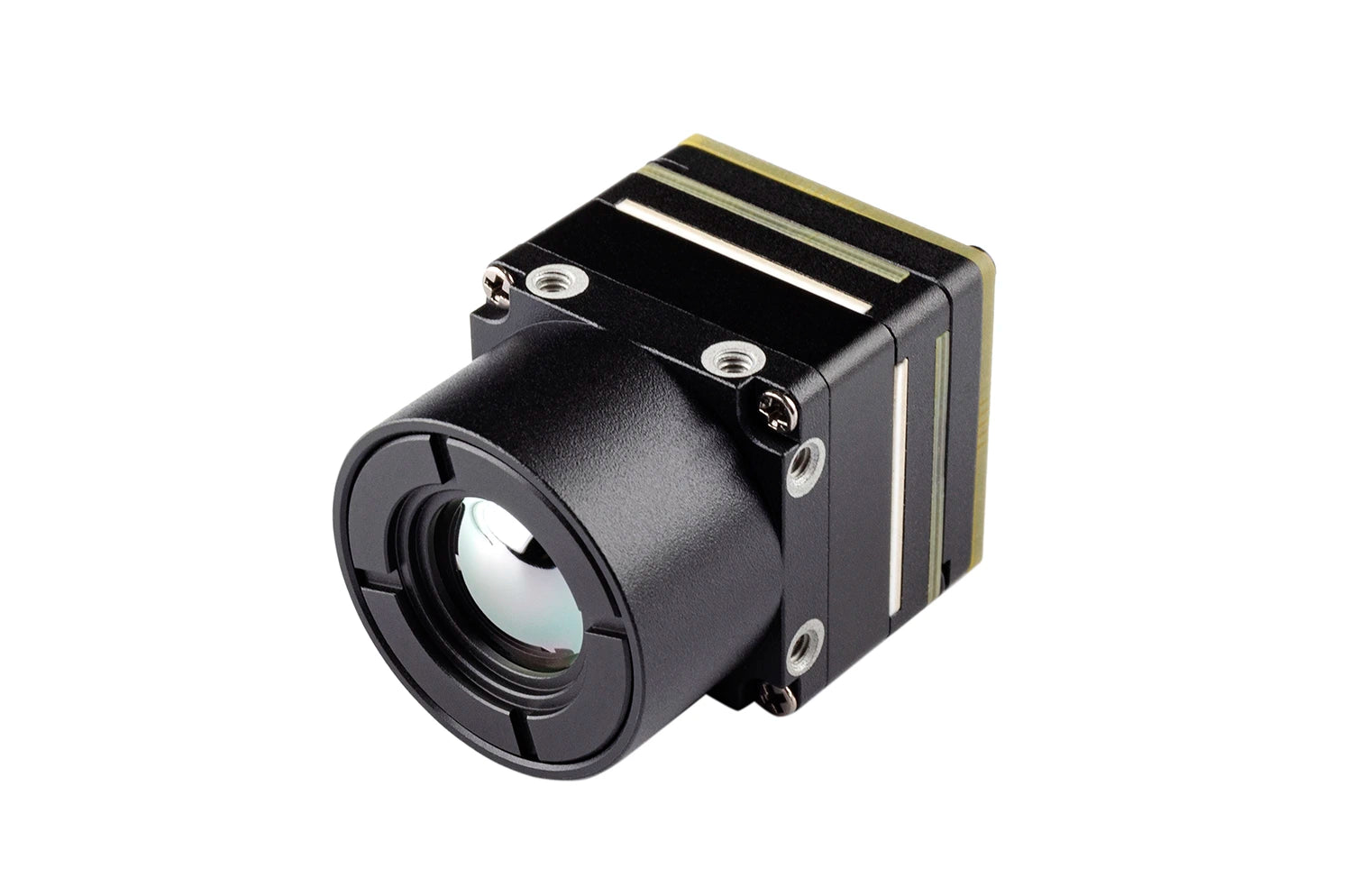

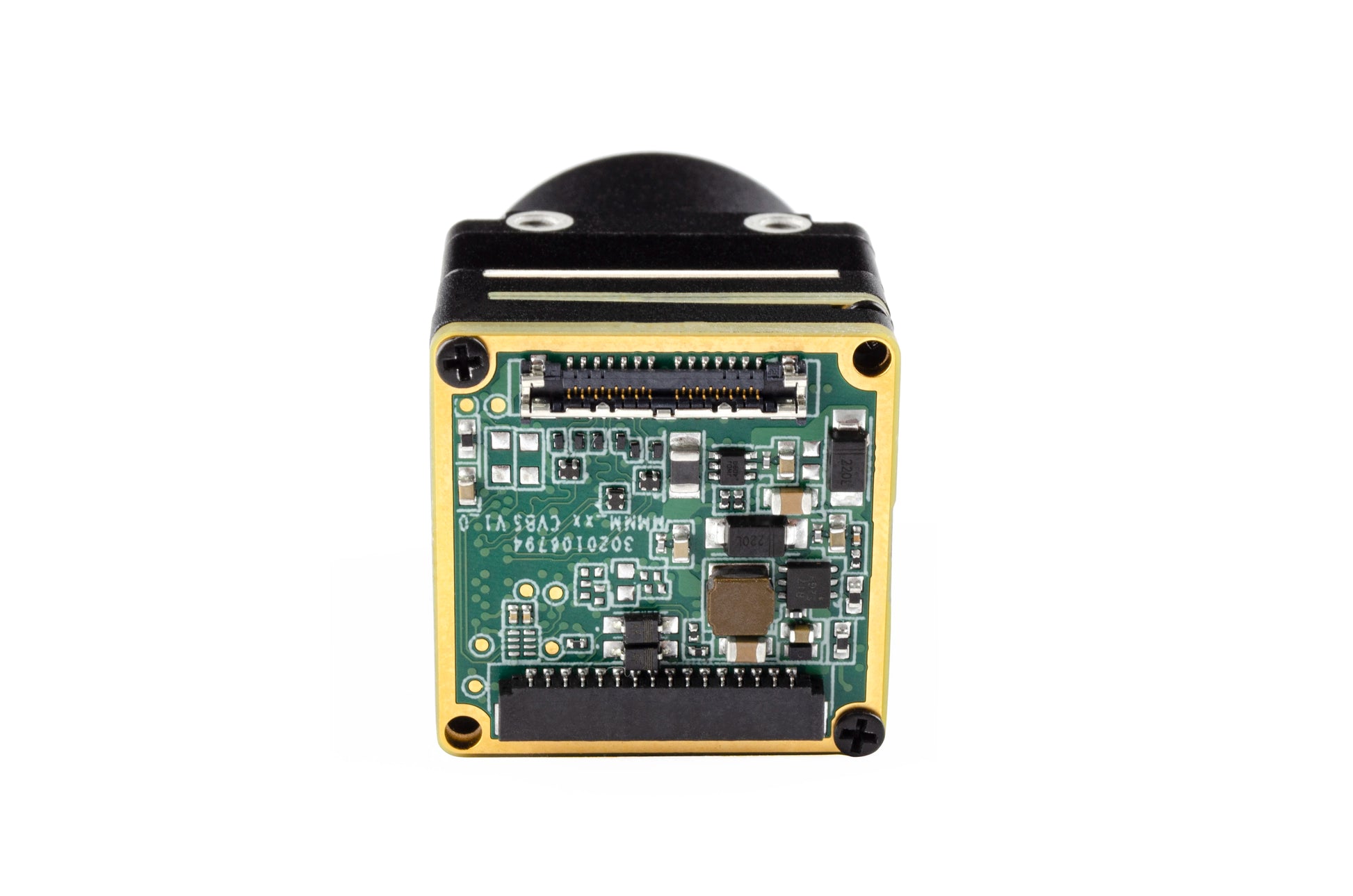

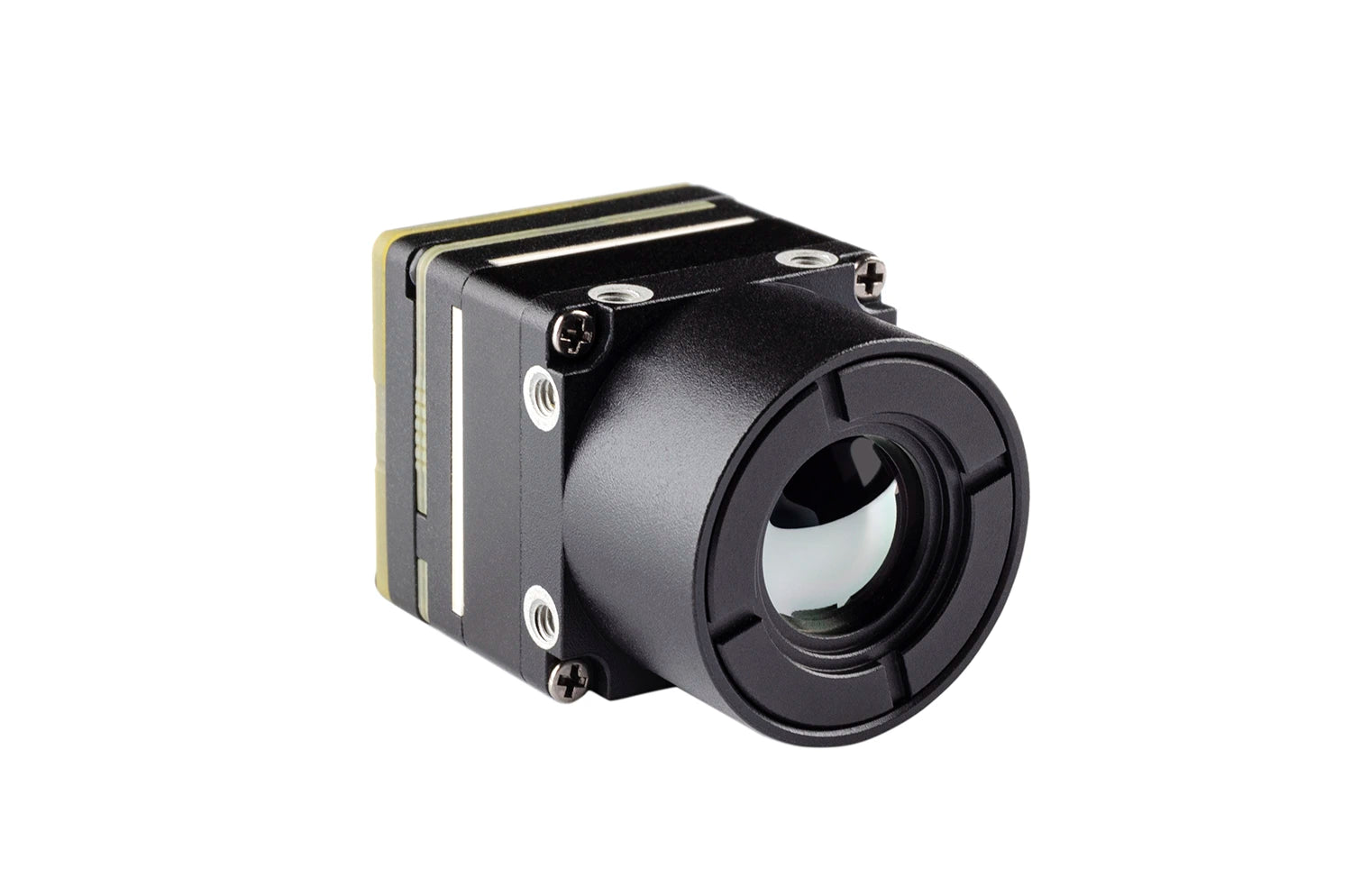

The Partizan Thermal T640 FPV Camera is a cutting-edge thermal imaging solution specifically designed for drone applications. The camera is equipped with a 9mm lens and operates in a wavelength range of 8 to 14μm ensuring precise heat signature detection. With its resolution of 640×512, it delivers clear and accurate thermal images. The camera's robust design allows it to operate effectively in extreme temperatures, from -40℃ to +80℃, and its lightweight construction (only 20 g) ensures minimal impact on drone flight dynamics.

    Specifications

    Sensor Type: Vanadium oxide (VOx) microcalorimeter
    Maximum Image Size: 640x512 pixels
    Pixel Size: 12μm
    Response Wave Band: 8~14 μm
    NETD (Noise Equivalent Temperature Difference): ≤40mK (@25°C, F#1.0)
    Viewing Angle: 48.3°(H) x 38.6°(V), 62.4°(D)

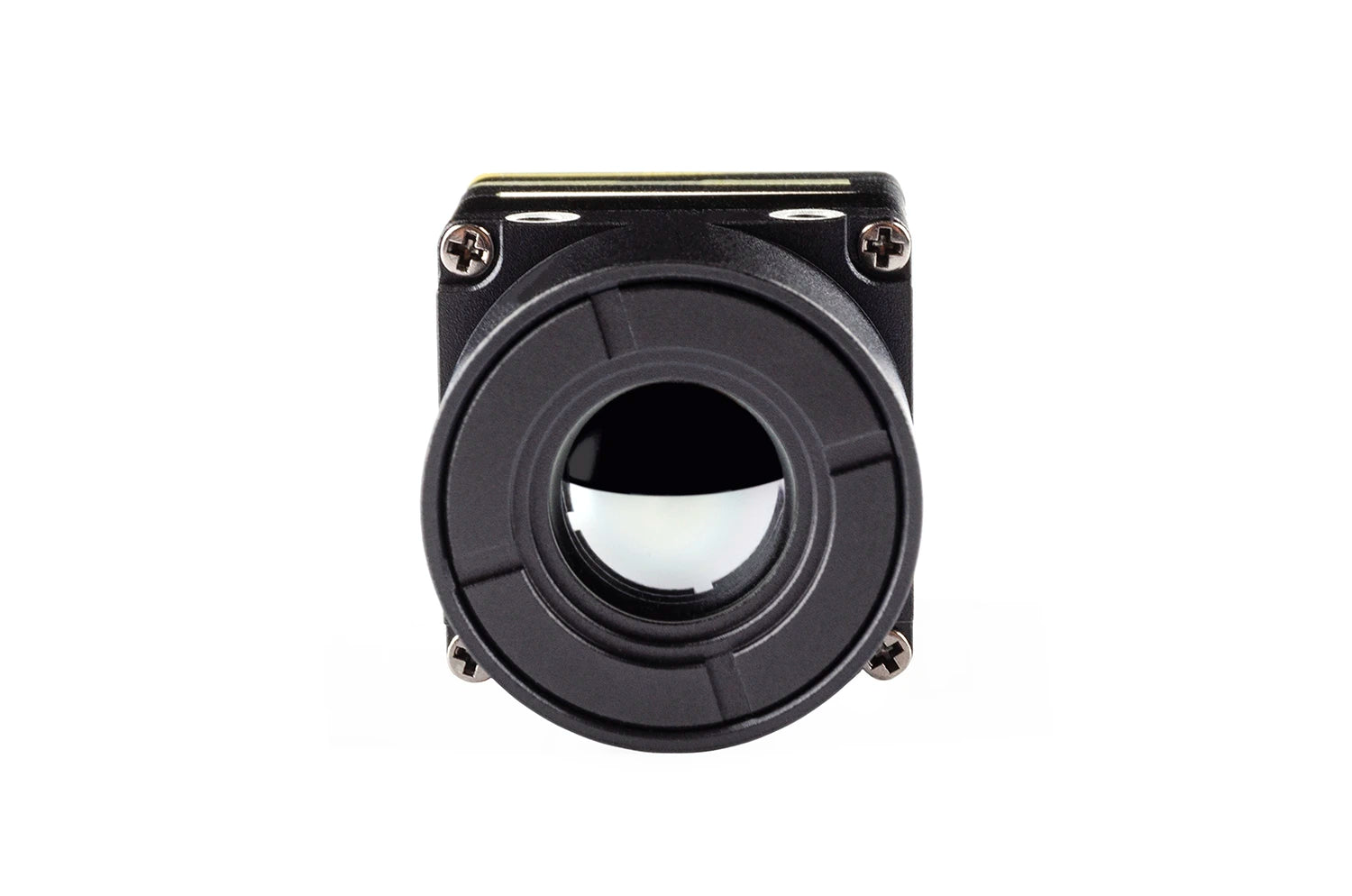

    Lens: 9.1mm
    Storage Temperature: -45°C to +75°C
    Storage Humidity: <90% RH
    Operation Temperature: -40°C to +60°C
    Operation Humidity: <90% RH
    Weight: 23g

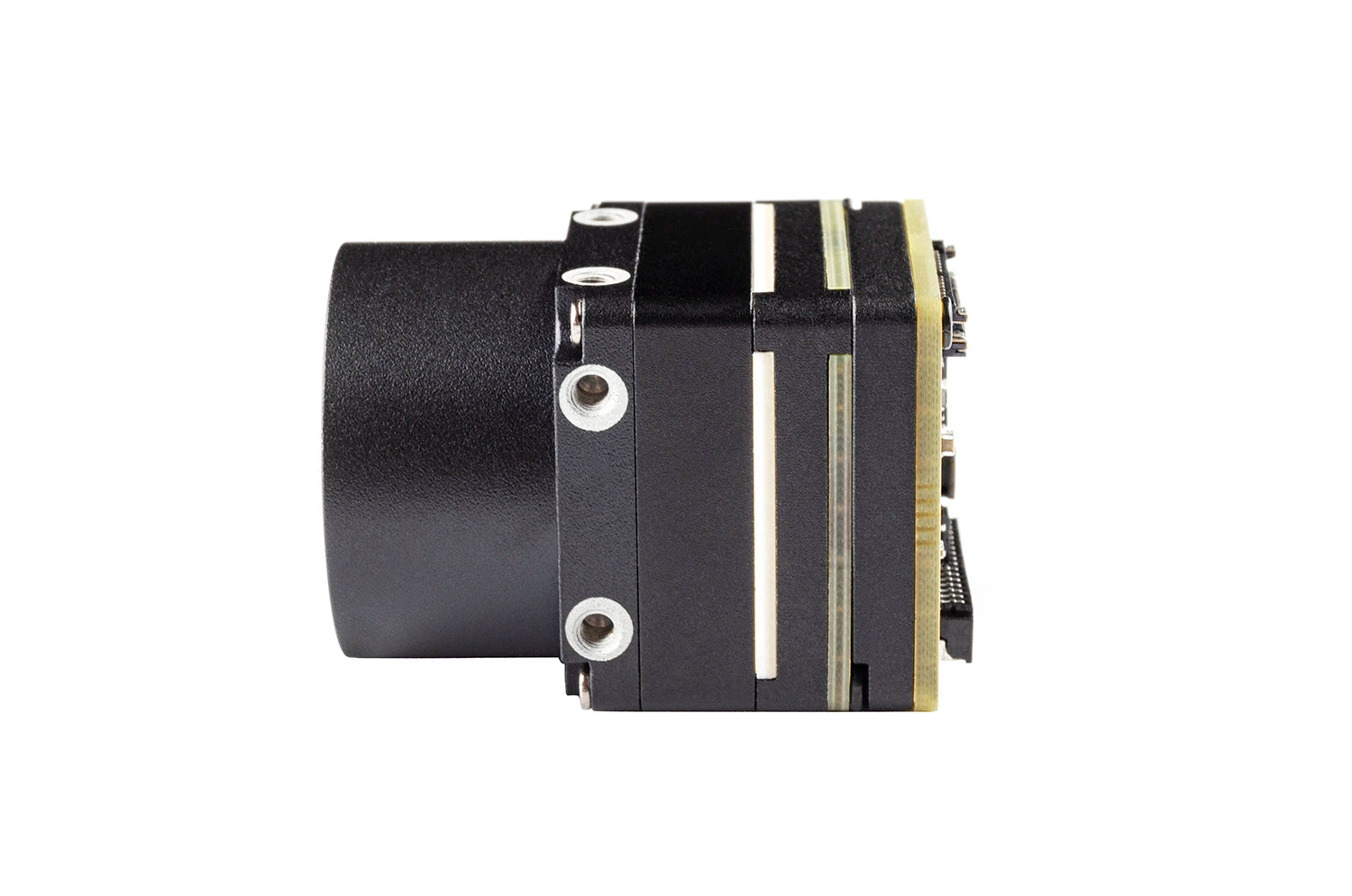

    Dimensions: 21mm x 21mm x 34mm
    Power Consumption: ≤0.8W
    DC Input: 5~12V

    Includes

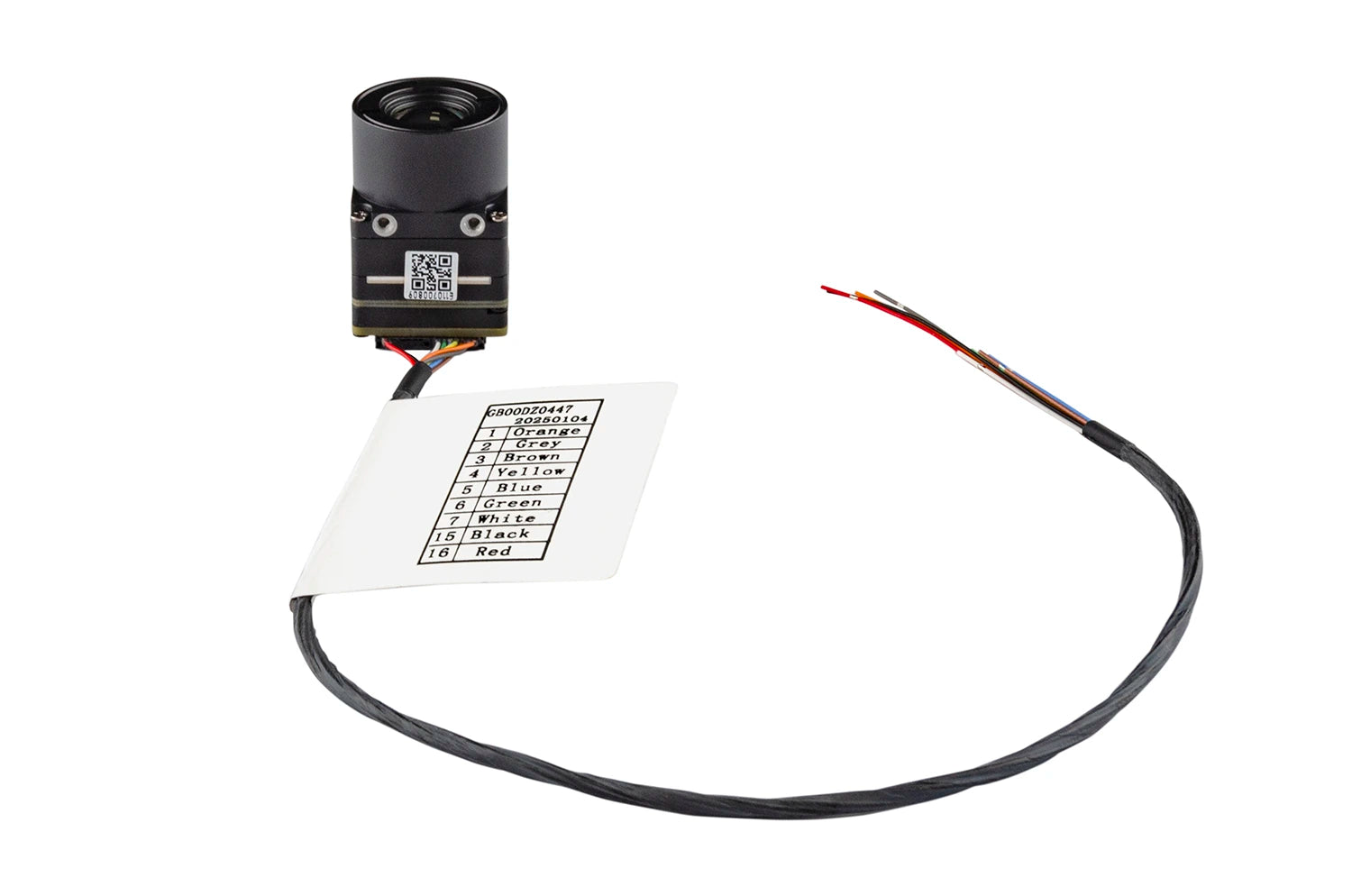

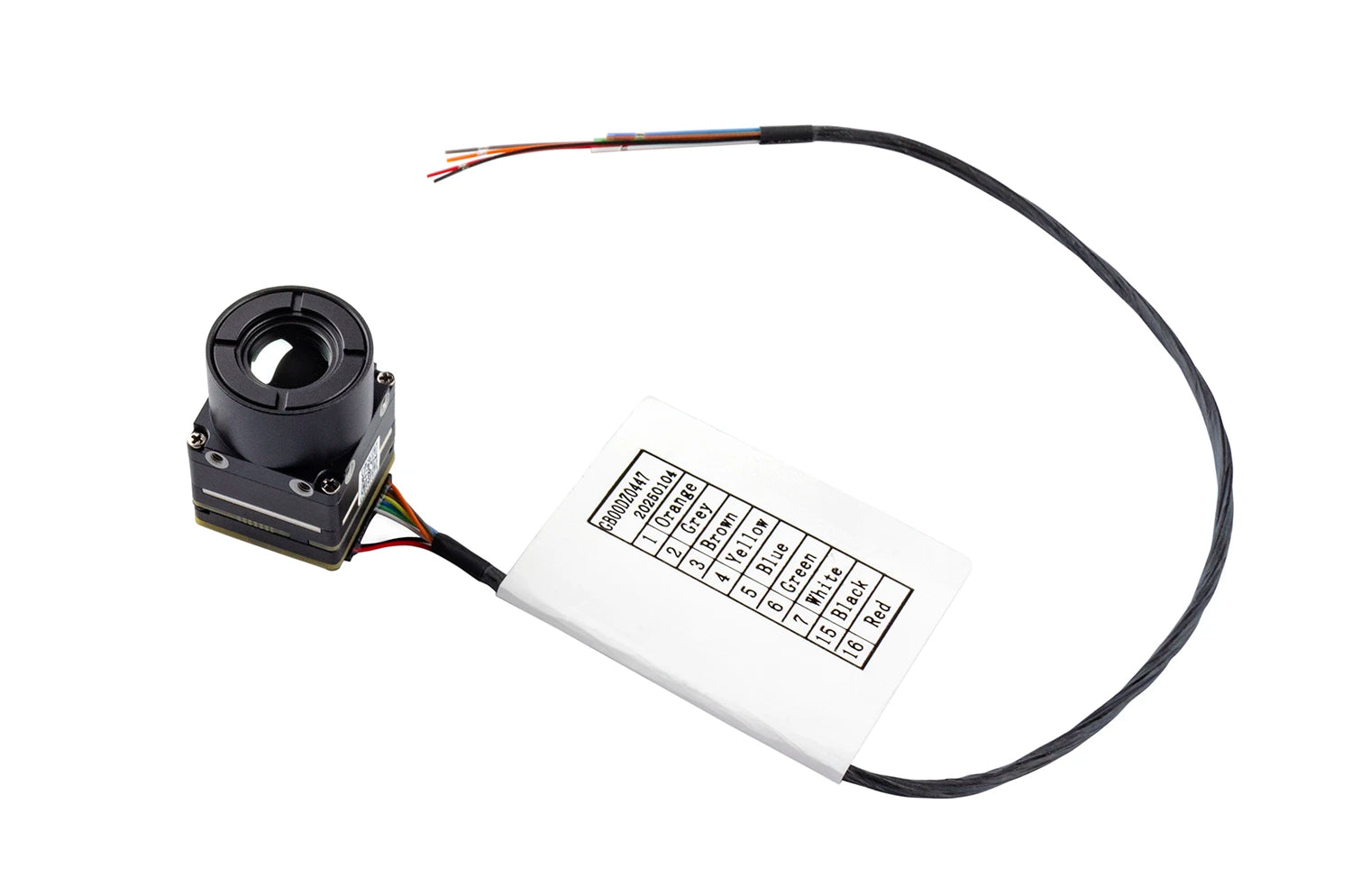

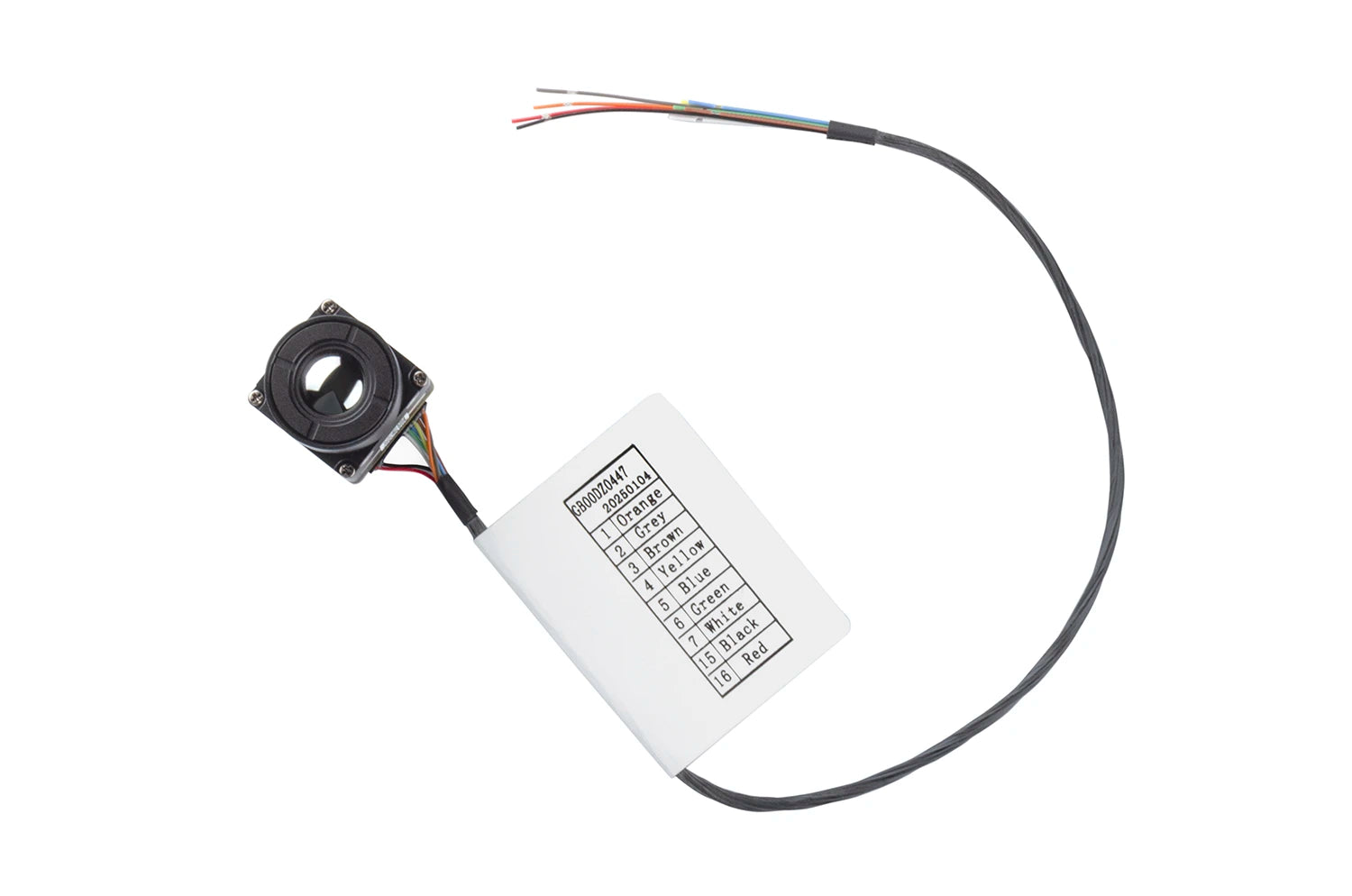

    1x FPV camera Partizan Thermal T640
