BETAFPV Pavo Pico Brushless Whoop Frame (HD Digital Version) Clear

BETAFPV Pavo Pico Brushless Whoop Frame (HD Digital Version) Clear

Regular price €11,95
Regular price Sale price €11,95
Sale Sold out
Taxes included. Shipping calculated at checkout.
Shipping time
Shipping time:

4-6 working days

Frame BETAFPV Pavo Pico Brushless Whoop (HD Digital Version)

- HD digital VTX bracket made of lightweight and tough injection-molded PP material with an adjusted structure to prevent HD VTX displacement or loss after the crash.
- The Rubber Damper Vibration damping design reduces low-frequency vibrations
- To accommodate a wider range of battery sizes, the main body of the frame can be trimmed through DIY methods. Additionally, larger batteries can be installed by using battery straps or printed components.
- The DJI O3 can be directly installed, while Avatar and Vista require a 20*20 mounting plate and screws (included) for fixation. The naked frame is suitable for users who DIY refit and assemble the HD VTX by themselves

Specifications

Item: Pavo Pico Brushless Whoop Frame With HD VTX Bracket
Wheelbase: 80.8mm
Battery Slot Size: 16mm*12.7mm
Camera Installation Spacing: 19mm/20mm
Color: Transparent
Weight: 13.80g/11.62g
Motor Mounting Hole Position: 3-M1.4-φ6.6mm
FC Pattern: 26×26mm, suitable for F4 1S 12A AIO Brushless FC V3

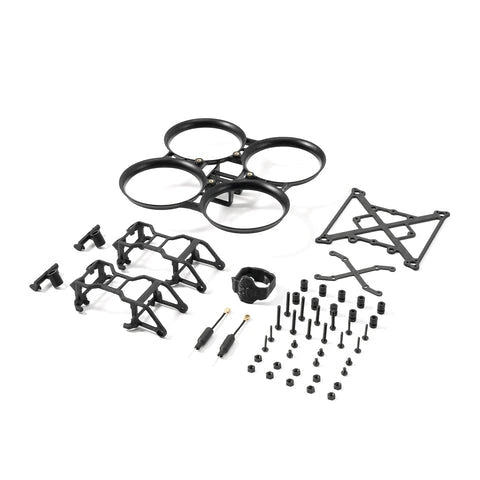

Includes

1x Pavo Pico Top Palte
1x Pavo Pico Whoop Duct
1x Frame FC Screw Package
1x HD VTX Bracket Screw Package
1x 20*20 HD VTX Mounting Plate
2x O3 HD VTX Mounting Bracket
2x O3 HD VTX Antenna Mounting Base
2x 5.8g Copper Tube Antenna
