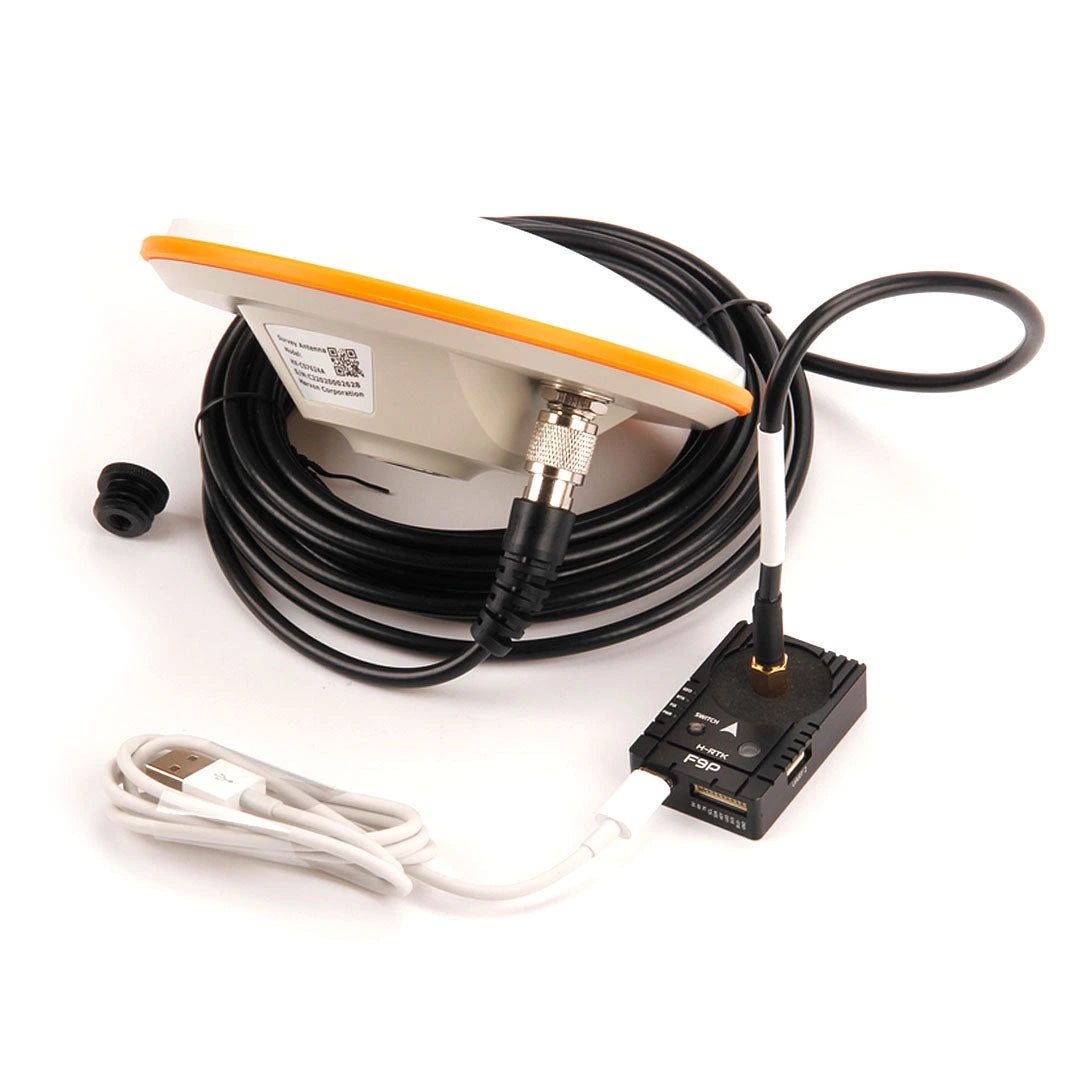

GPS Module Holybro H-RTK F9P Base

GPS Module Holybro H-RTK F9P Base

€335,95
€335,95
Sale Sold out
Taxes included. Shipping calculated at checkout.
Shipping time
Shipping time:

4-6 working days

The Holybro H-RTK F9P Base is a high-precision differential GNSS positioning system designed specifically to operate as a ground base station for RTK-enabled UAVs and robotics. Powered by the industry-standard u-blox ZED-F9P module, it tracks four major satellite constellations concurrently (GPS, GLONASS, Galileo, BeiDou) to deliver rapid convergence times, fast update rates, and reliable centimeter-level positioning accuracy.

Key Features:

  • Centimeter-Level Base Station Performance: Powered by the u-blox ZED-F9P multi-band RTK engine to stream high-precision correction data directly to your RTK rovers.

  • High-Gain Precision Antenna Included: Comes bundled with the CSX627A high-precision GNSS antenna featuring a 5.5 dBi peak gain and 40 dB LNA gain for clean signal reception.

  • Rapid Survey-In Time: Achieves RTK Survey-In in under 5 minutes (@ 1.5 m CEP), allowing fast field deployment.

  • Versatile Connectivity Options: Features a USB Type-C port for PC setup, along with GH1.25 10-pin and UART2 ports for flexible telemetry and ground station integration.

  • Integrated Status & Control: Includes a tri-color LED status indicator and an integrated safety switch for clear visual monitoring and convenient operation.

Specifications
  • Application: Base station only
  • GNSS (GPS): L1C/A, L2C
  • GNSS (GLONASS): L1OF, L2OF
  • GNSS (BeiDou): B1, B2H
  • GNSS (Galileo): E1-B/C, E5b
  • Antenna Peak Gain (MAX): 5.5 dBi
  • LNA Gain (typical): 40 ±2 dB
  • Time-To-First Fix (Cold start): ≤ 24 s
  • Time-To-First Fix (Hot start): ≤ 1 s
  • RTK Survey-In Time: ≤ 5 minutes @ 1.5 m CEP
  • RAW Update Rate: 20 Hz Max
  • RTK Update Rate: 8 Hz Max
  • Moving Base RTK Update Rate: 5 Hz Max
  • Port 1: GH1.25 10-pin
  • Port 2: USB Type-C
  • Port 3: UART 2 (GH1.25 6-pin)
  • Antenna Connection Type (Board): SMA female
  • Antenna Connection Type (Antenna): TNC female
  • Cable Length: 5 m (Male-Male SMA-TNC)
  • Baud Rate: 115200 5 Hz (default, configurable)
  • Working Voltage: 4.75V~5.25V
  • Current Consumption: ~250 mA
  • Board Dimensions: 34.8 x 52.7 x 12.9 mm
  • Antenna Dimensions: 152 mm (Diameter) x 62.2 mm (Height)
  • Total Weight: 469 g

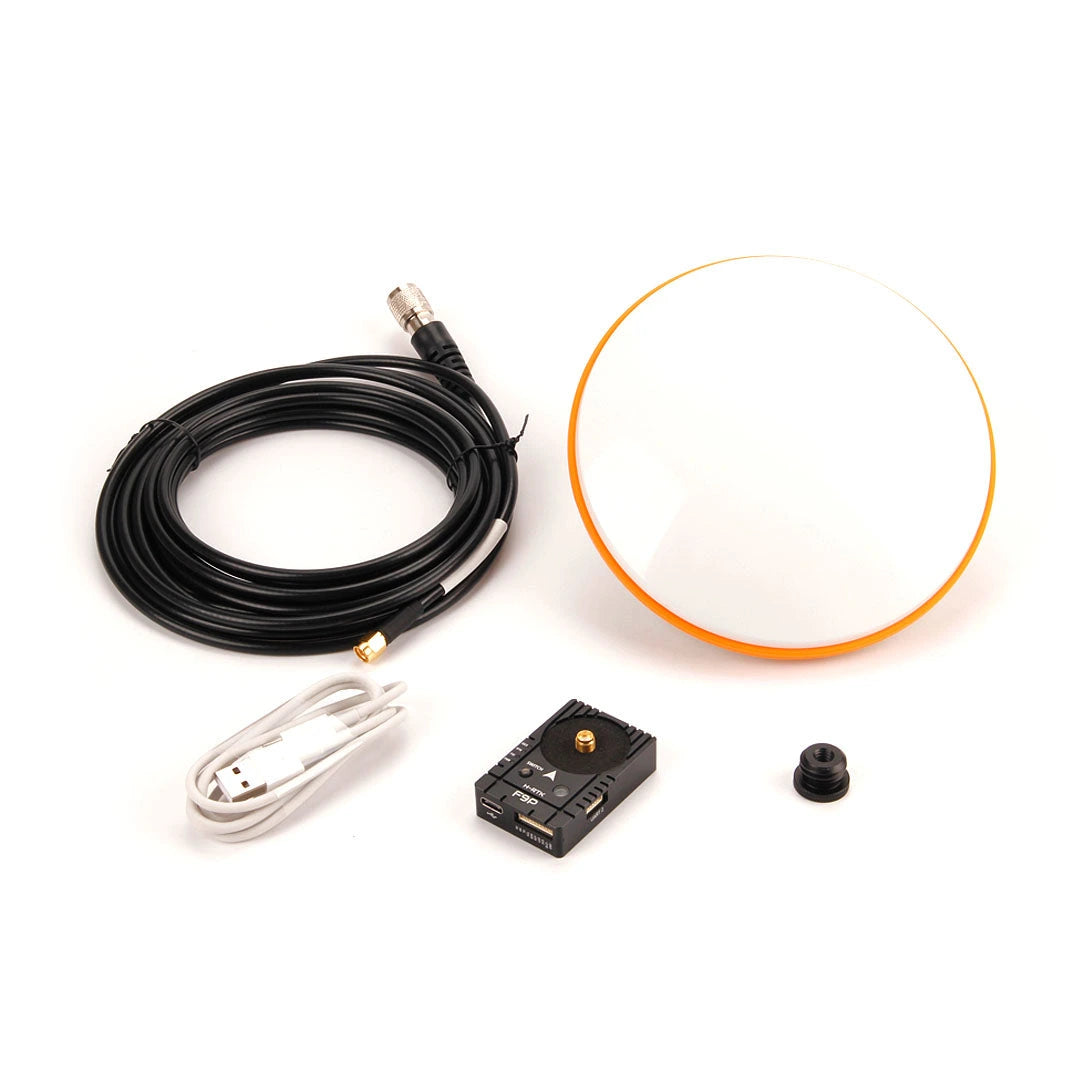

Includes
  • 1 x Holybro H-RTK F9P Base Module
  • 1 x High-Precision CSX627A GNSS Antenna
  • 1 x 5m Male-to-Male SMA-TNC Antenna Cable
