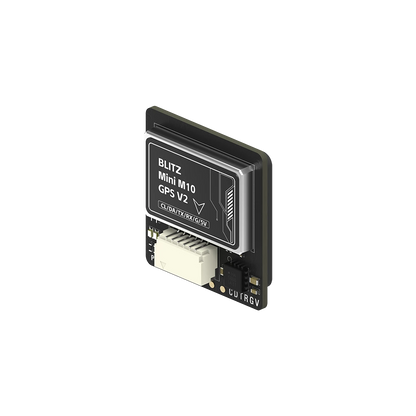

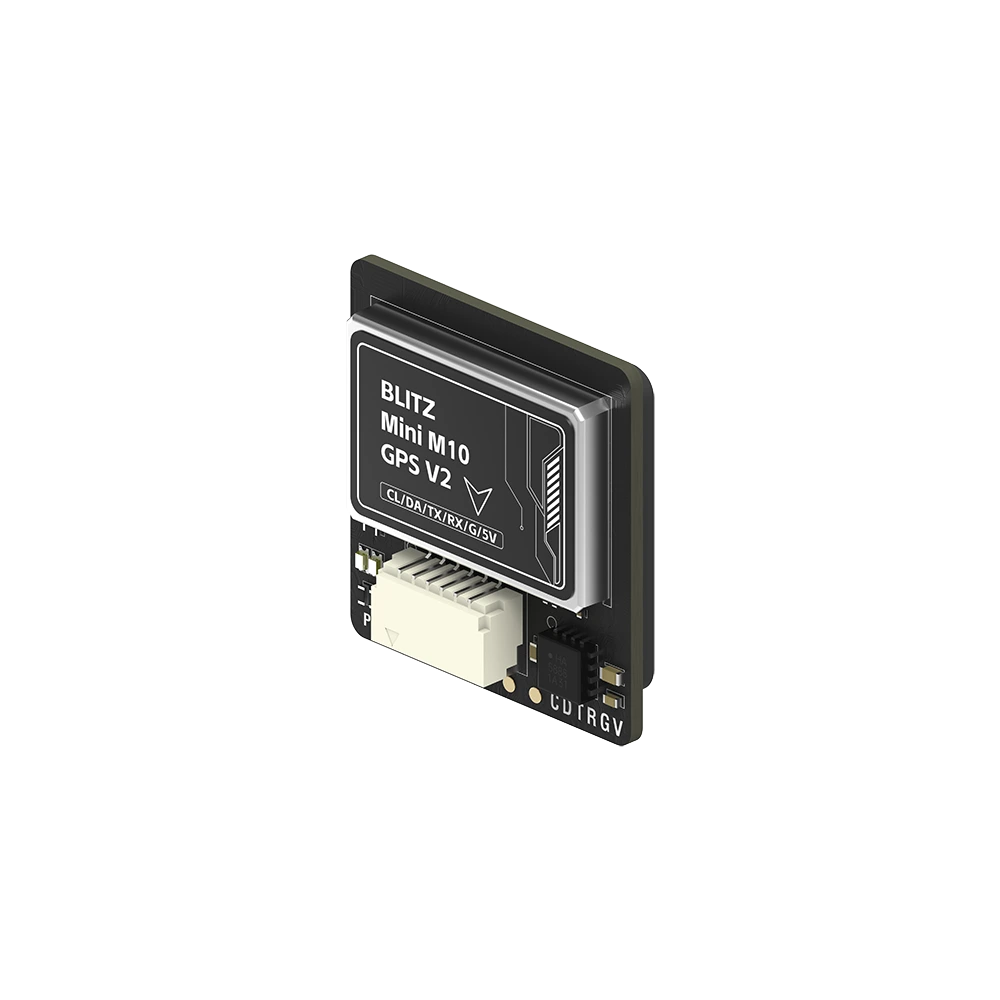

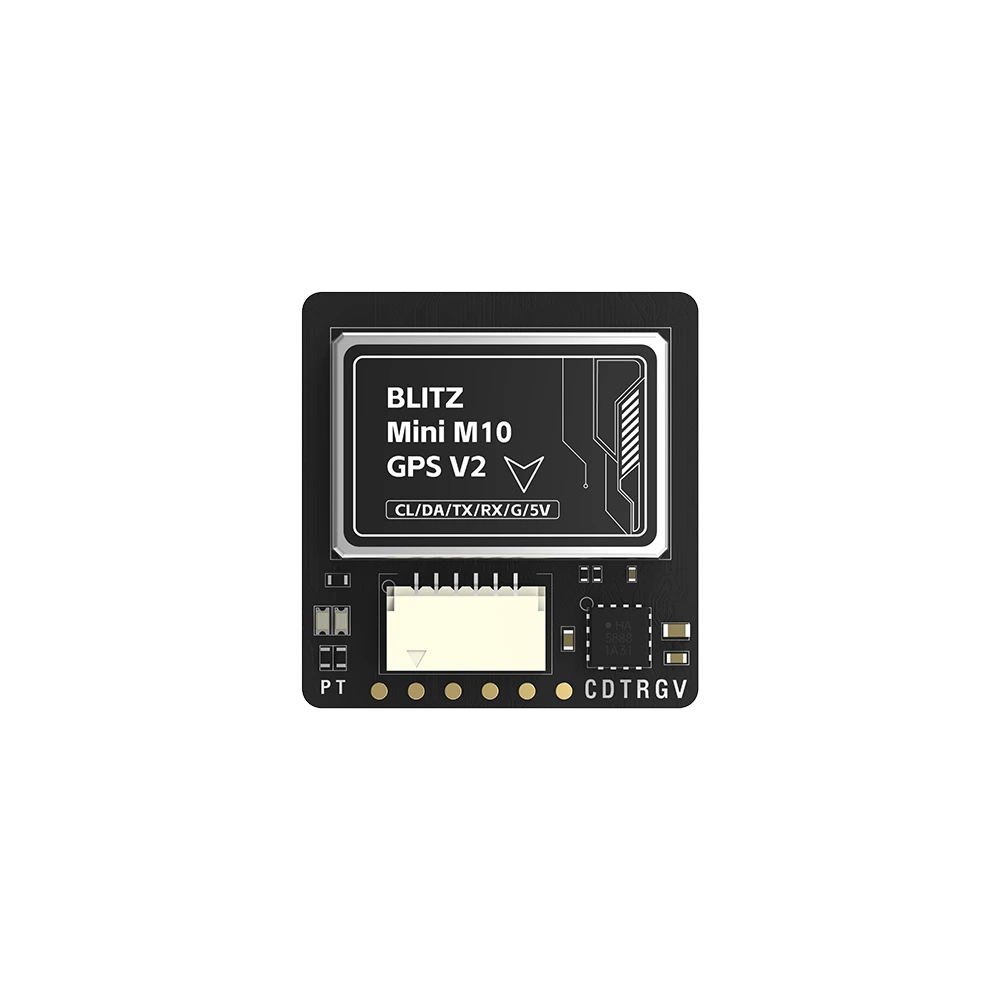

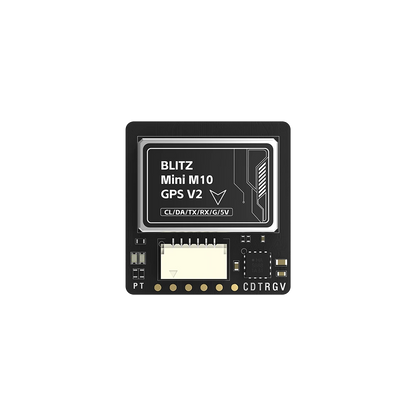

GPS Module iFlight BLITZ Mini M10 GPS V2

GPS Module iFlight BLITZ Mini M10 GPS V2

€43,95
€43,95
Sale Sold out
Taxes included. Shipping calculated at checkout.
Shipping time
Shipping time:

4-6 working days

The BLITZ Mini M10 GPS V2 delivers faster, highly stable satellite search capabilities for precision flight navigation. Engineered around the UBLOX M10 chip, this upgraded GPS module provides high-precision positioning with low power consumption and a reliable signal lock. The built-in farad capacitor ensures rapid hot starts, while the onboard noise amplifiers and filters guarantee clean RF performance in challenging environments.



Mini Version compatibility

With Single-hole TPU mount: Chimera7 Pro v2, iH3 O3, Nazgul Evoque F4/F5/F6, XL10 v6, BOB57 HD.

With Dual hole TPU mount: Nazgul5 V3, Taurus X8 Pro/V3, ProTek60 Pro.

GPS TPU mount is not required: Helion 10.

Specifications
  • Chipset: UBLOX M10
  • Compass module: QMC5883L
  • Baud Rate: 9600-460800 / 4800bps-921600bps (Default - 115200bps)
  • Sensitivity: Tracking: -167dBm Cold start: 27s
  • Hot start: 1s
  • Maximum height: 80000m
  • Maximum speed: 500 m/s
  • Speed accuracy: 0.05 m/s
  • Maximum acceleration: ≦ 4G
  • Refresh Rate: 10 Hz
  • GPS patch antenna size: 18.2 x 18.2 x 4 mm
  • Total dimensions: 20 x 21 x 8 mm
  • Weight: 8g
  • Input Voltage: 3.3-5.5 V
  • GPS pin definition: RX/TX UART
  • Compass pin definition: SDA/SLA
  • GNSS: GPS+SBAS+Galileo+QZSS+Glonass
Includes
  • 1 x BLITZ Mini M10 GPS V2
  • 1 x Cable set
