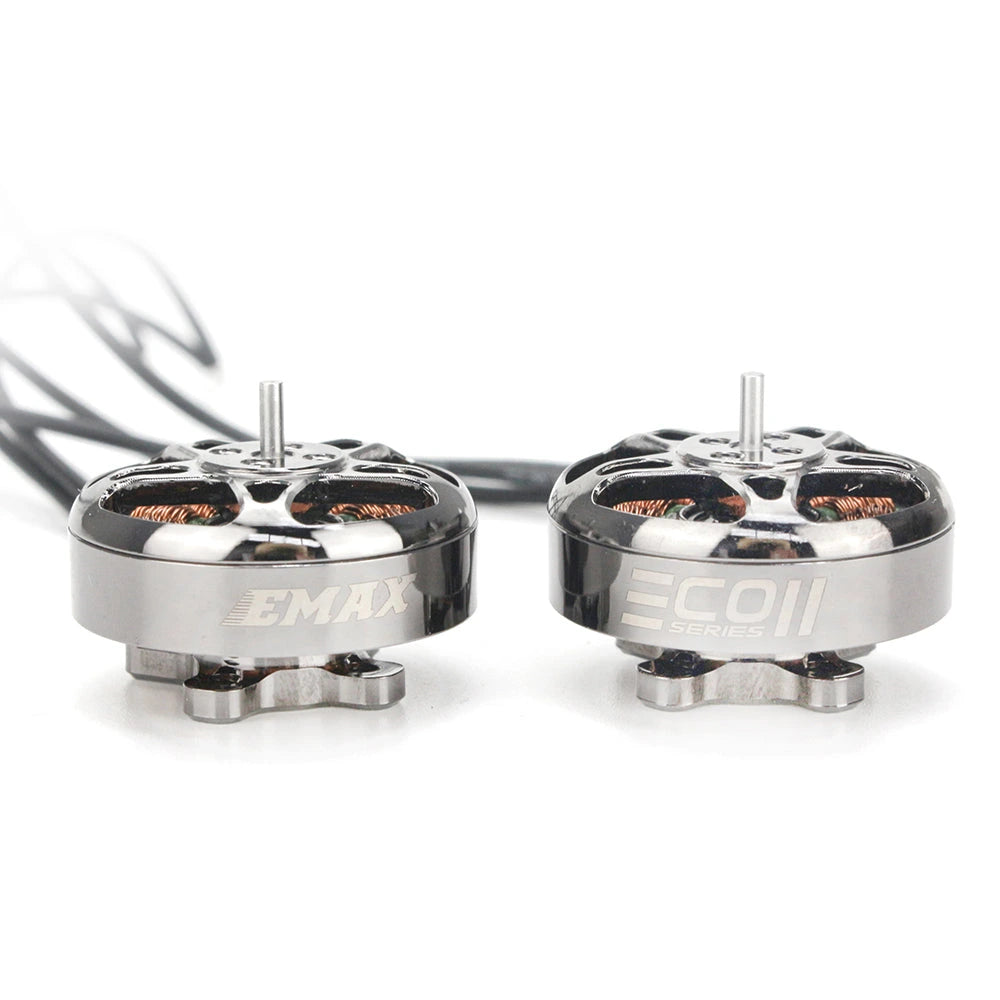

Emax ECOII 2004 3000KV
Emax ECOII 2004 3000KV
Couldn't load pickup availability
4-6 working days
ECOII 2004 3000KV
The ECO II Series is a new line of brushless motors with improved performance and durability while retaining the same affordability. The ECO II utilizes precision NSK bearing for smooth operation and N52SH arc magnets over prior N48 magnets allowing more powerful throttle response and higher RPMs to be achieved. More torque and thrust are generated, allowing pilots the flexibility to comfortably on any racetrack. The ECO II series offers four variations: 1600KV, 2000KV, 2400KV, and 3000KV.
Features:
- A brand-new design with stronger attachment points for increased durability.
- Upgraded N52SH curved arc magnets for tighter airgap and better performance.
- 12x12mm motor mounting.
Specifications
Motor KV: 3000KV
Length: 19.2 mm
Diameter: 24.7 mm
Framework: 12N14P
Prop Adapter Shaft Diameter: 1.5 mm
Lead: 24#AWG 120mm
Weight: 16.4g (W/O silicone wire)
Idle Current (10V): 1.1A
Internal Resistance: 80mΩ
No. of cells: 3-6S
Propeller: 3-5 inch
Peak Current (6S): 32A
Max Power (6S): 810W
Mounting holes: M2 12x12mm

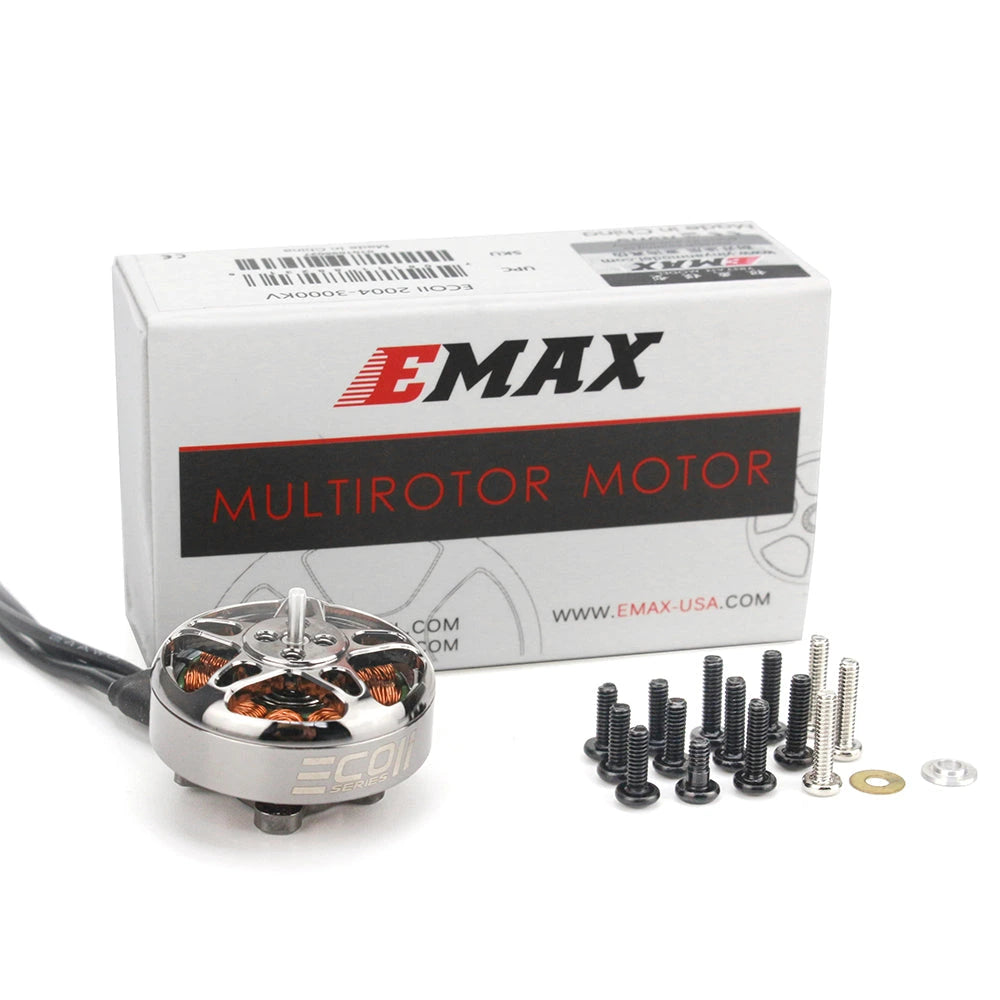

Includes
1x 2004 Motor 3000KV
5x M2*6 Screw
5x M2*7.5 Screw
3x M2*8.5 Screw
1x Washer and Screw for shaft
