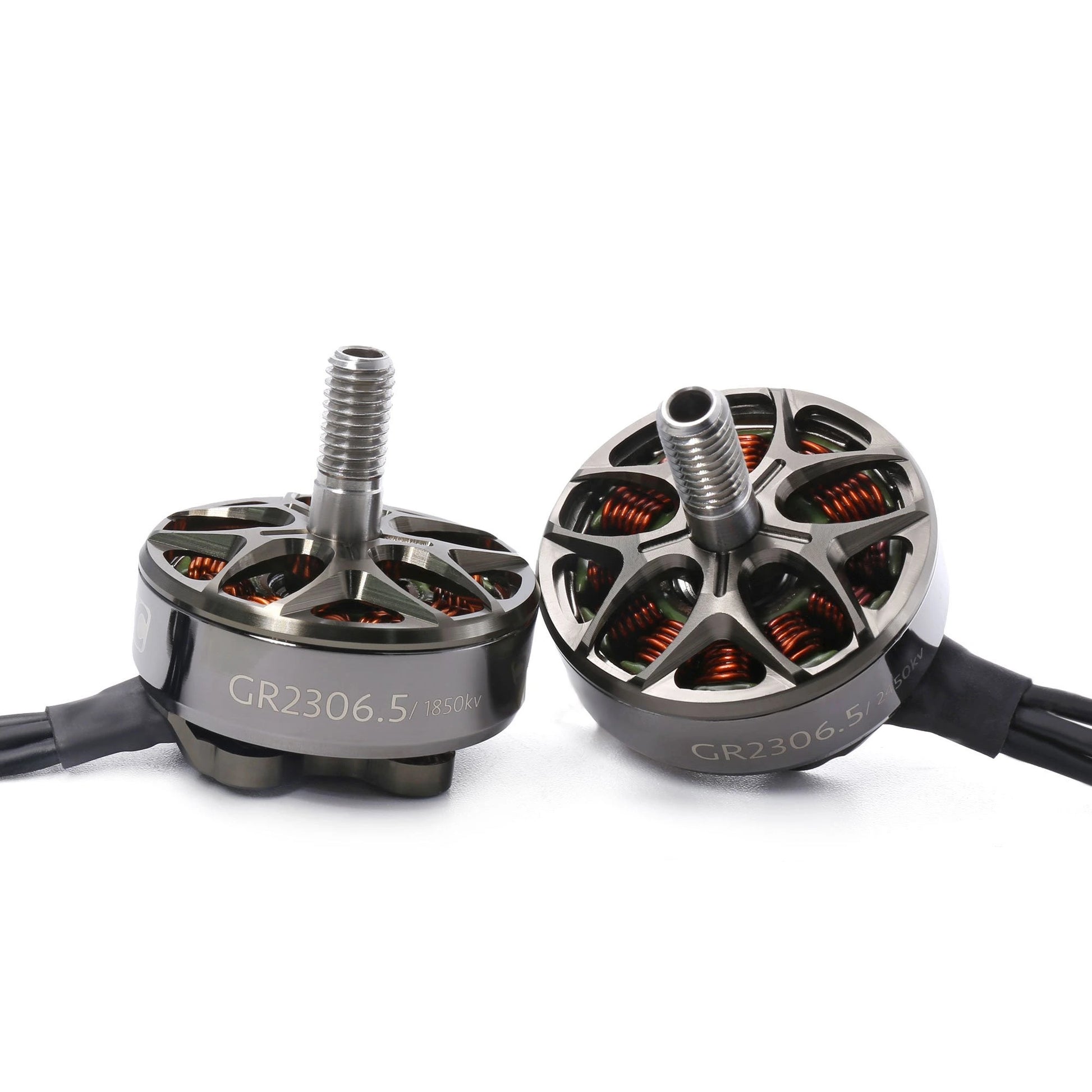

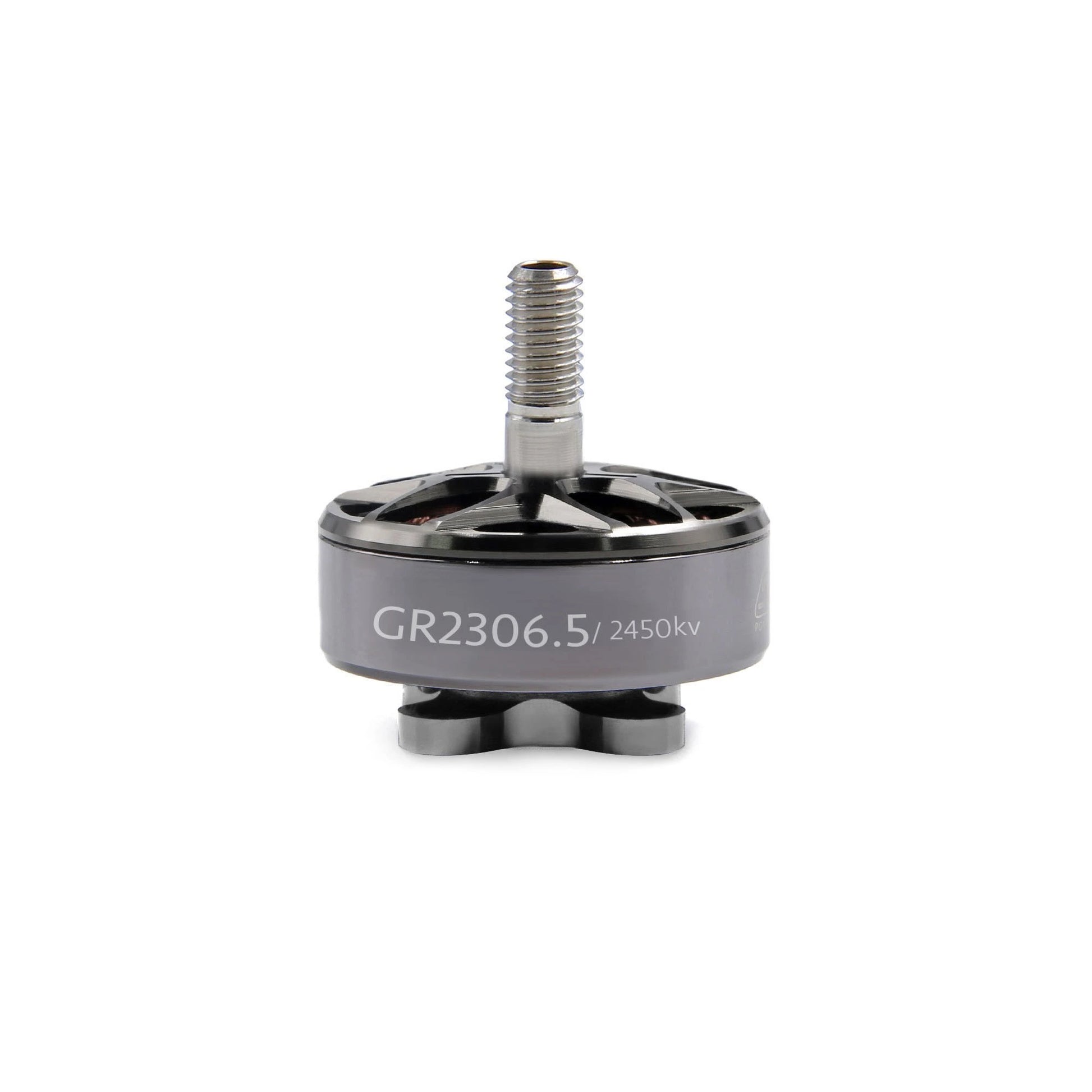

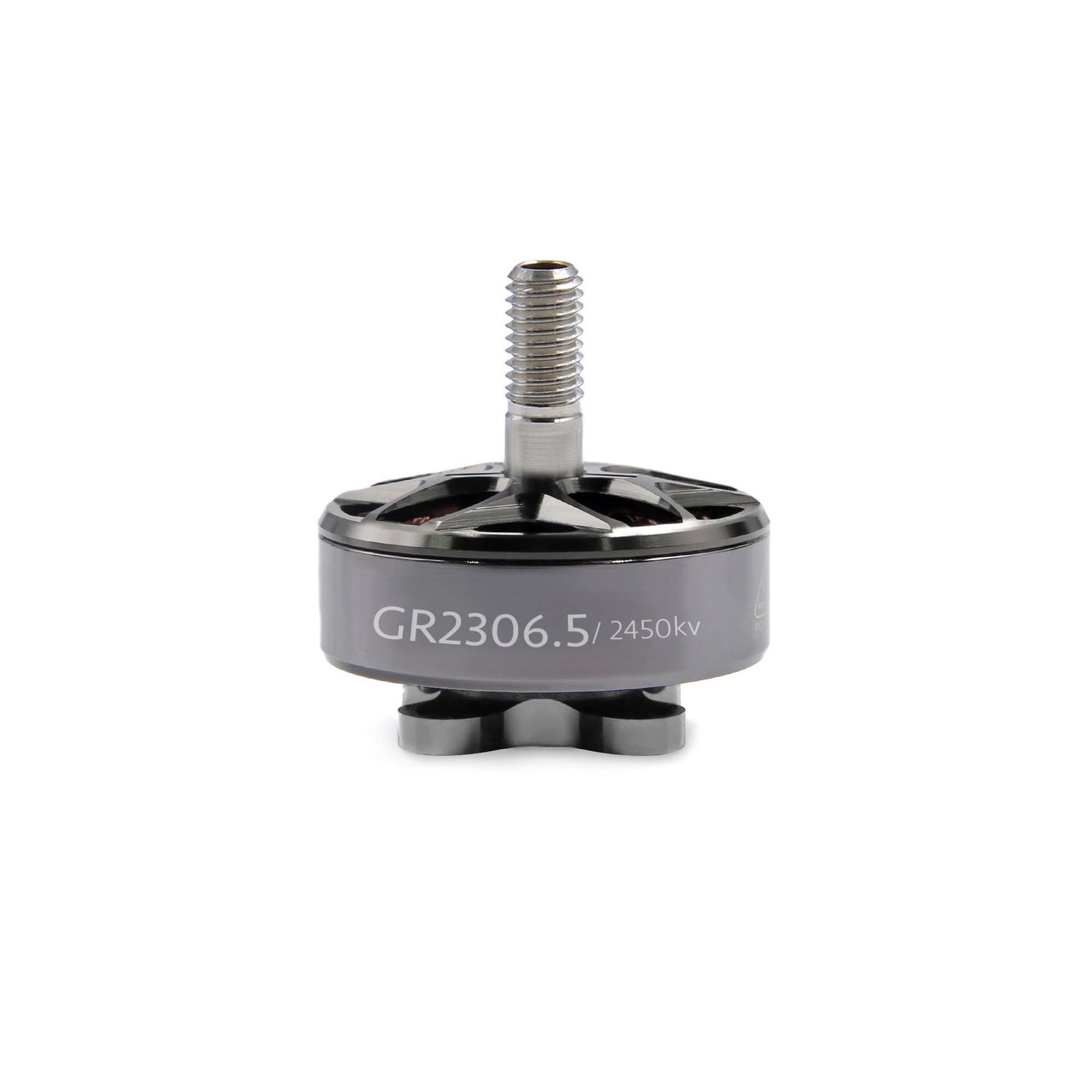

GEPRC GR2306.5 2450KV

Item name:GR2306.5 Motors
KV: 2450KV

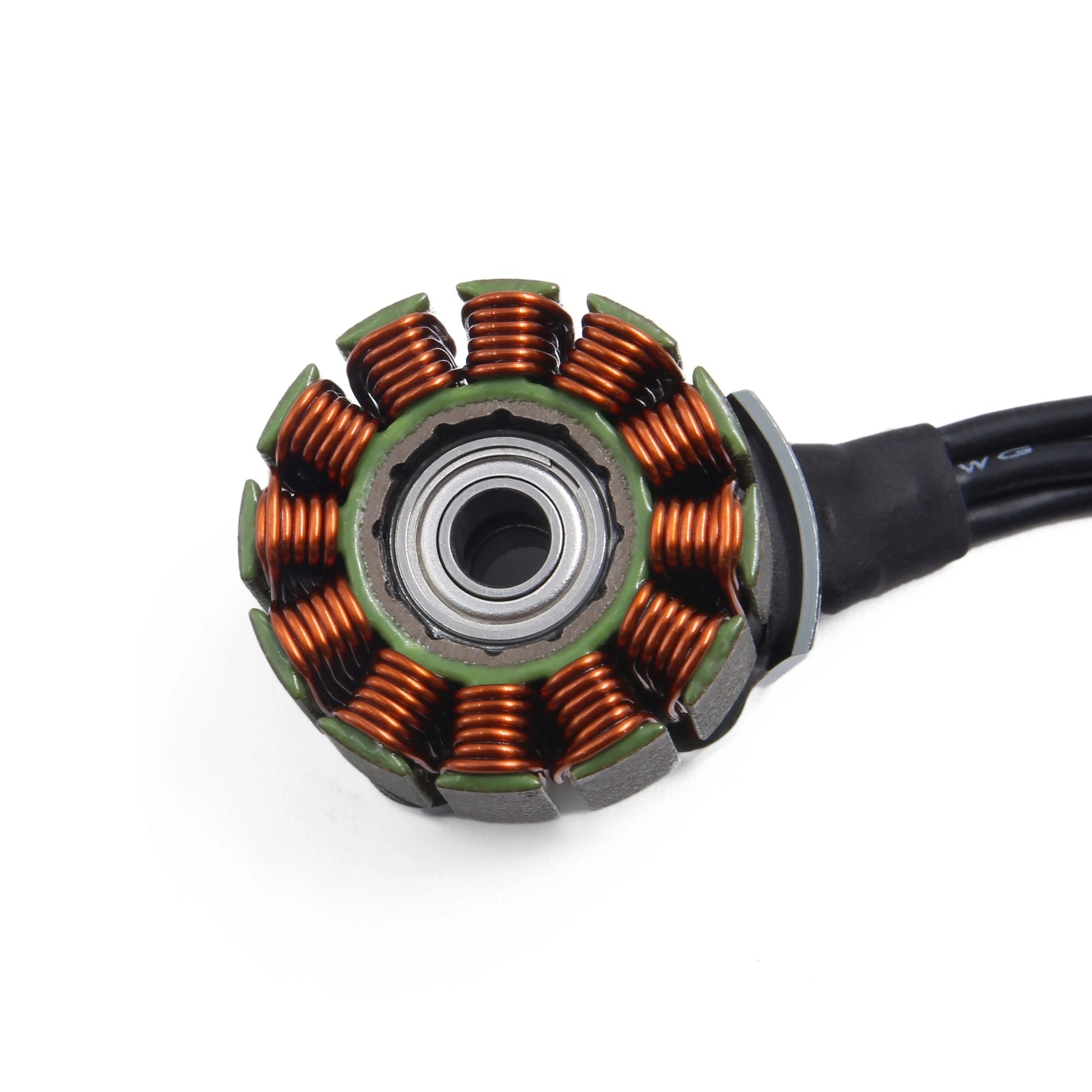

Configuration: 12N14P
Stator Diamter: 23mm
Stator Length: 6.5mm
Shaft Diameter: 4mm (Hollow)
Motor (Dimension (Dia.*Len)): Φ28.2*29.2mm
Idle current(10)@10V(A): 1.95
of Cells (Lipo): 4~5S
Max Continuous (Power (W) 15S): 1000
Internal Resistance: 38mΩ
Max Current (15S): 49A
Effciency Current: (3-7A)>85%

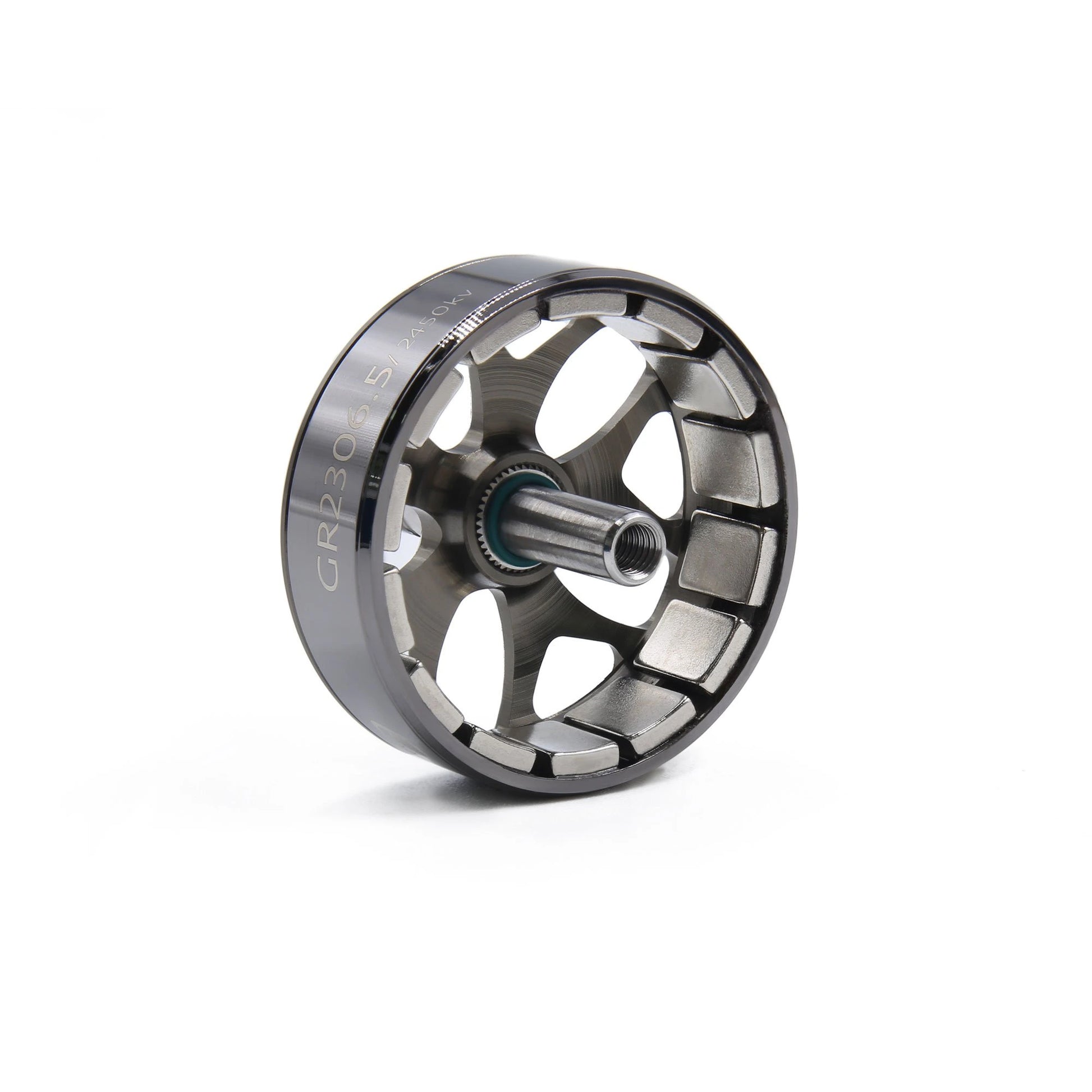

Rotor: N52H arc magnets
Bearings: JAPAN ISC
Base casing: Al 7075
Wire AWG: 20AWG
Weight(g): 31g (not include wire)
