HGLRC SPECTER 1303.5 5500KV
HGLRC SPECTER 1303.5 5500KV
Couldn't load pickup availability
4-6 working days

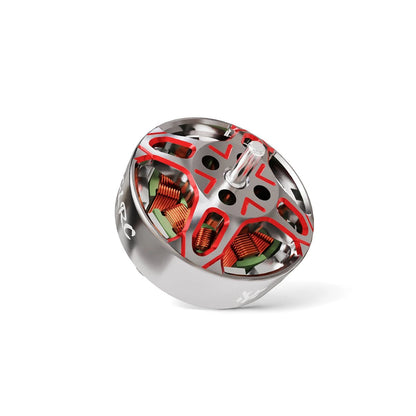

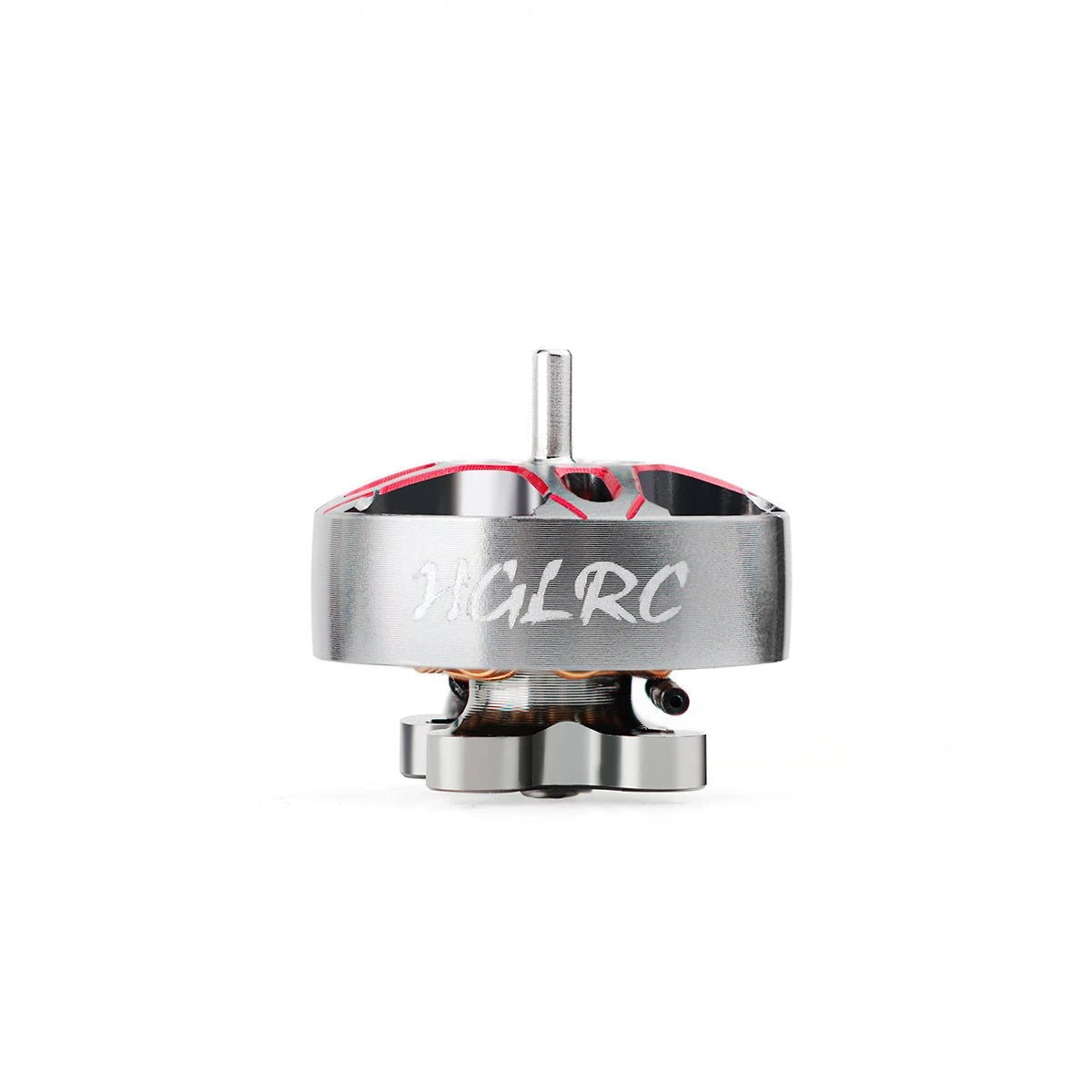

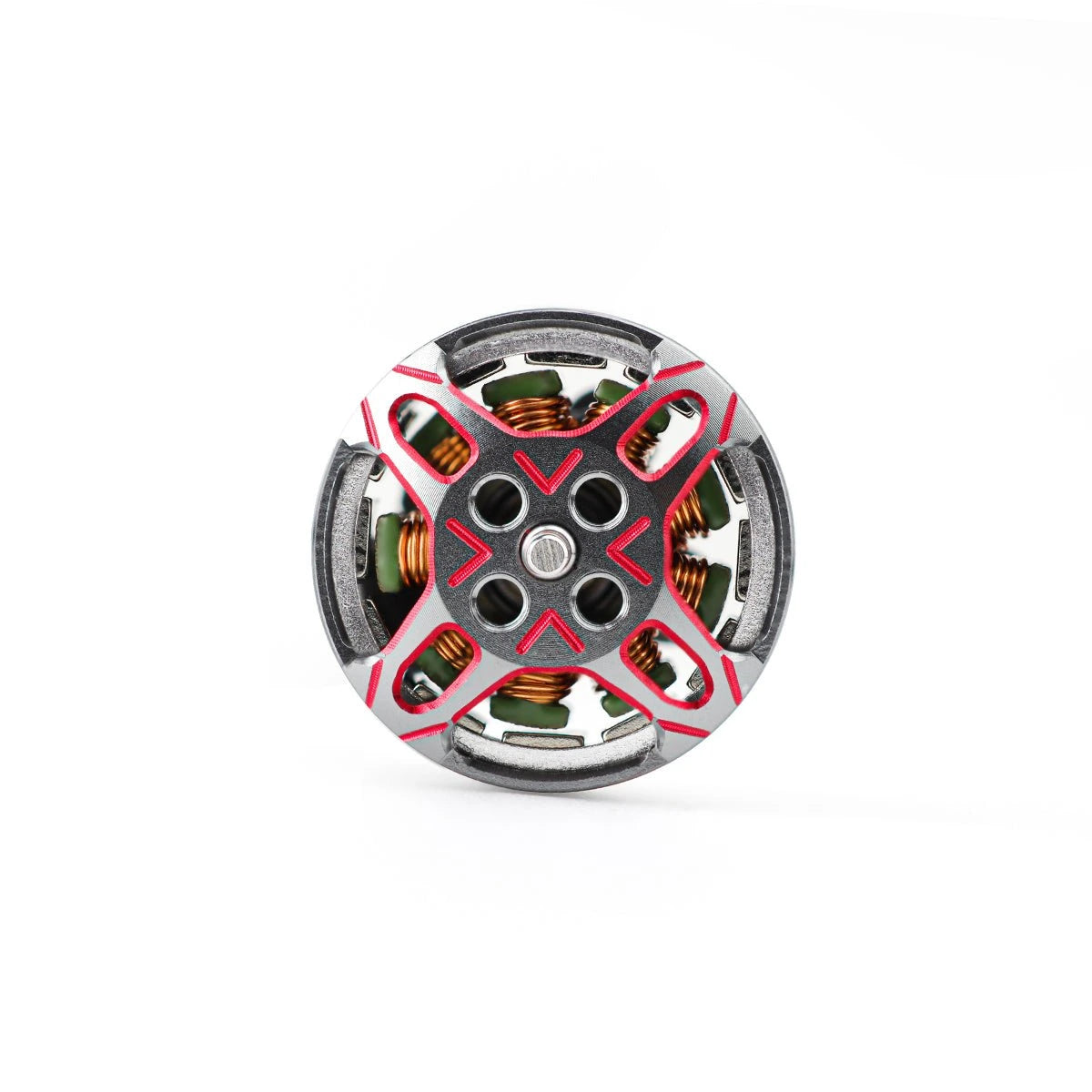

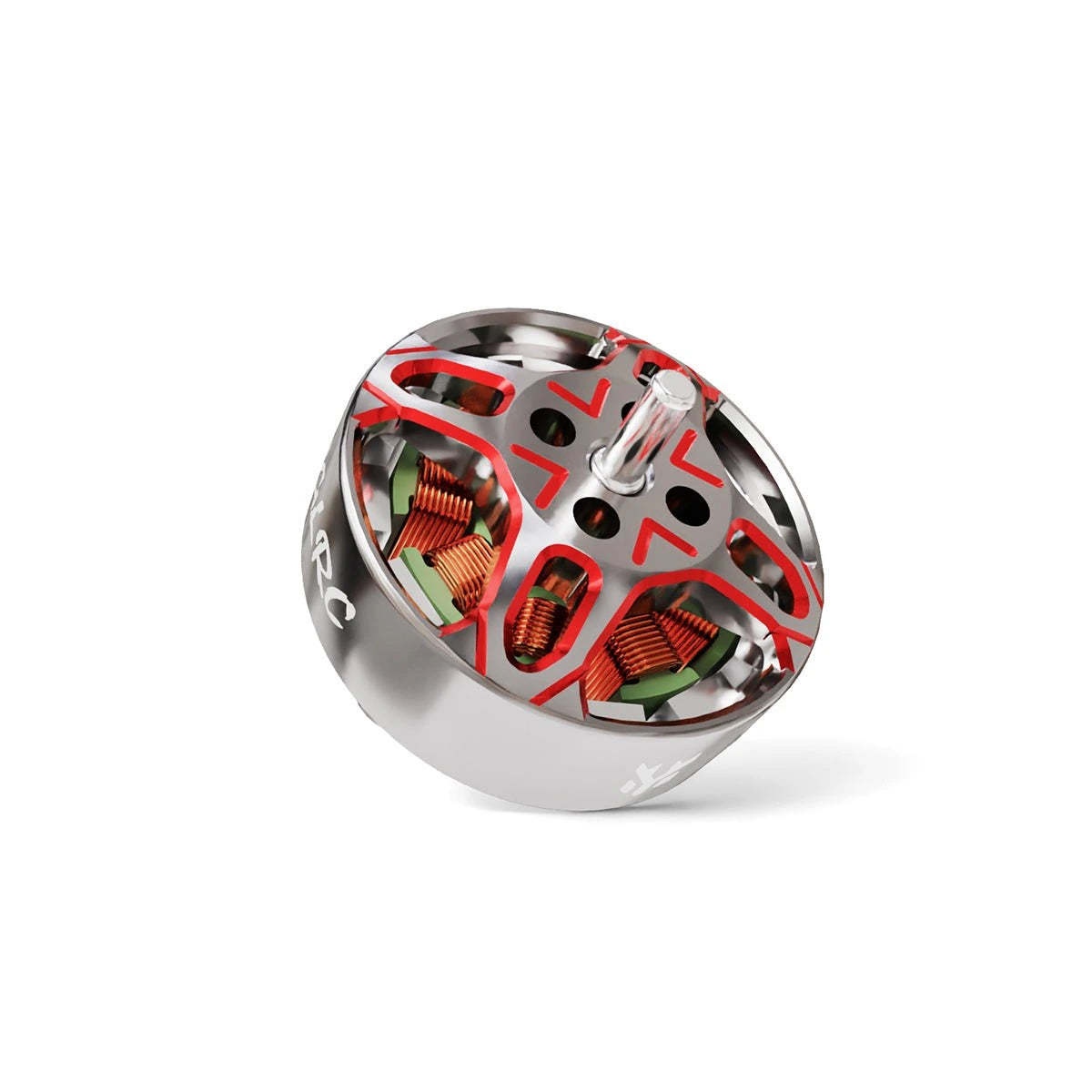

SPECTER 1303.5 5500KV brushless motor
Features:
- New design with a two-color anodized finish.
- Crafted from high-strength 7075 aviation aluminum, ensuring a durable one-piece rotor.
- Utilizes customized N52H curved magnetic steel for strong magnetism and high torque.
- Features super high temperature-resistant 200° copper wire winding for stable motor operation.

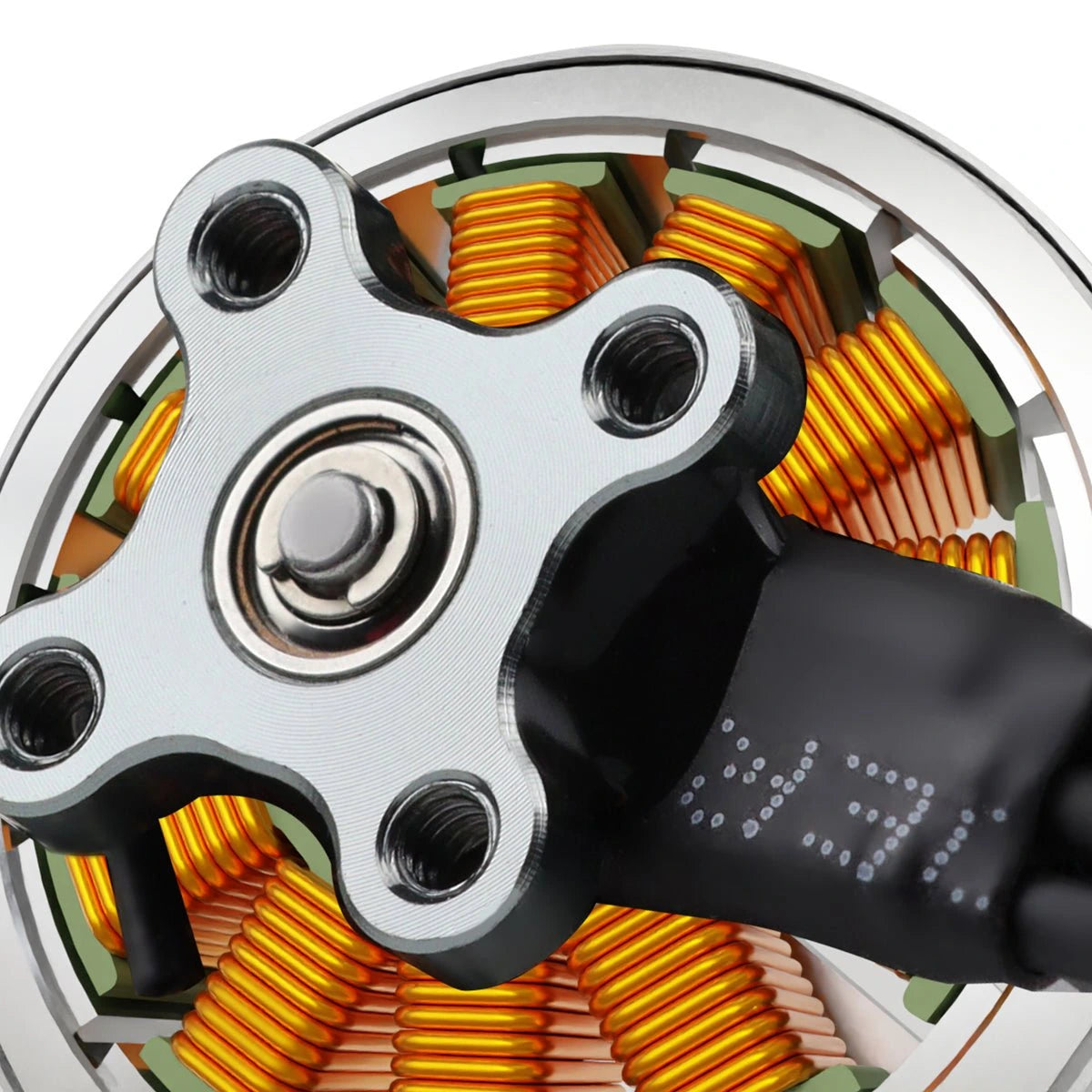

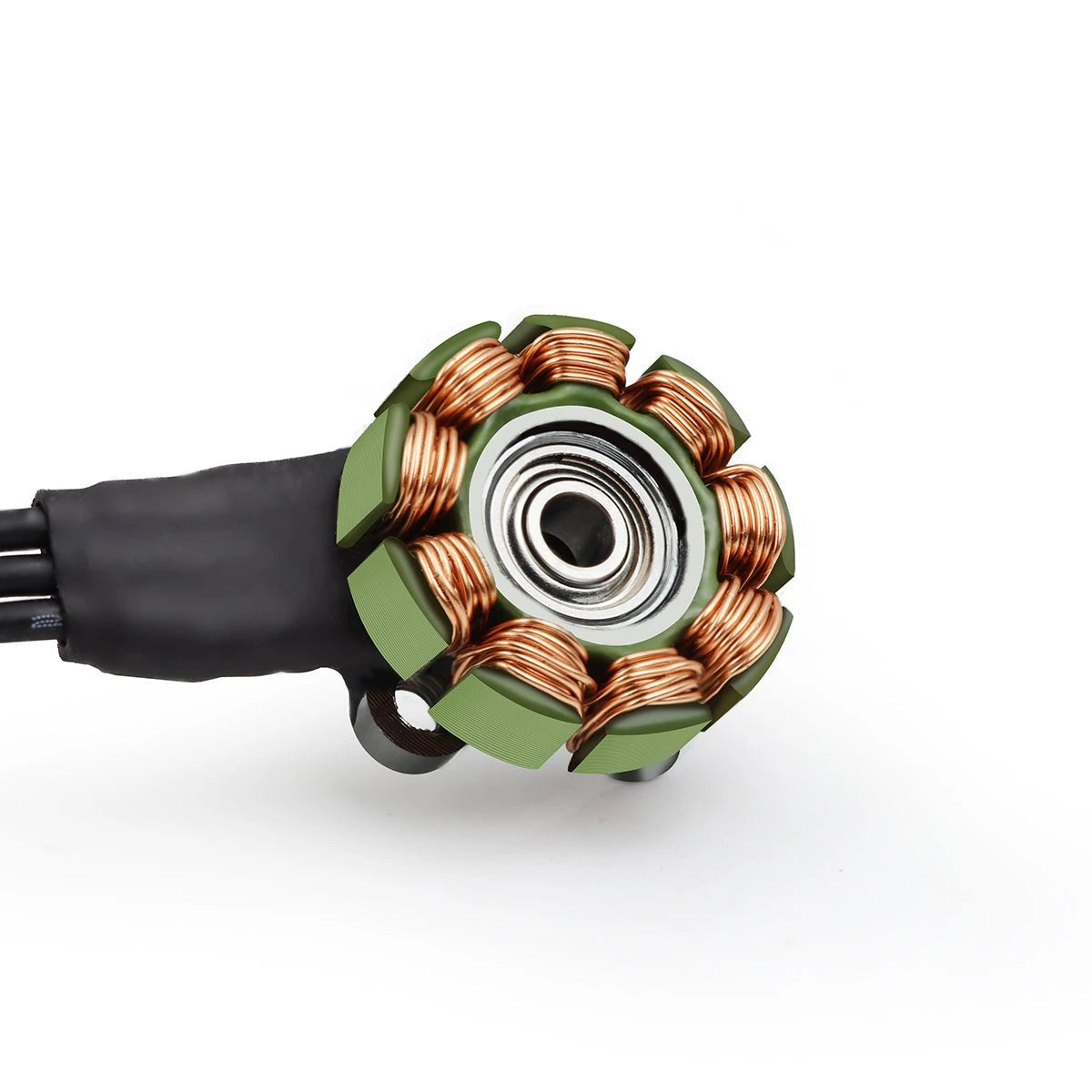

- Incorporates imported Kawasaki silicon steel sheets for a low-loss stator, reducing heat generation and enhancing efficiency.
- Optimized tuning maintains high torque at low speeds, provides linear power output during rapid throttle changes, and ensures precise and fast response during maneuvers.
- Equipped with an alloy steel outlet shaft, combining high strength with reduced weight.
- Perfect for 2-2.5 inch Tiny drones or 2-3 inch toothpick drones.
Specifications
Motor: 1303.5
KV: 5500KV
Magnetic pole: 9N12P
Magnetic steel: N52H
Stator: Kawasaki1200
Rotor: 7075
Bearing: ISC
Winding: 200°high temperature resistant copper wire
Maximum continuous current: 8.9A
Maximum power: 130W
Input voltage: 2-4S
Line specification: 80mm
ESC: >10A
Recommended propeller: 2-3 inch

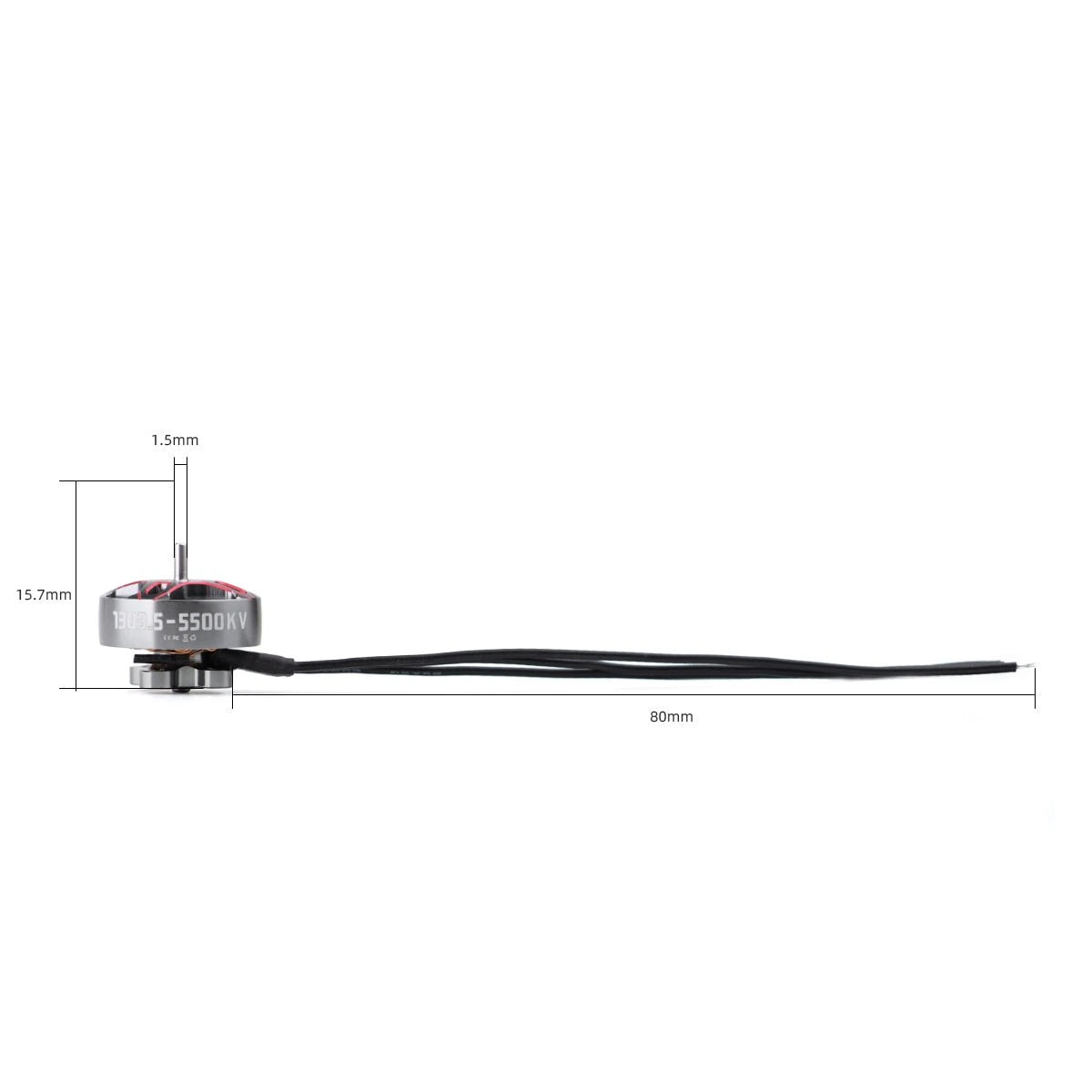

Motor size: Φ17.53 x 11.7mm
Mounting hole: 4*M2-9
Material: Alloy steel

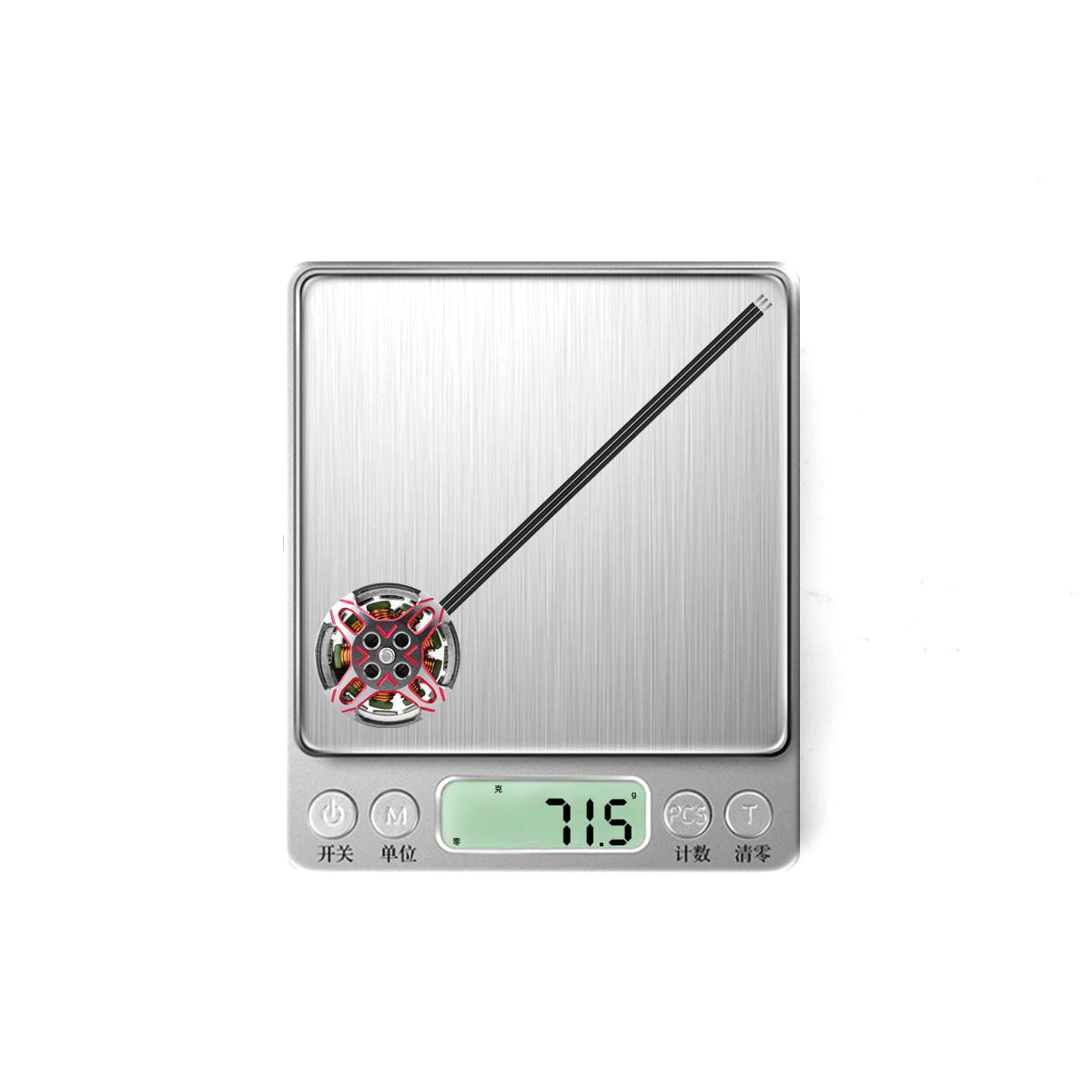

Weight: 7.15g (with wire)

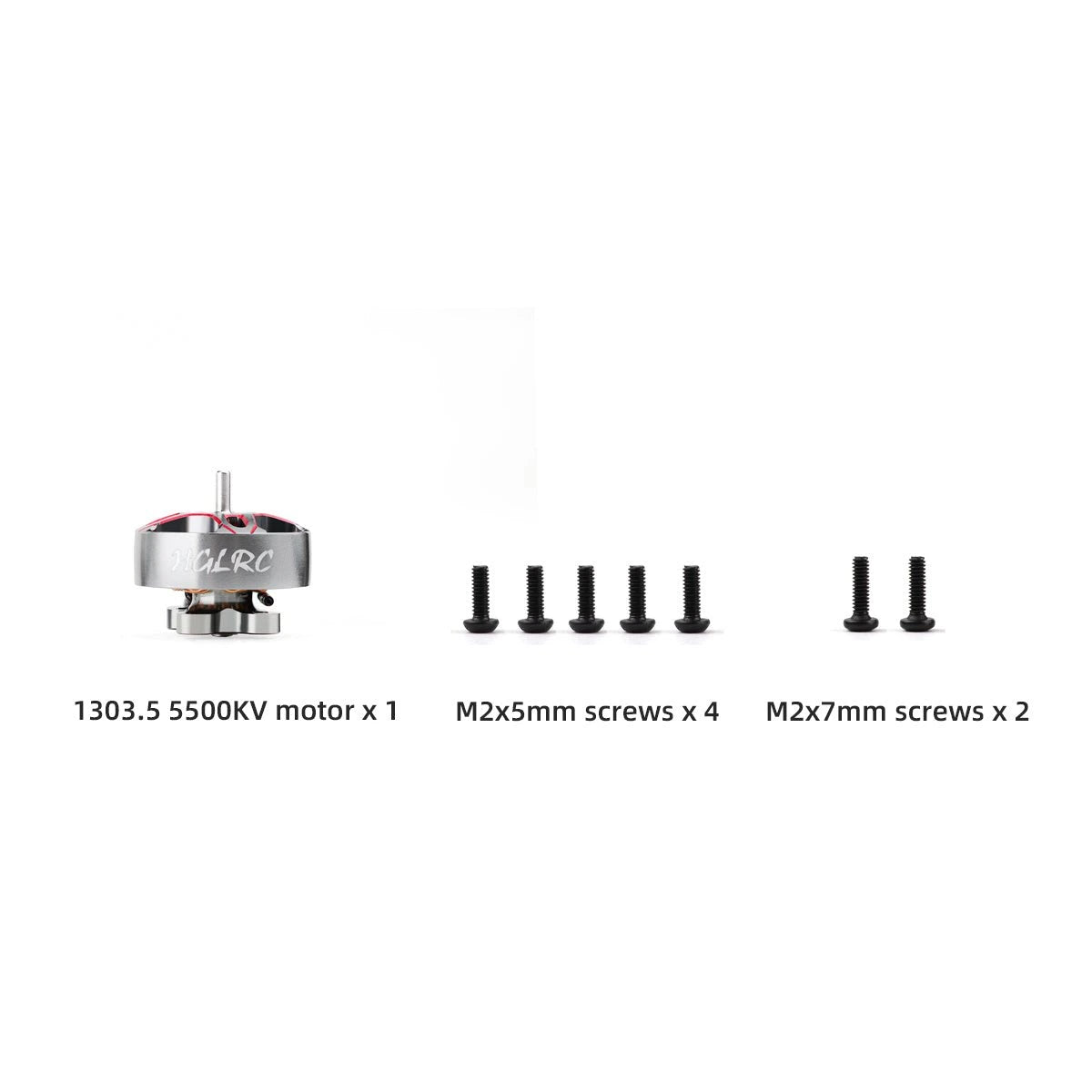

Includes
1x 1303.5 5500KV brushless motor
4x M2x5mm screws
4x M2x7mm screws
