iFlight XING2 2207 Unibell 1750KV (6S)

iFlight XING2 2207 Unibell 1750KV (6S)

€29,95
€29,95
Sale Sold out
Taxes included. Shipping calculated at checkout.
Shipping time
Shipping time:

6-8 working days

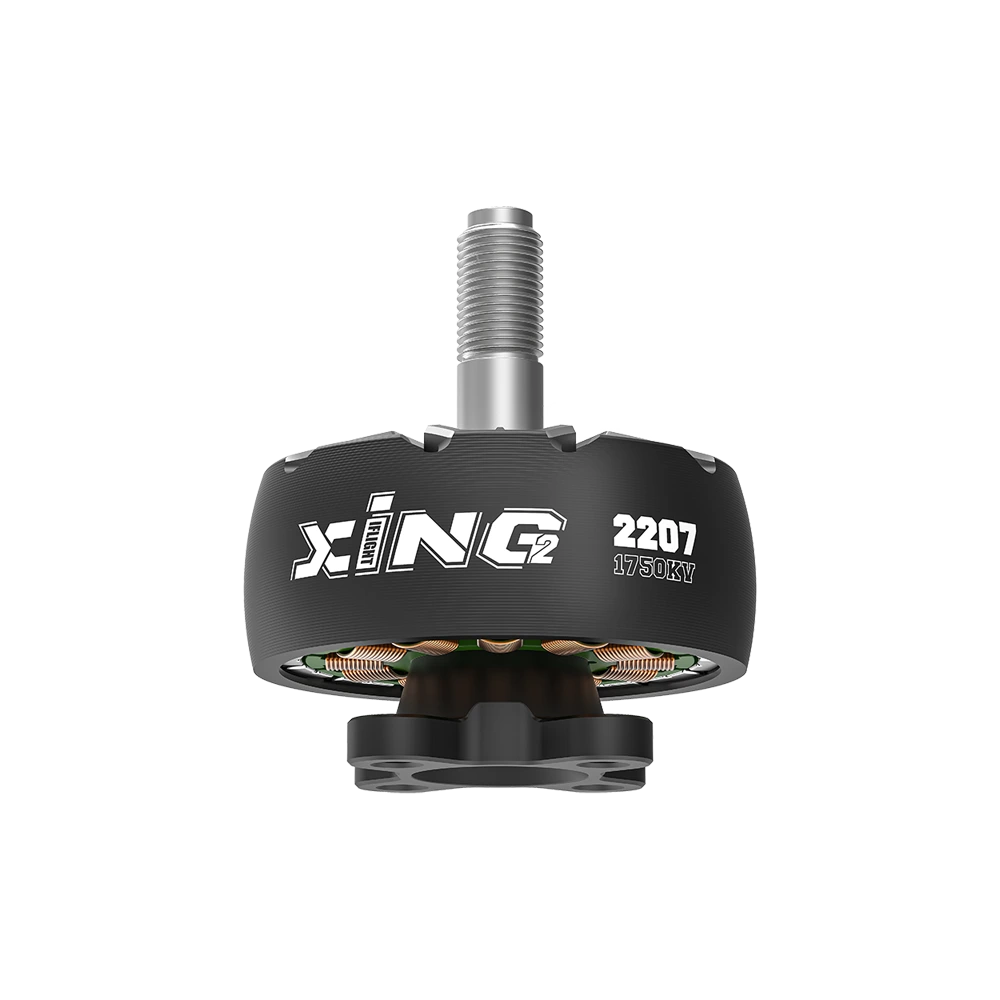

XING2 2207 FPV Motor Unibell 1750KV (6S)

Features:

- 5mm titanium alloy shaft, our strongest prop shaft ever!
- Crash resistant 7075 aluminum bell
- Smooth and long-lasting NSK 9x4x4 bearings
- Center slotted N52H curved arc magnets
- XING O-ring bearing gap protection
- Motor wires protector
- Dynamically balanced

Specifications

KV: 1750KV
Weight(included wire): 30.5g
Dimension: φ29*19.25mm
Interphase Resistance: 74.23mΩ
Input Volts: 25.2V
Peak Current: 36.3A
Max Watt: 898W
Mounting Holes: 16*16 φ3mm
Rotor Specifications: Unibell
Shaft Diameter: 5mm
Shaft Protruding Length: 13.5mm
Lead: 160mm/20AWG
Magnet: N52H Curved
Configuration: 12N14P
Bearing Type: NSK
Bearing Specification: φ9*φ4*4
Winding: Single Strand copper winding

Includes

1 x XING2 2207 Black Brushless Motor
4 x M3*7 screws
1 x M5 Flanged Nylon Insert Lock Nut
