Pilotix 5315 420KV

Pilotix 5315 420KV

€112,95
€112,95
Sale Sold out
Taxes included. Shipping calculated at checkout.
Shipping time
Shipping time:

4-6 working days

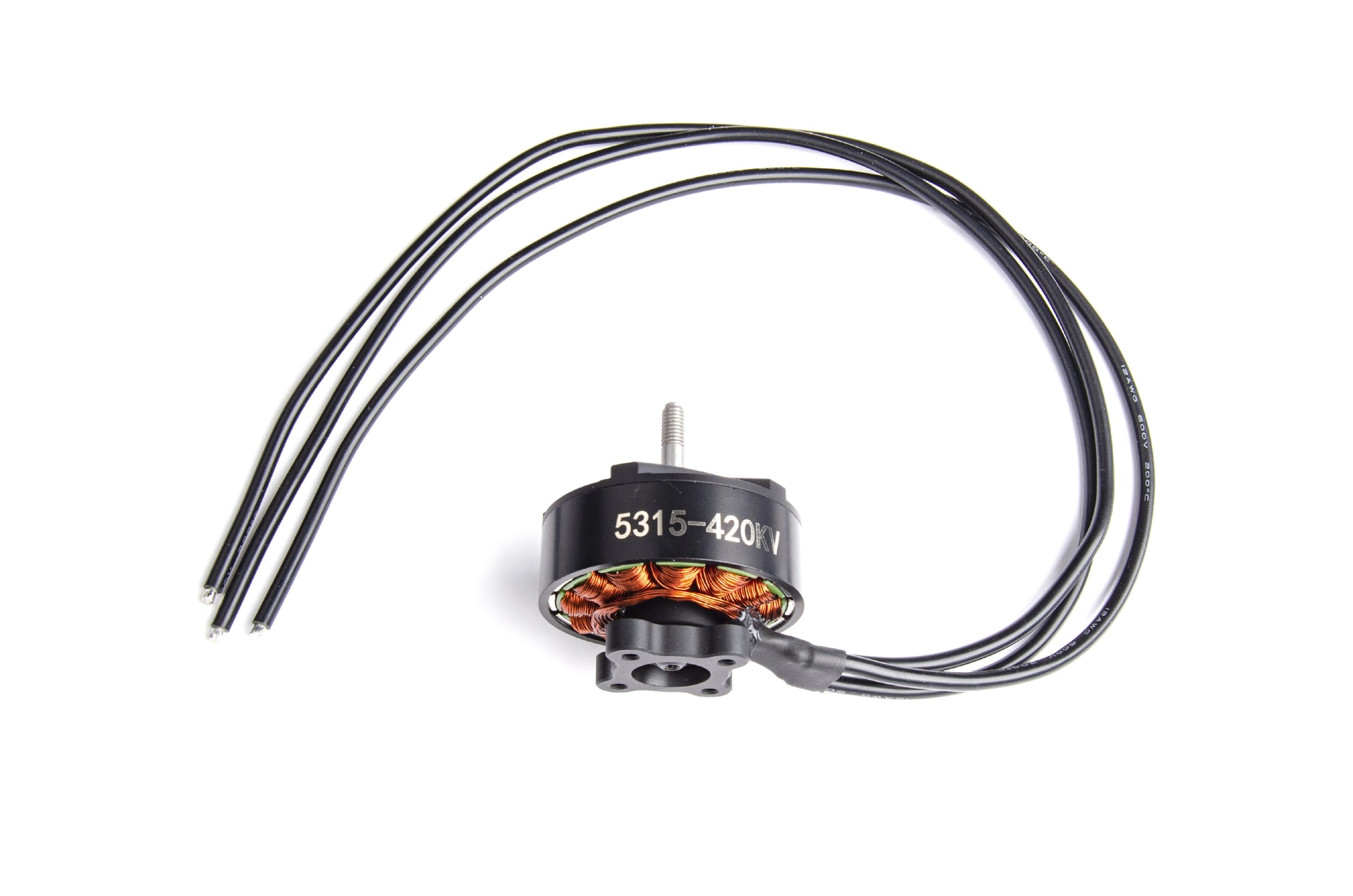

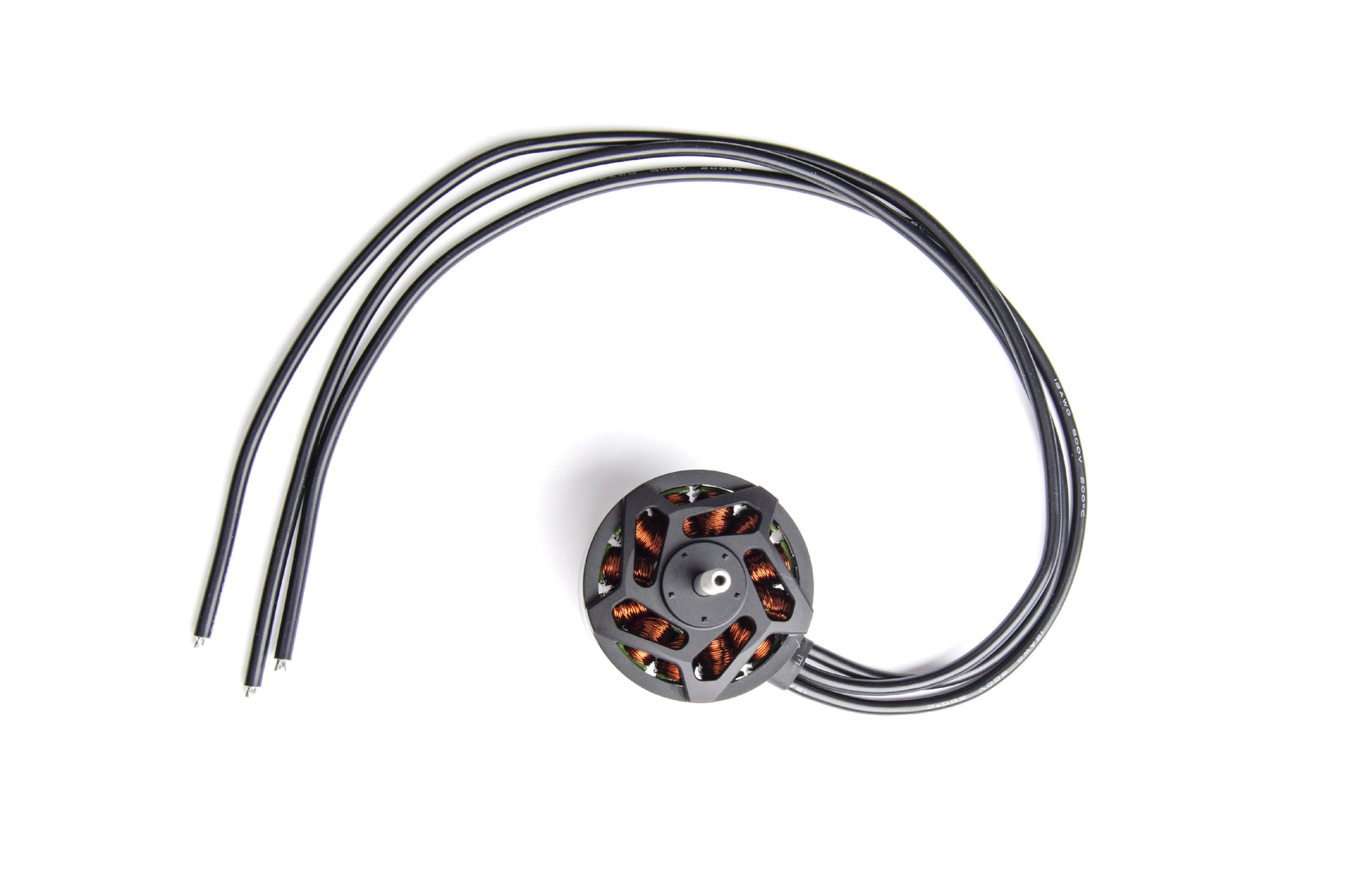

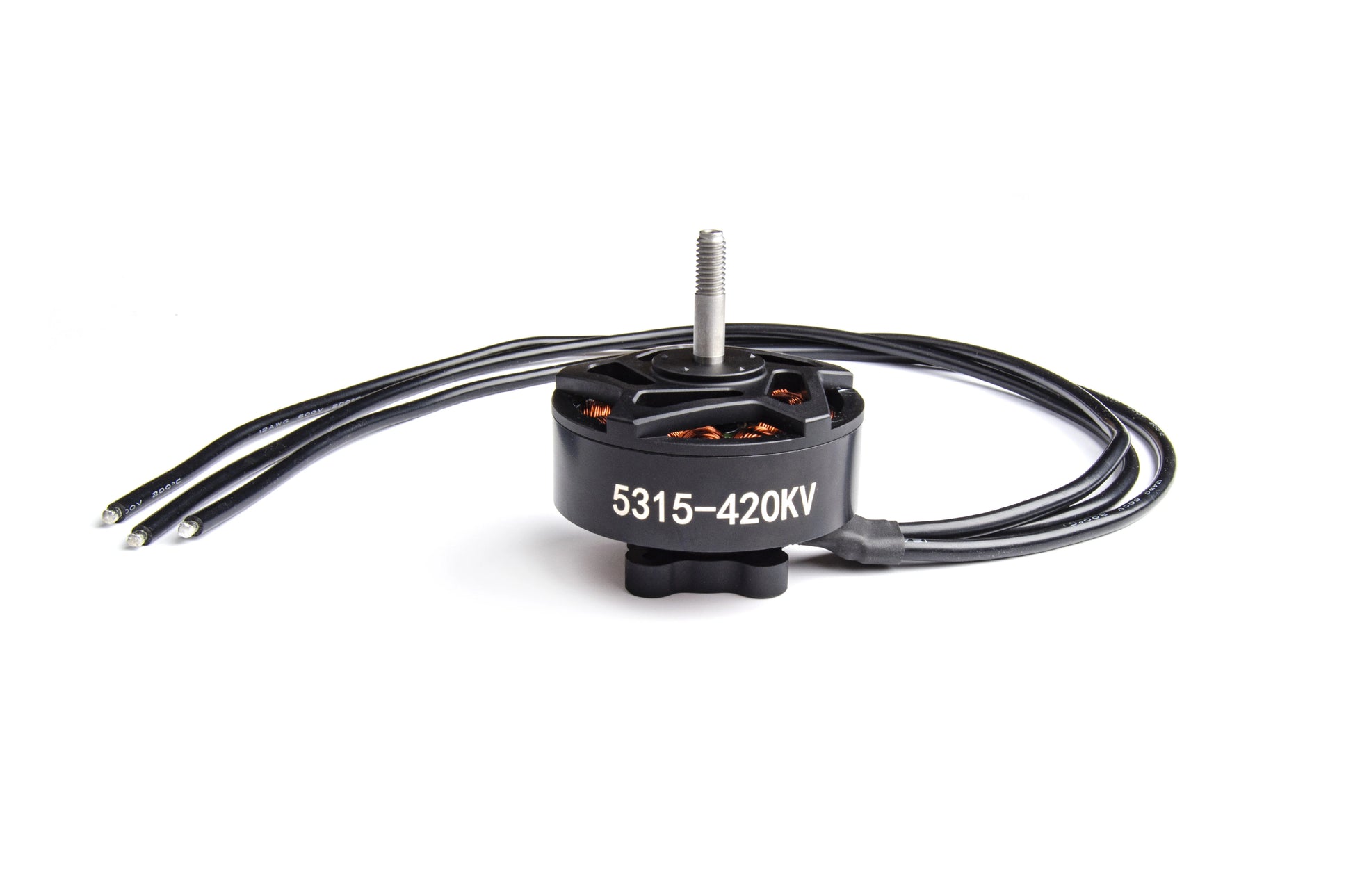

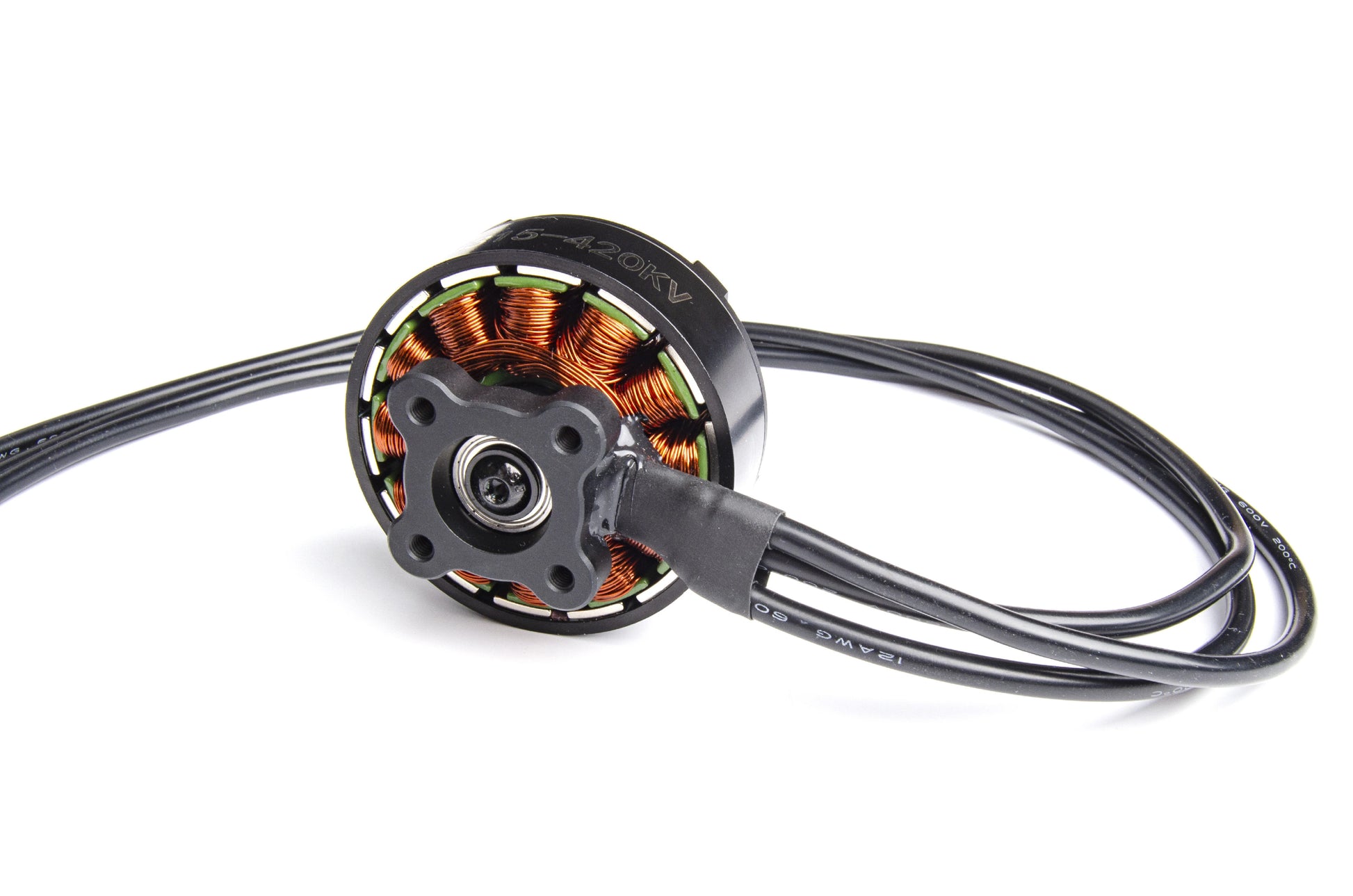

Motor Pilotix 5315-420KV

The Pilotix 5315-420KV is a high-performance brushless motor for power and efficiency drones. It delivers impressive thrust and consistent reliability, making it an excellent choice for heavy drones and demanding aerial applications. Built with durable materials and optimized for smooth operation, this motor ensures peak performance in every flight.

Specifications

Product: F5315
Slot & Pole: 12N14P
Motor Size: Ø61xH44mm
Magnet: 120°C
Enameled Wire: 180°C
Isolation Test: 500V
Motor Mounting Dimensions: 4×M4@D30mm
Recommended prop size: GF1507
KV: 420KV
Battery (LiPo): 6–8S
No-load Current /24V: ≤2.98A
Resistance: 20.25mΩ ± 3%
Max Thrust (g): 6128g / 8324g
Max Power: 1588.9W / 2980W
Wire Size (AWG): 12#
Wire Length (mm): 600mm ± 3
Dynamic Balance: ≤20mg
Weight (with Wire): 401g

Includes

1x Pilotix 5315-420KV

View full details
