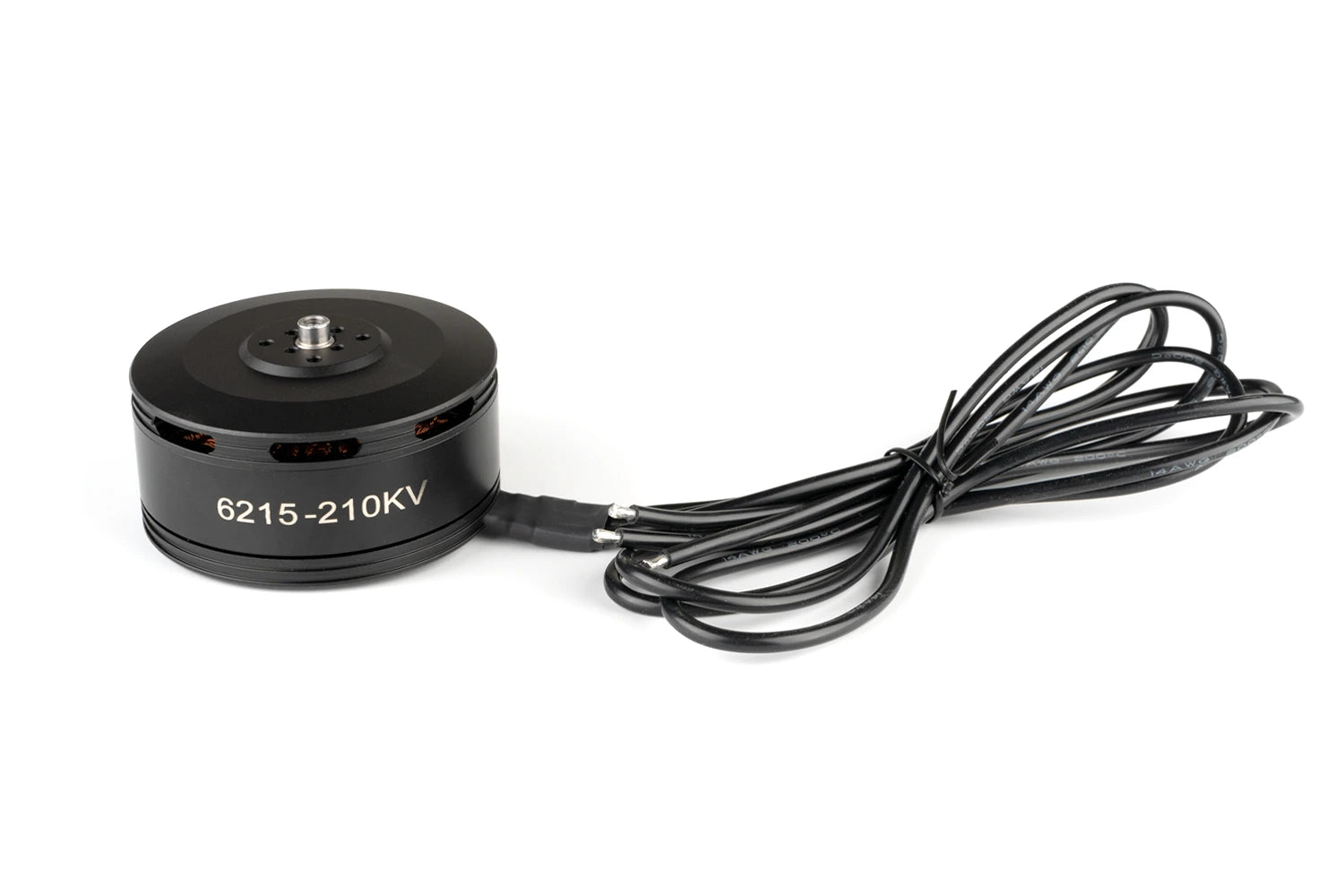

Motor Pilotix 6215 210KV
The Pilotix 6215 210KV is a powerful and reliable brushless motor designed specifically for large multirotor platforms and heavy-lift applications. It delivers smooth, stable performance with consistent torque output, making it ideal for cinematic rigs, industrial drones, mapping platforms, and long-range carriers. Its optimized construction ensures high efficiency under heavy loads, while the robust stator and bearing system provide long-term durability. Whether used for professional aerial work or demanding custom builds, the 6215 210KV offers dependable power and exceptional thrust capacity.
Features:
- High-efficiency stator and winding design for smooth and powerful operation
- Strong lift capability suitable for professional heavy-lift and long-endurance drones
- Durable construction with low internal resistance for improved reliability
- Optimized for stable performance with large propellers and high-current ESC systems
- Long motor wires for easy installation on bigger frames
Specifications
Motor Model: 6215-210KV
Kv (Velocity Constant): 210Kv
Interphase Resistance: 42.5mΞ©
Shaft Diameter: 6mm
Weight (including wire): 409g
Maximum Power: 2182.2W
Maximum Thrust: 7898g (on 8S)
Pole Configuration: 24N / 28P
Motor Size: 68.8x41mm (diameter x length)
Motor Wire: 14AWG, 670mm length
No-Load Current (at 7.4V): 0.9A
Maximum Current: 65.51A
Motor Mounting Pattern: 4xM4 holes, 25 mm diameter
Propeller Mounting: 8xM3 holes, fits D = 12β18 mm
Recommended Propeller: 2055-2
Recommended ESC: HW-HV260A (V5)
Recommended Power Supply: ACPOWER-60V-133A

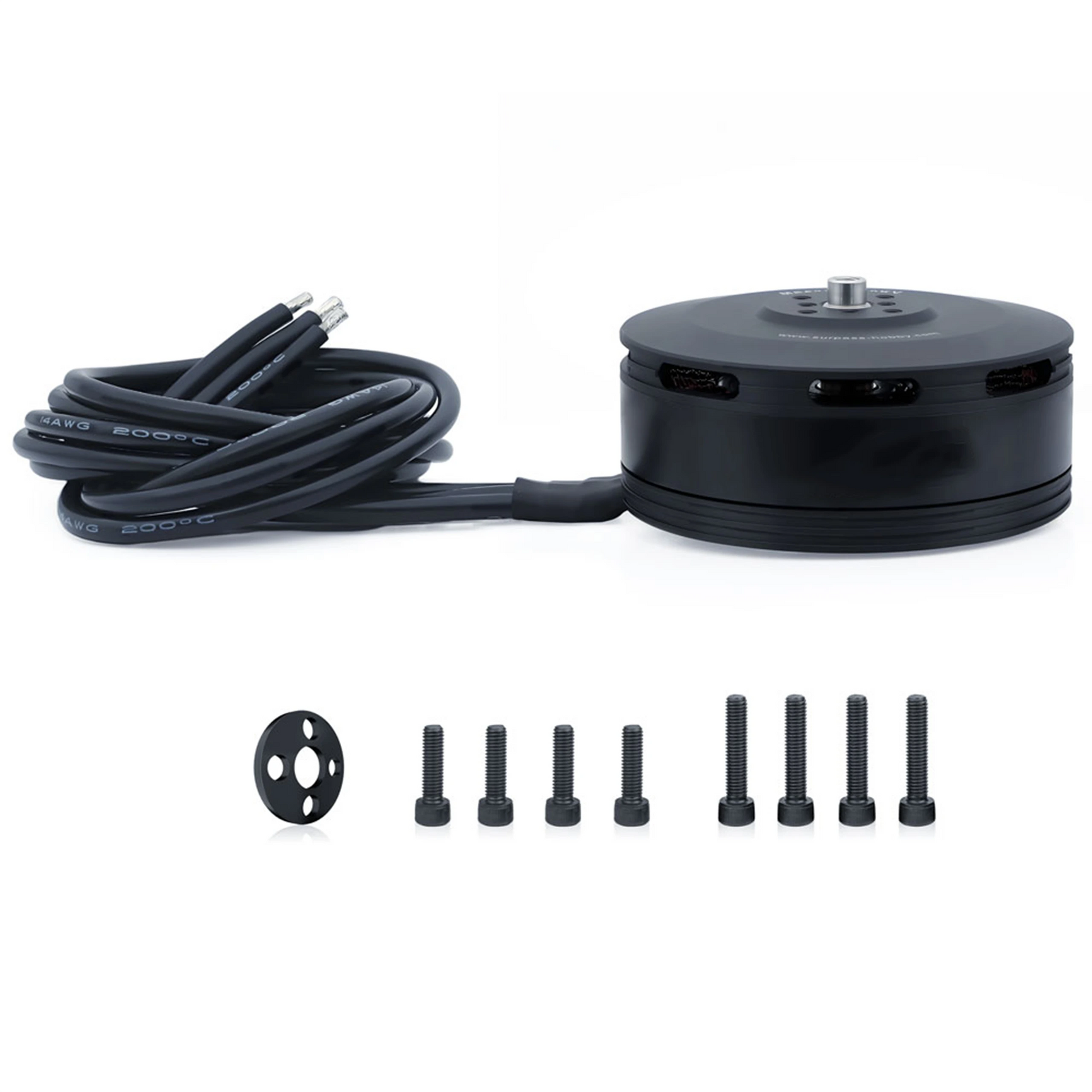

Includes
1x Pilotix 6215 210 KV motor
