FLYWOO GOKU GN405 Nano HD 20A V3 ELRS

FLYWOO GOKU GN405 Nano HD 20A V3 ELRS

€64,95
€64,95
Sale Sold out
Taxes included. Shipping calculated at checkout.
Shipping time
Shipping time:

4-6 working days

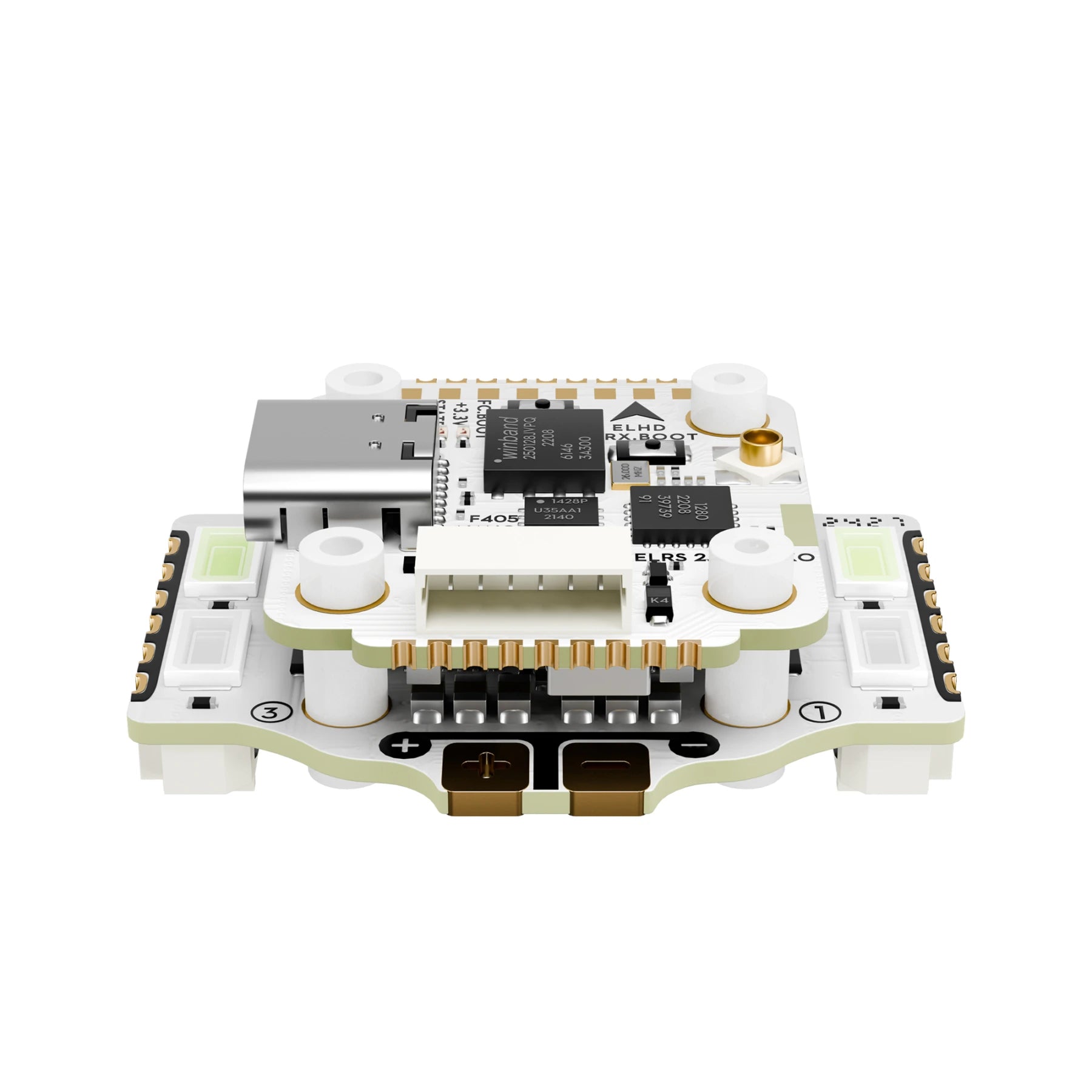

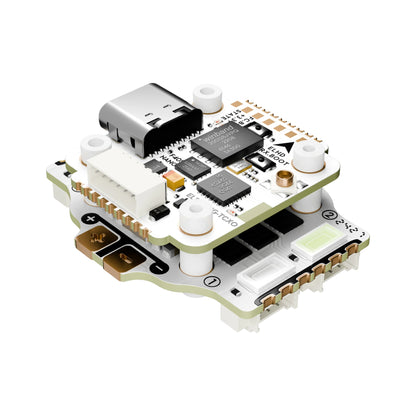

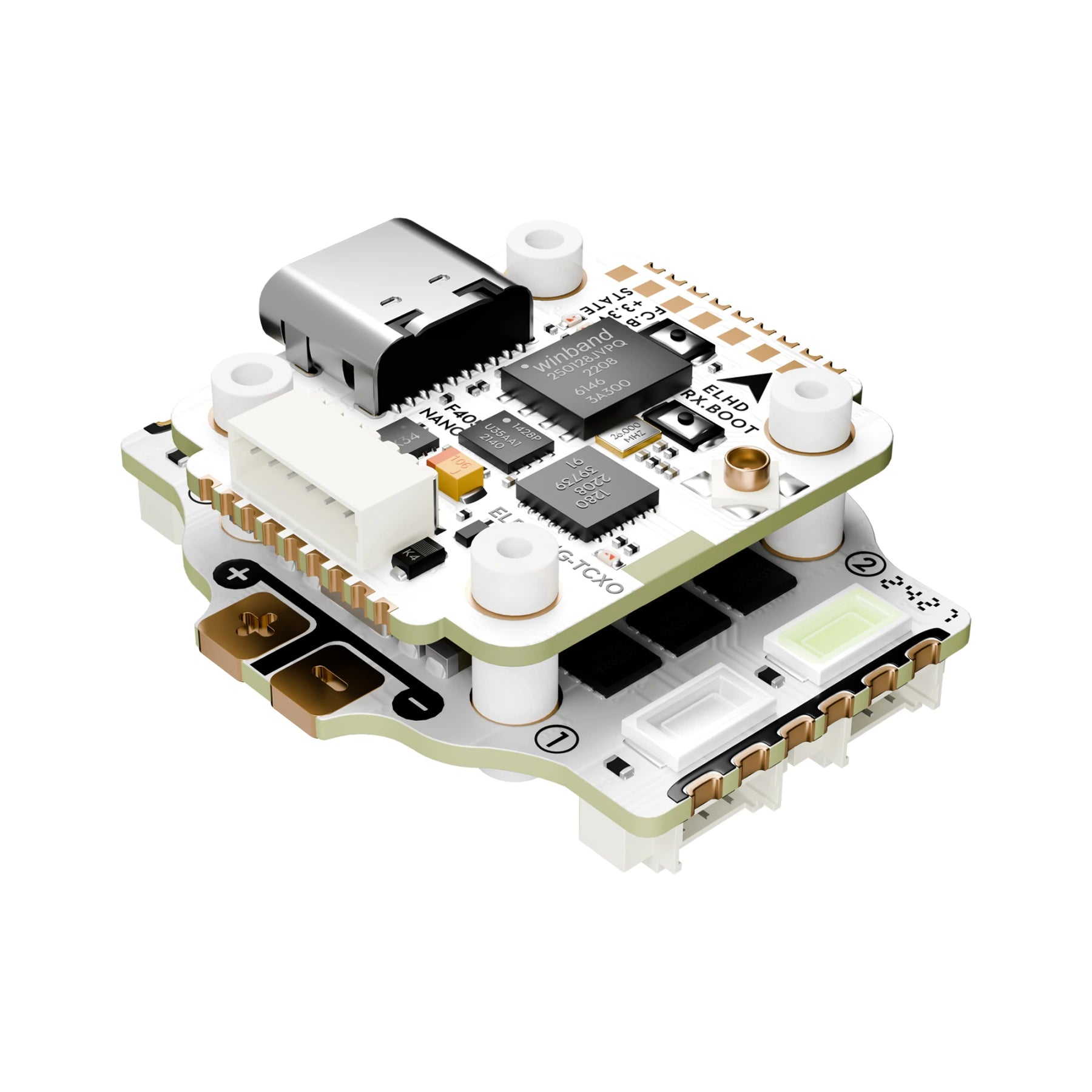

Stack FLYWOO GOKU GN405 Nano HD 20A Stack V3 w/ELRS

The FLYWOO GOKU GN405 Nano HD 20A Stack V3 combines a high-performance F4 flight controller with a reliable 20A 4-in-1 ESC into a compact 16×16 mm stack ideal for micro FPV builds. The FC is powered by the STM32F405 BGA chip and equipped with the ICM-42688P gyro for smooth flight performance, as well as ELRS 2.4GHz for responsive long-range control. Paired with a 20A ESC supporting multiple DShot and PWM protocols, this stack delivers reliable power for 2–6S LiPo batteries. It’s the perfect solution for pilots seeking lightweight builds without sacrificing performance or functionality.

Specifications

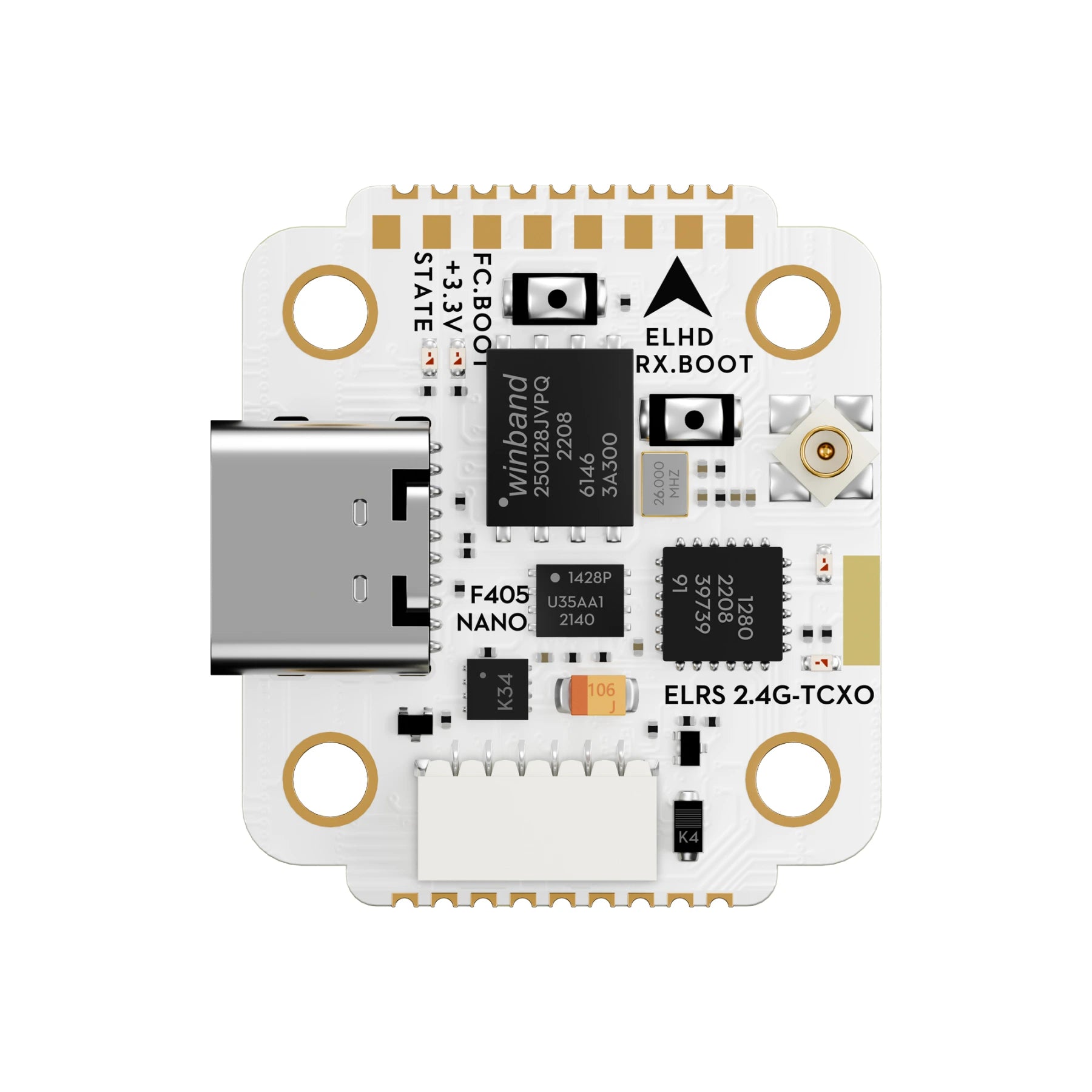

FC:

MCU: STM32F405 BGA
Gyro: ICM-42688P (SPI)
Barometer: DP310
OSD: No
Black Box: 16MB
USB: Type-C
UARTs: 1 / 2 / 3 / 4 / 5 / 6
BEC: 5V 2A / 3.3V 0.5A
Voltage Input: 7.4V – 24V (2–6S LiPo)

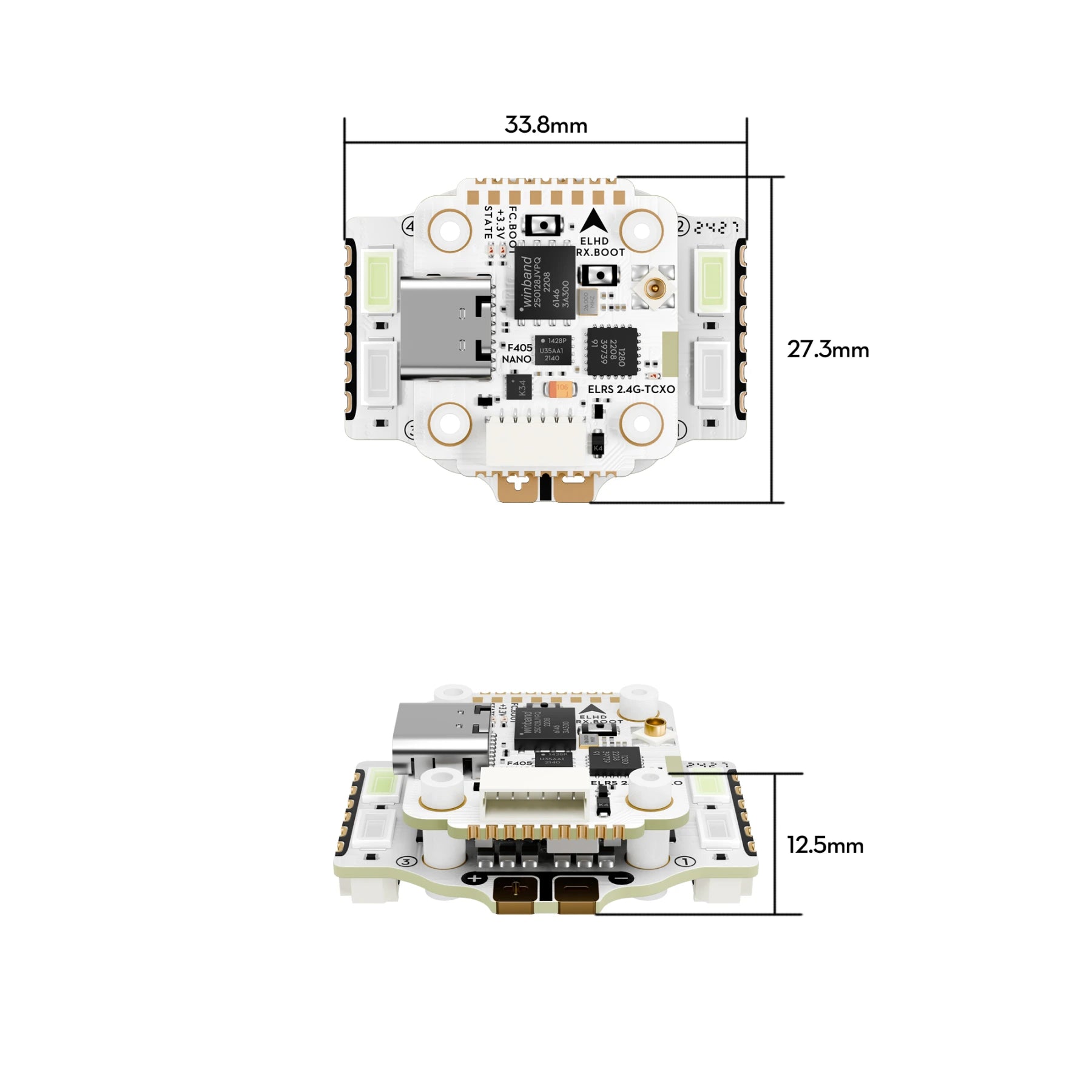

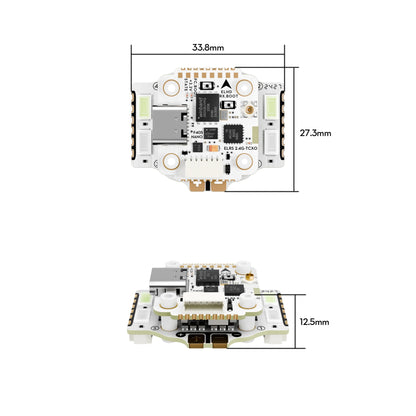

Size: 25 × 23 × 8 mm
Mounting: M2 16×16 mm
Weight: ~3 g

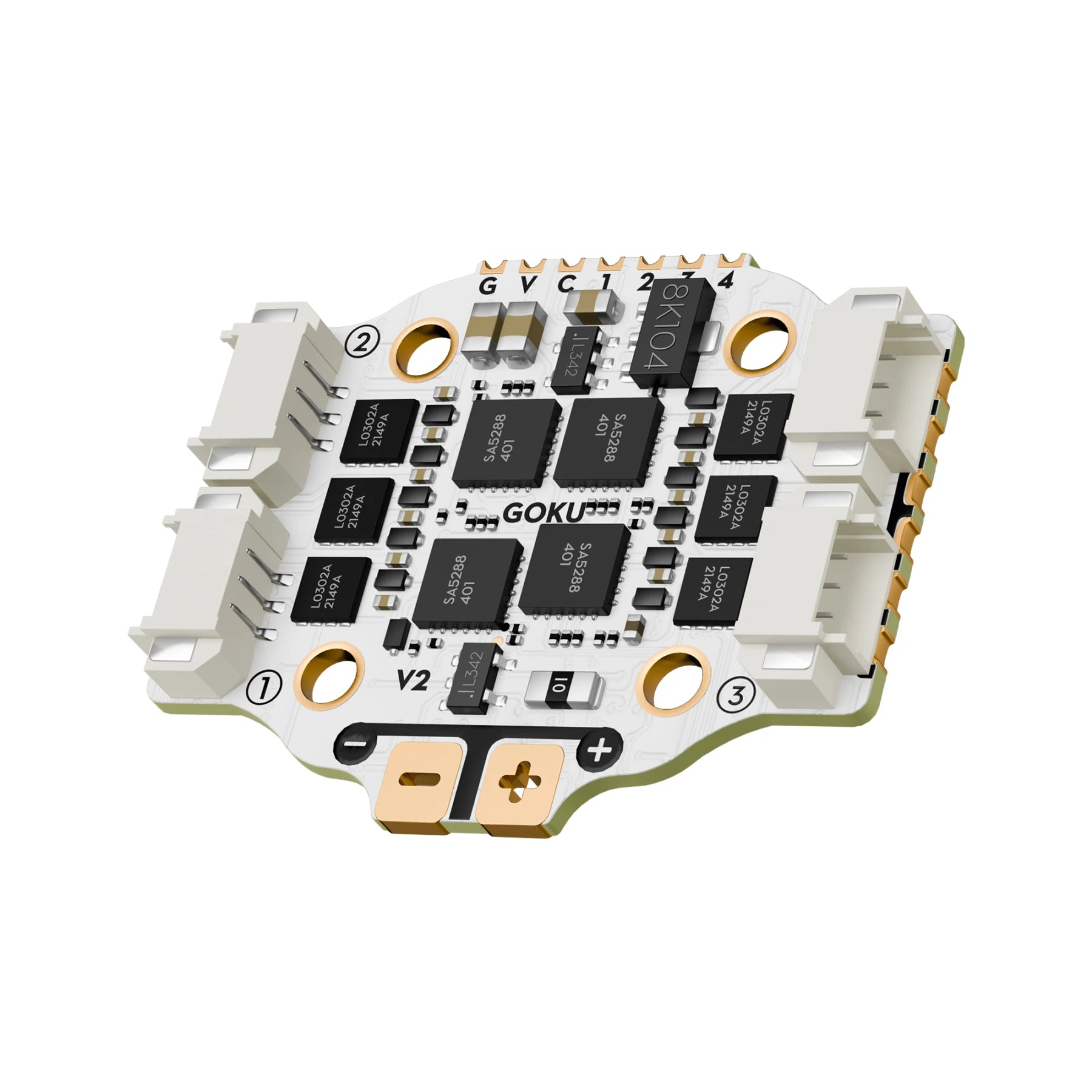

ESC:

ESC MCU: BB21F16G
Continuous Current: 20A
Input: 2–4S LiPo
Protocols Supported: PWM, Oneshot125, Oneshot42, Multishot, DShot150, DShot300, DShot600

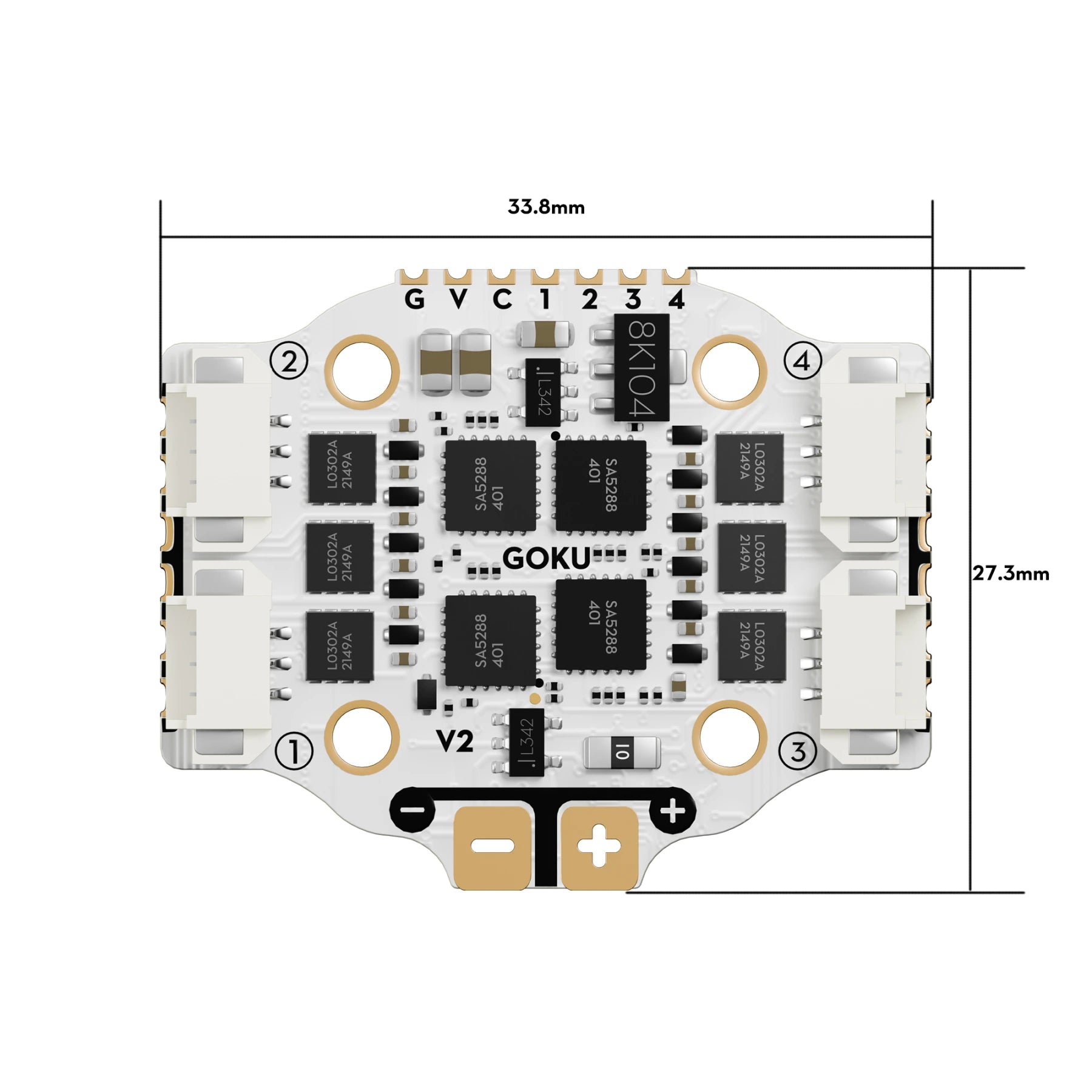

Size: 27 × 33 mm
Mounting: M2 16×16 mm
Weight: 4.5 g
Power LED: Yes

Includes

1 × GOKU GN405 Nano HD Flight Controller
1 × GOKU BS 20A ESC V3
