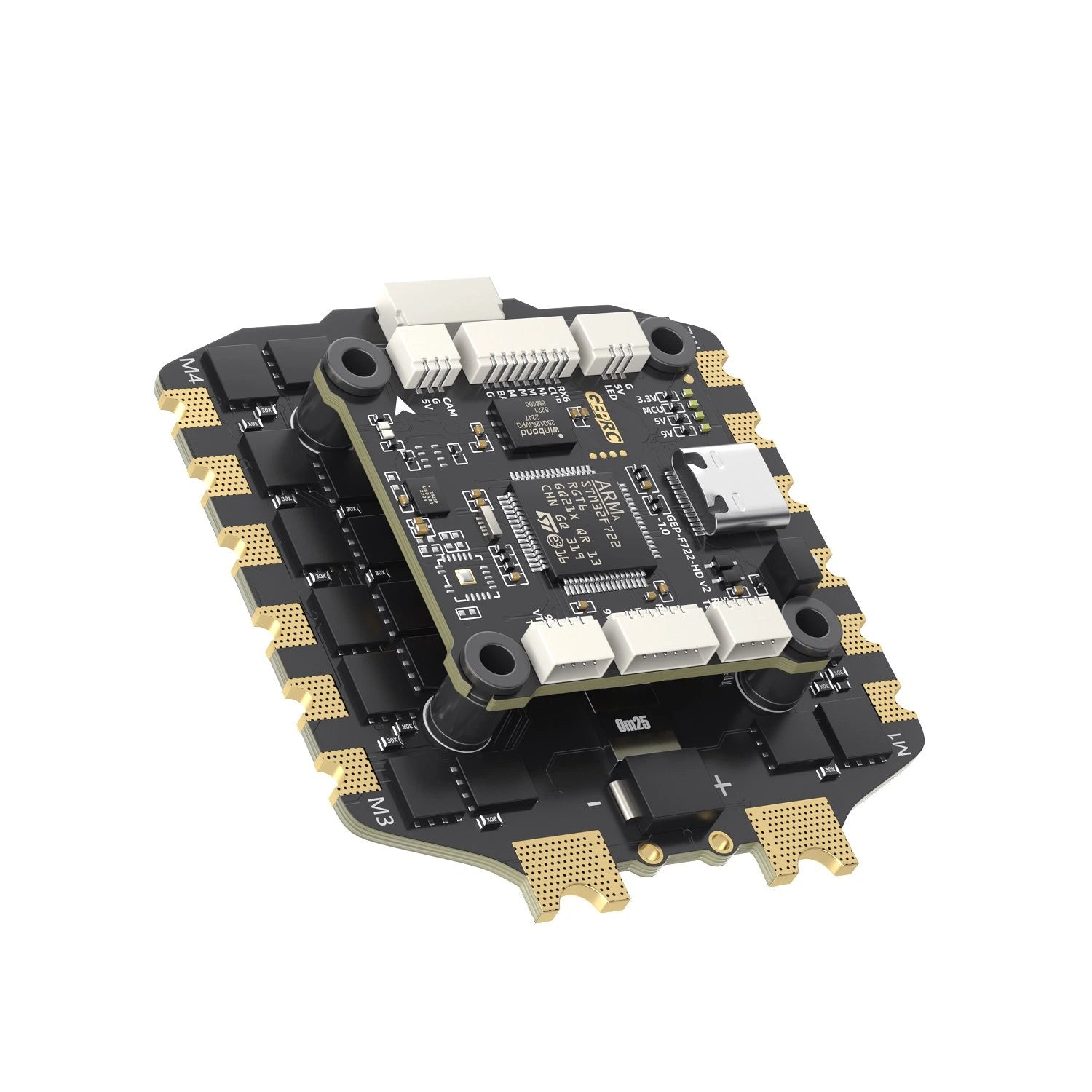

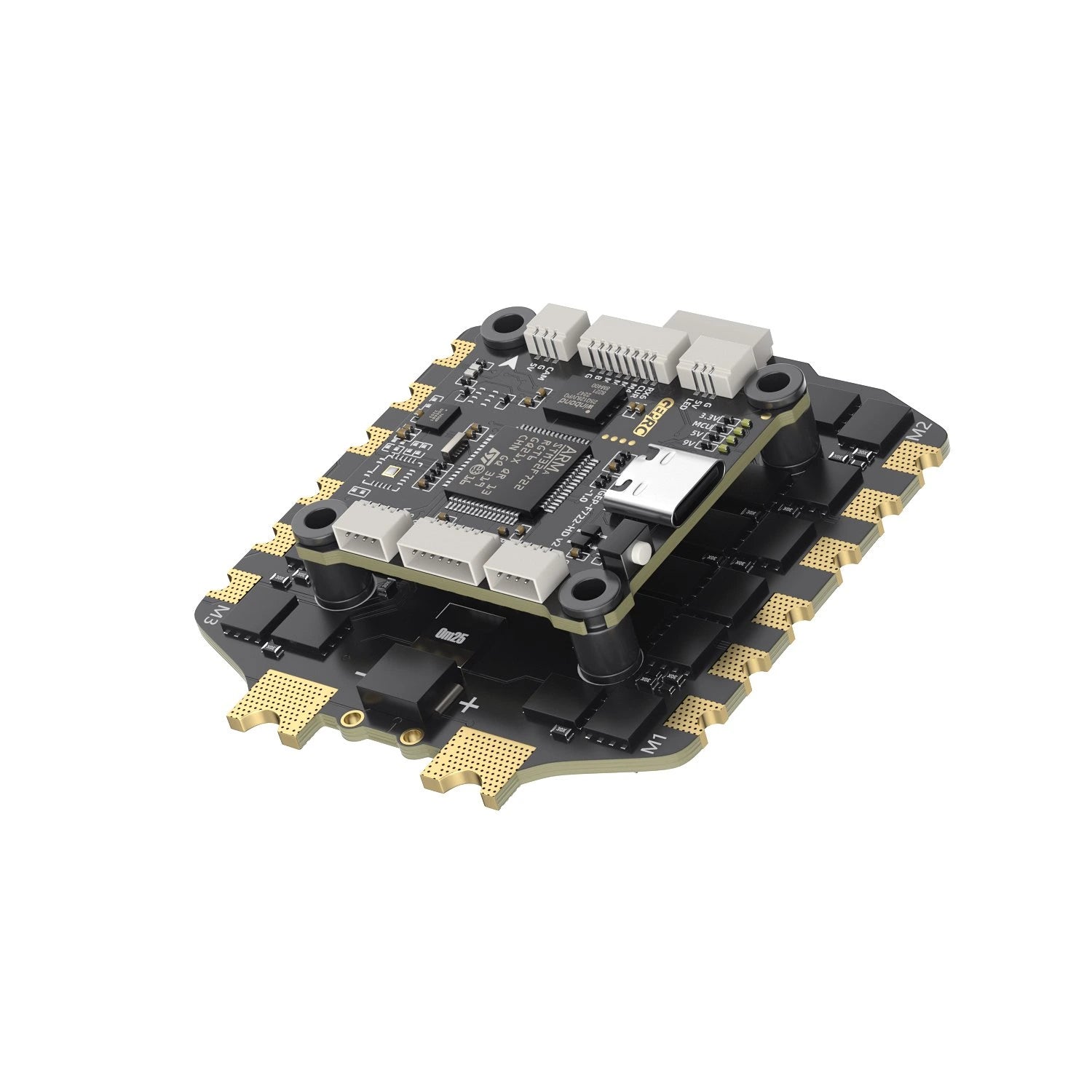

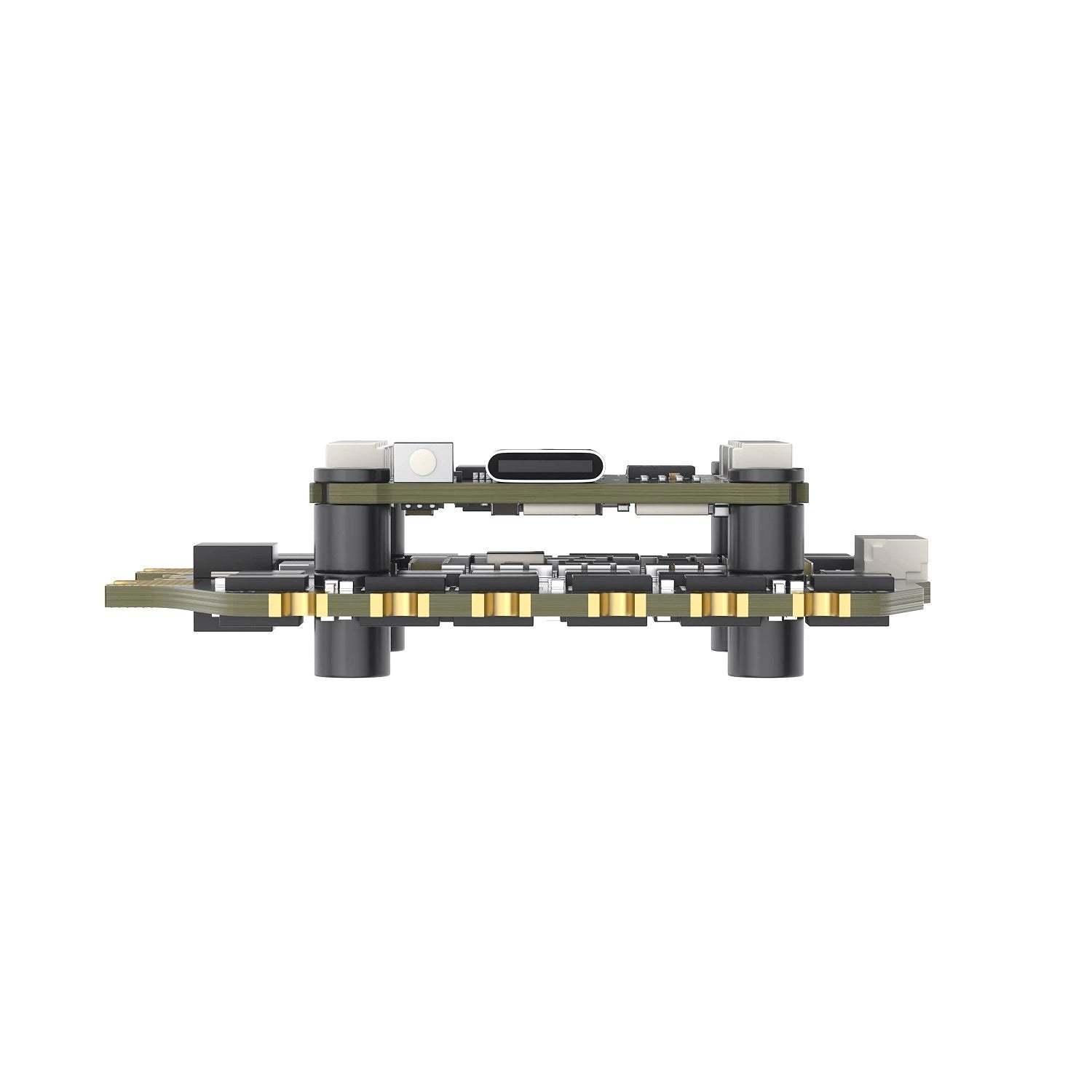

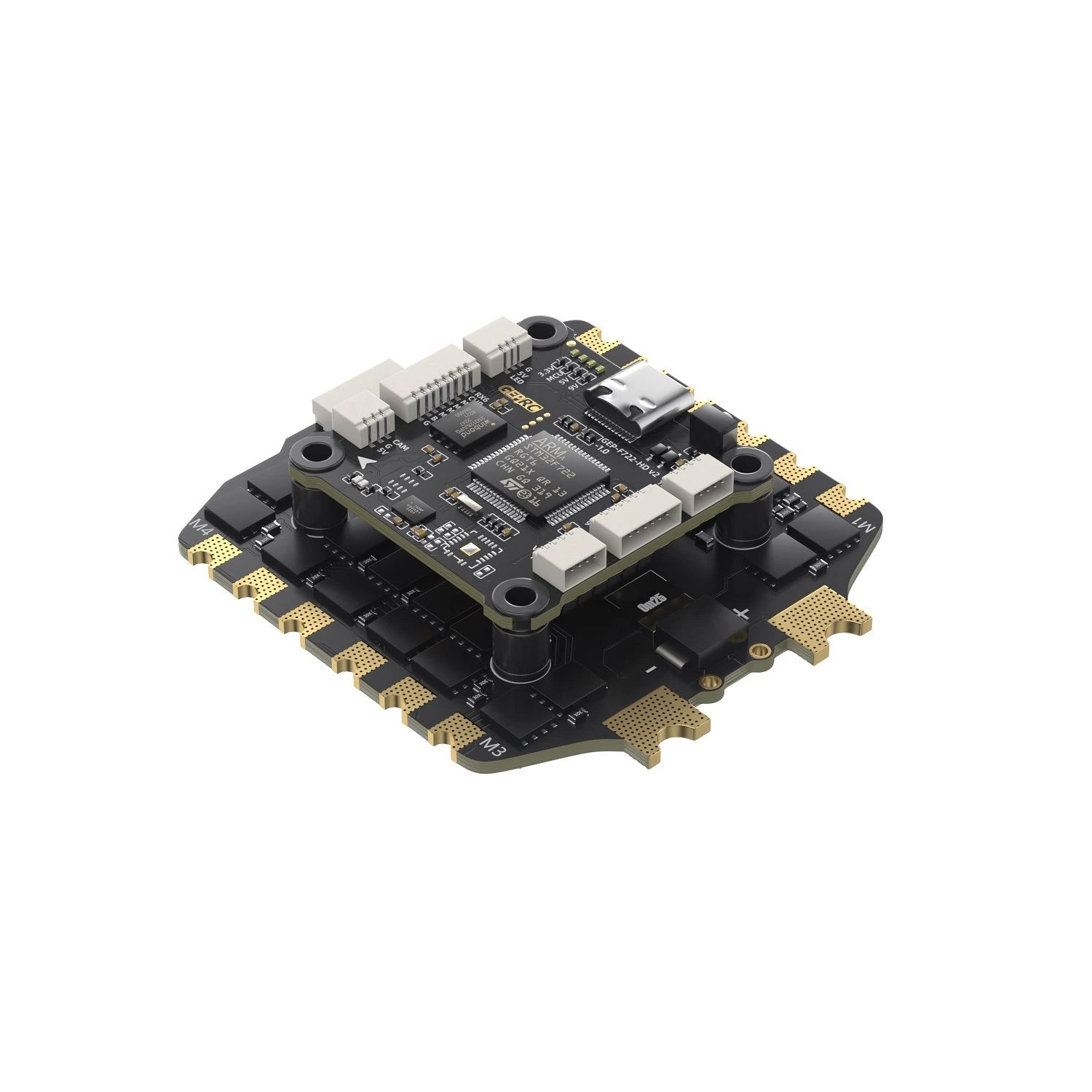

GEPRC TAKER F722 BLS 80A V2

GEPRC TAKER F722 BLS 80A V2

€128,95
€128,95
Sale Sold out
Taxes included. Shipping calculated at checkout.
Shipping time
Shipping time:

4-6 working days

Features:

1. Use mainstream STM32F722 chip
2. Equipped with the latest 42688-P gyroscope
3. 16M black box storage
4. Integrated LC filter
5. Upgrade type-C USB interface
6. Directly plugged into the DJI Air Unit
7. With TAKER H80_BLS 80A 4IN1 ESC, Dual MOS,
high current, silky flight
8. Simple and reasonable installation method, the shock absorber can make the gyroscope work very stably
9. 9V@2.5A+ 5V@3A dual independent BEC

Specifications

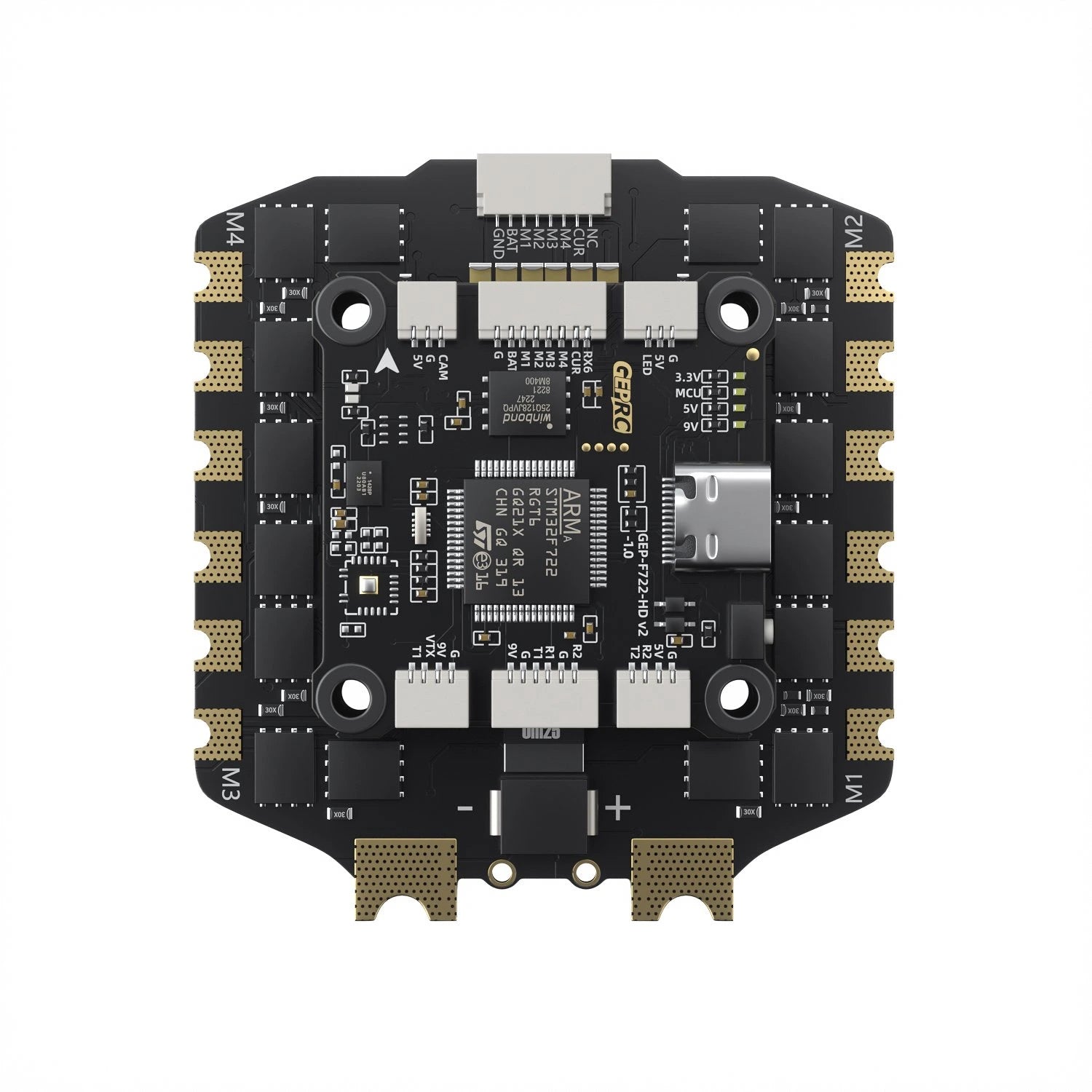

GEP-F722-HD v2 Flight Controller
MCU：STM32F722
IMU：ICM42688-P(SPI)
Air Unit Connection：Direct plugging into DJI Air Unit
Black Box：16M onboard
USB Interface：Type-C
Barometer: support
OSD：BetaFlight OSD w/ AT7456E chip
BEC：5V@3A,9V@2.5A dual BEC
Firmware Target：GEPRCF722
Size：36.85×36.85mm, hole 30.5×30.5mm，φ4mm hole becomesφ3mm after using a silicone shock-absorbing circle.
Input Voltage：3-6S LiPo
UART：5
Power Filter：Integrated LC filter
Weight：8.1g

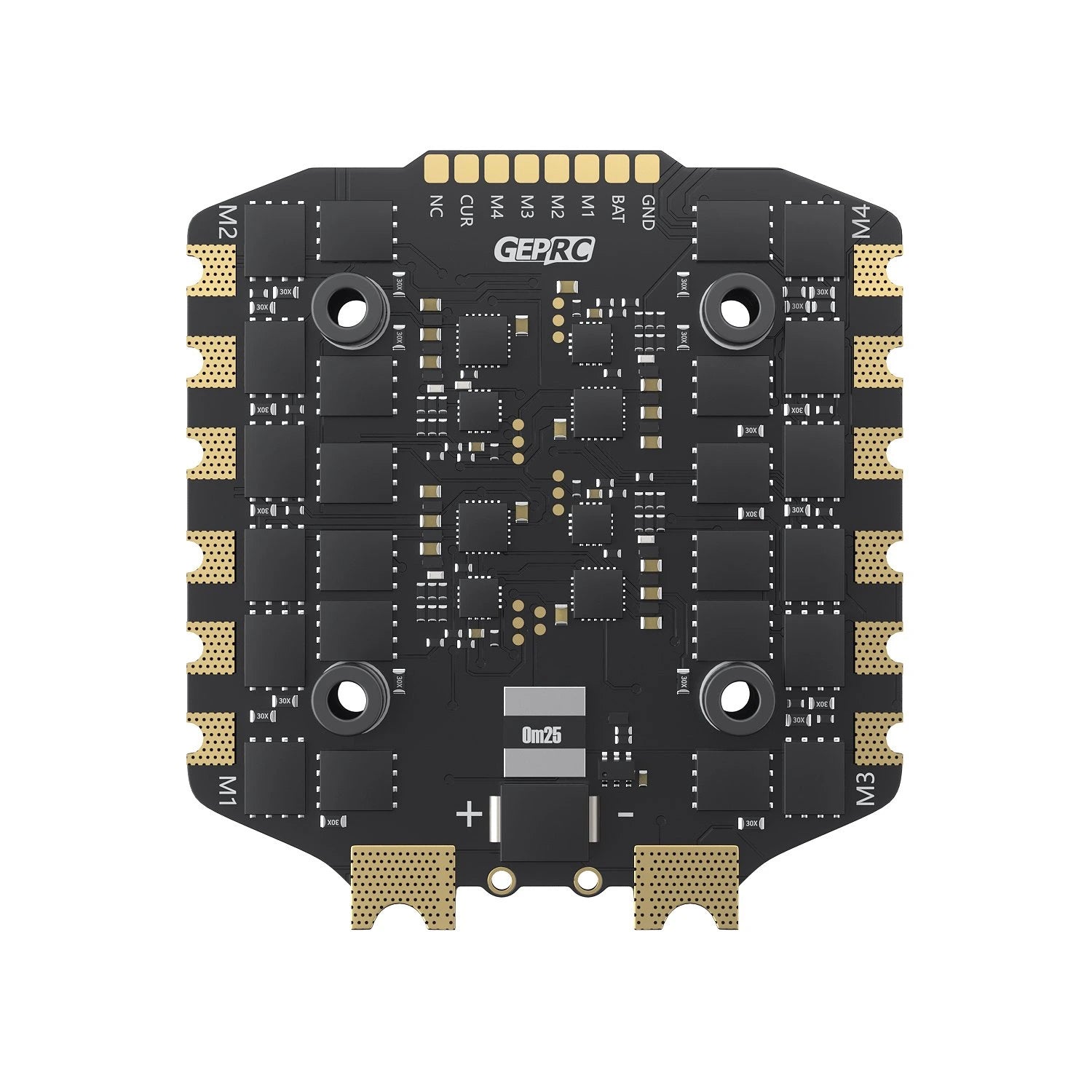

TAKER H80_BLS 80A 4IN1 ESC
Input Voltage: 3-6S Lipo
Ammeter: Support
Continue Current：80A
Burst Current：85A（5 second）
Support Protocol: Dshot 150/300/600
Size：56.3*61.1mm，hole30.5×30.5mm，φ4mm hole becomes φ3mm after using the silicone shock-absorbing ring.
Weight: 28.1g
Target: B_X_30

Includes

1 x GEPRC TAKER F722 BLS 80A V2
