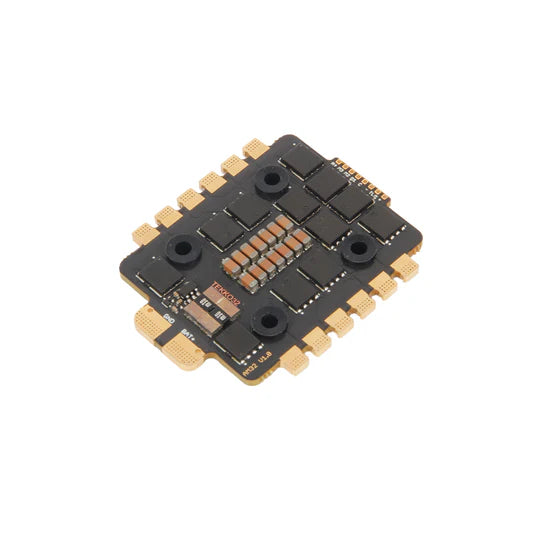

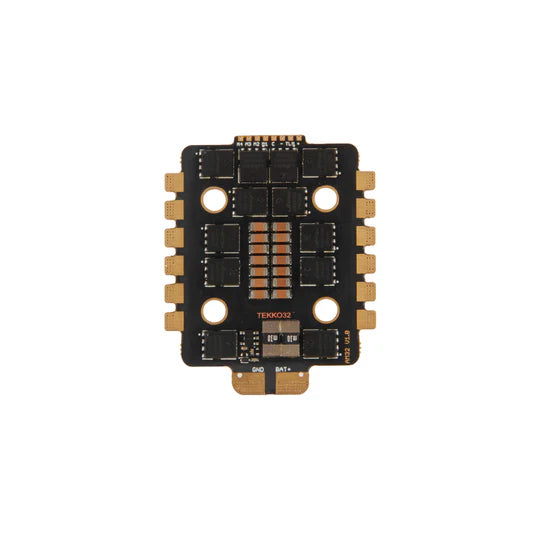

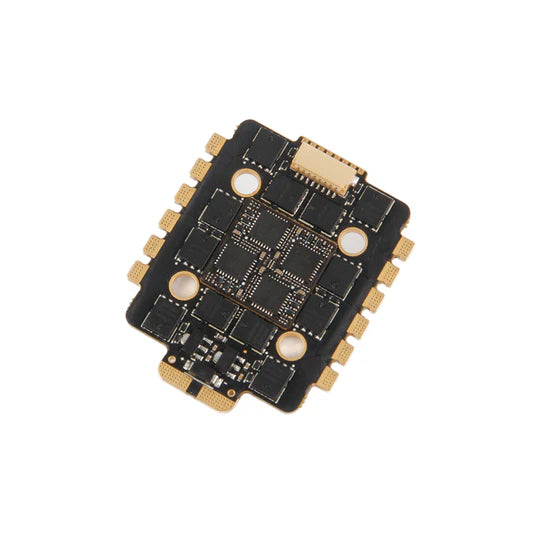

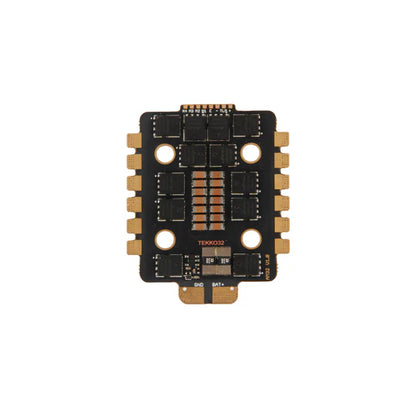

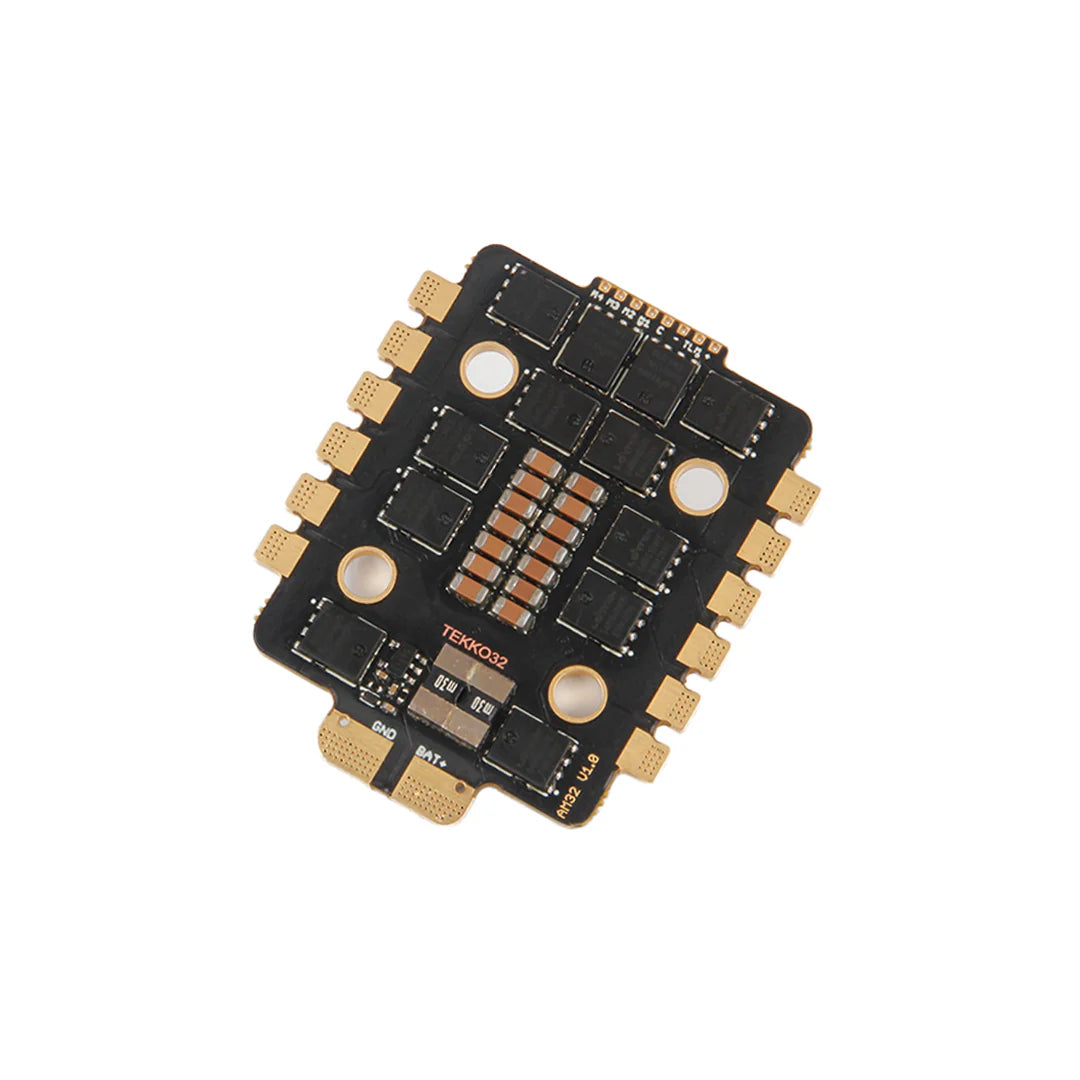

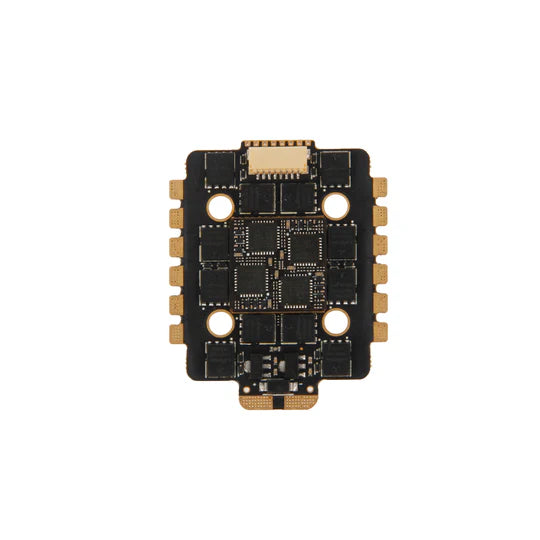

Tekko32 F4 4in1 Mini 50A ESC (AM32)

Tekko32 F4 4in1 Mini 50A ESC (AM32)

€76,95
€76,95
Sale Sold out
Taxes included. Shipping calculated at checkout.

Features

  • All new High-quality MOSFETs with low internal resistance & heat generation, and individual metal heatsink
  • New and faster F4 MCU @ 150Mhz (compared to F3 @108Mhz & F0 @48Mhz)
  • Separate drive & control circuit, reducing the electrical interference to the control circuit
Specifications

Continuous current: 50A x4
Burst current: 60A x4
Battery support: 4-6S
PWM frequency: 8k to 96k
Support DShot 150/300/600/1200
Support MultiShot/OneShot/Proshot/PWM, etc.
ESC Telemetry Support
Onboard analog current sensor
AM32 Firmware
1000uf 35v capacitor included
Mounting holes: 3.8mm @ 20x20mm, compatible with either M2& M3 Rubber Gourmet (Included)

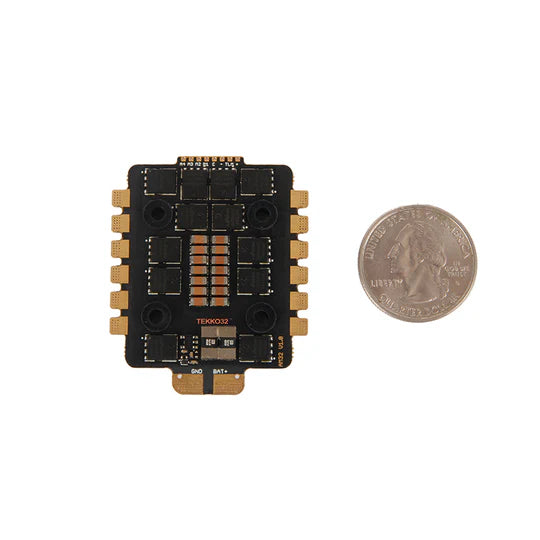

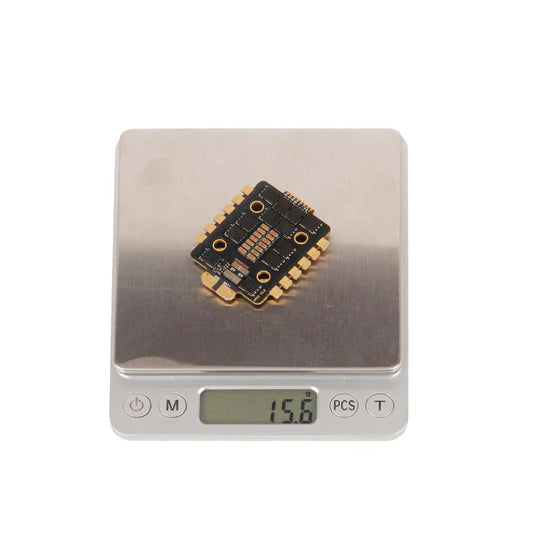

Dimensions: 46.6x38x6mm / Weight: 15.6g
Firmware target: AM32_F4A_4IN1_F421

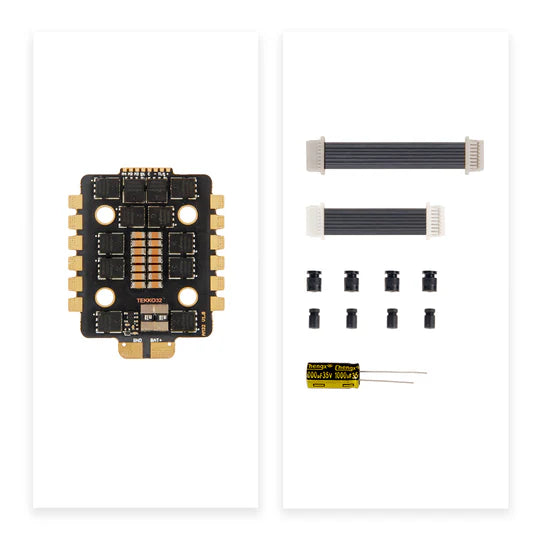

Includes

1 x Tekko32 F4 4 in 1 mini 50A ESC
4 x M2 Anti-Vibration Silicone Grommet Insert
4 x M3 Anti-Vibration Silicone Grommet Insert
1 x Electrolytic capacitor: 1000uF 35v
1 x 8pin to 8pin 1mm pitch 65mm cable
1 x 8pin to 8pin 1mm spacing 25mm cable
