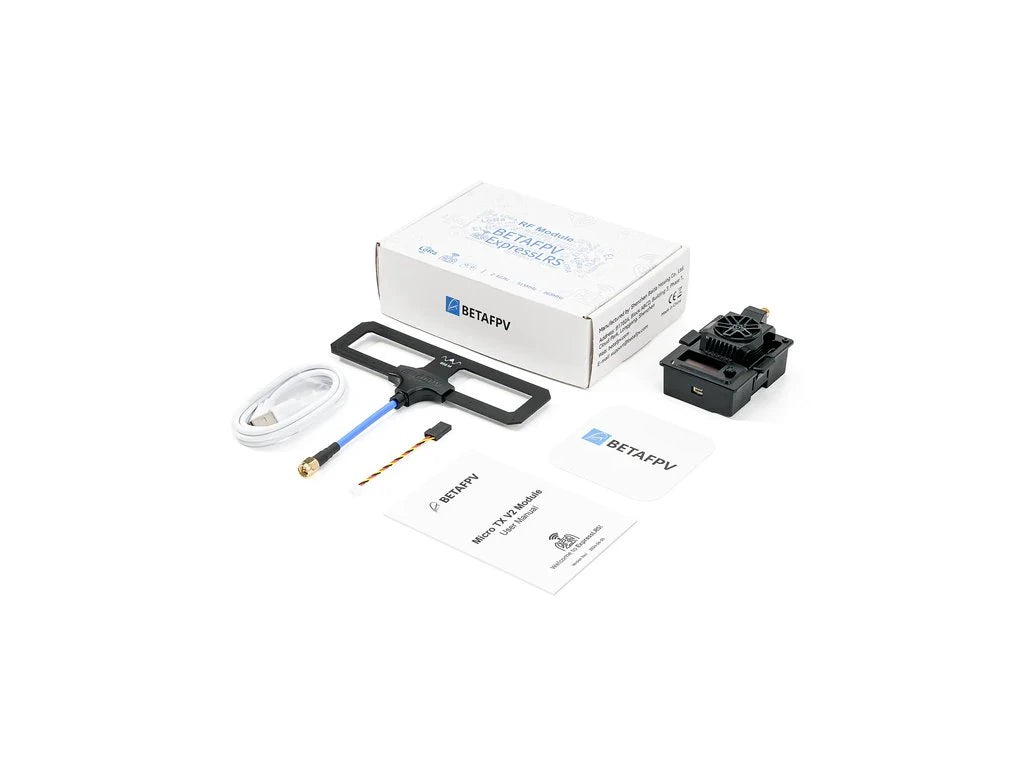

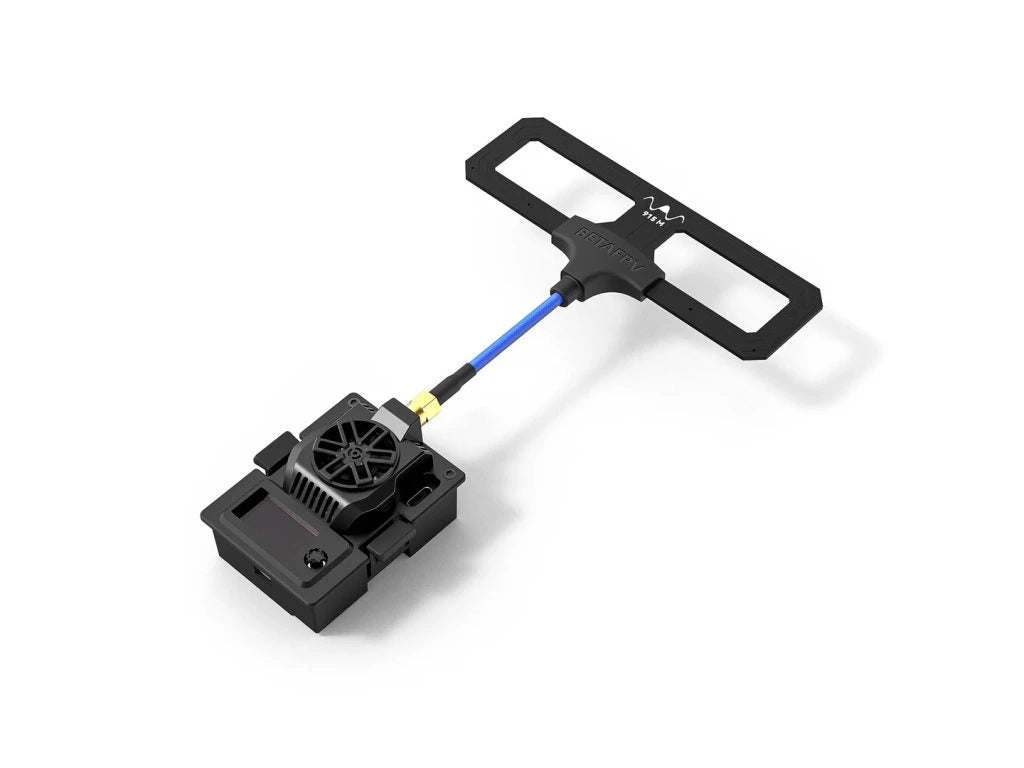

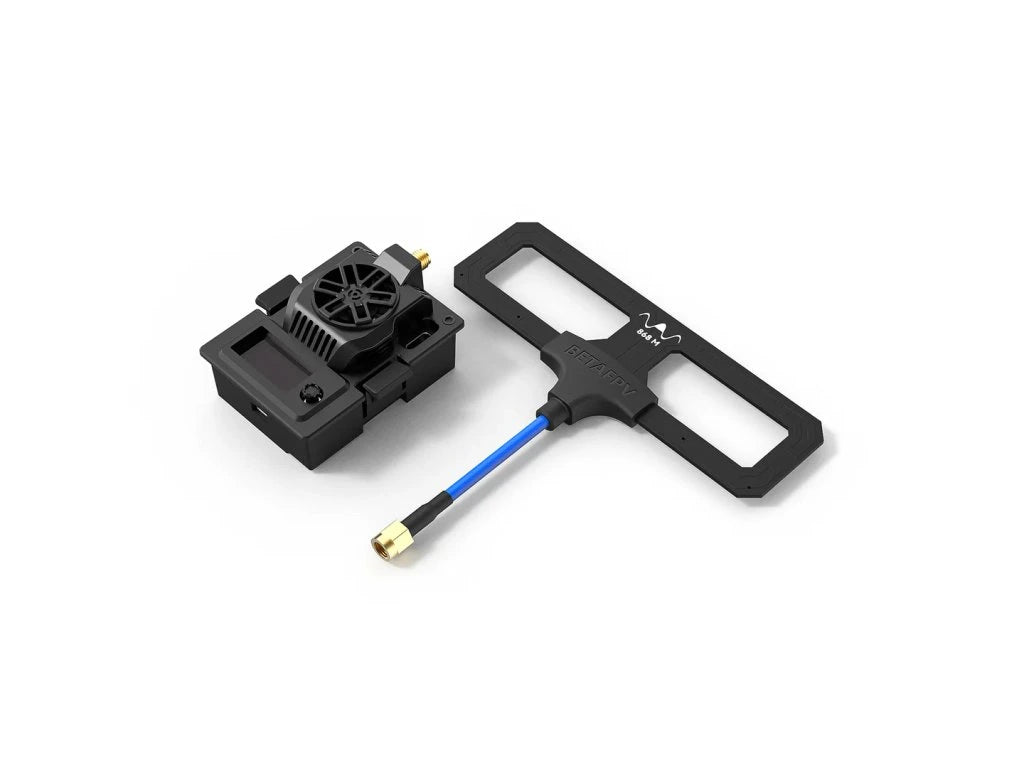

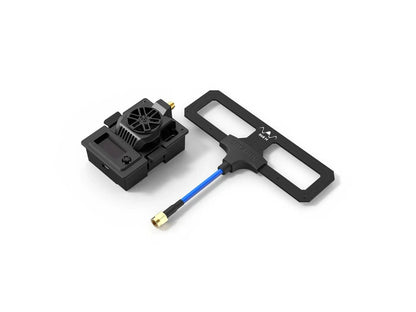

TX Module BetaFPV Micro V2 868/915MHz
TX Module BetaFPV Micro V2 868/915MHz
Couldn't load pickup availability
The BETAFPV Micro TX V2 is an ExpressLRS transmitter module operating on the 868MHz and 915MHz frequencies. It delivers up to 2W of RF output power and supports packet rates up to 200Hz for long-range RC links.

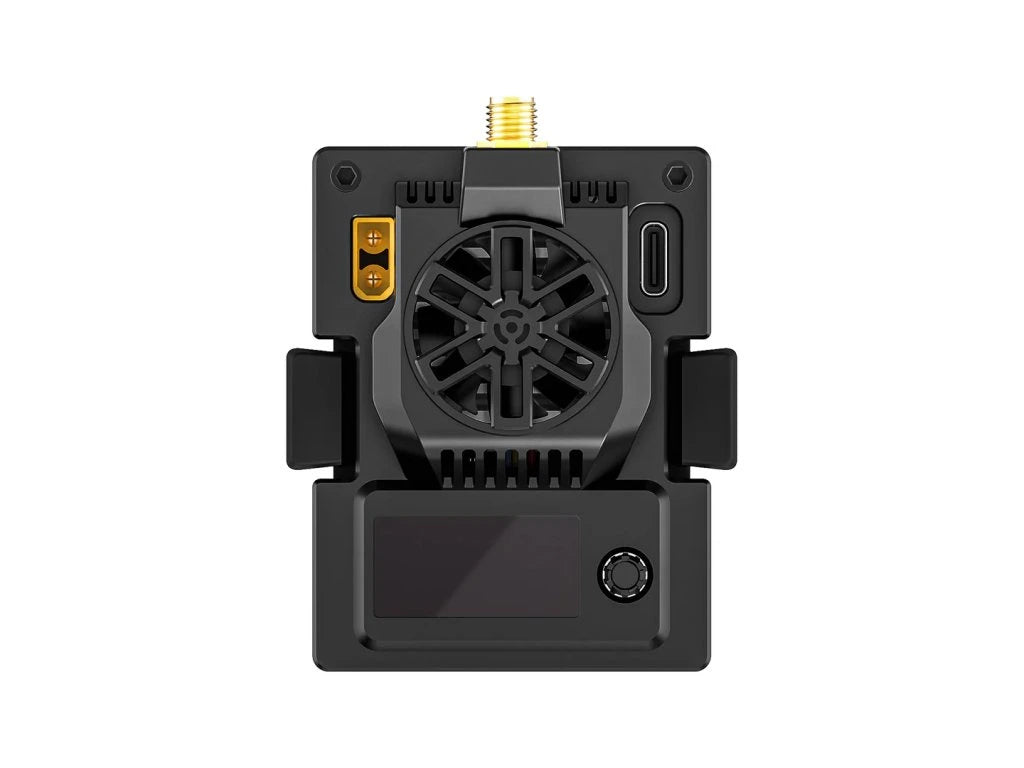

The module features an integrated cooling setup with a 2507 axial fan, enlarged airflow vents, and a TCXO oscillator to maintain stable output power. Onboard settings and configuration can be managed directly using the integrated OLED display and 5D navigation button.
Key Features:
-
2W Output Power: Features selectable RF power levels from 10mW up to 2000mW.
-
Active Cooling: Built-in 2507 axial fan and TCXO oscillator prevent thermal throttling during high-power operation.
-
OLED Display & 5D Button: Allows on-device menu navigation, power level adjustments, and configuration without a PC.
-
ExpressLRS Protocol: Provides low-latency RC control with refresh rates up to 200Hz.
-
ExpressLRS Backpack Support: Enables wireless communication with compatible FPV hardware.
