VTX AKK X2-Ultimate 5.8G 1.2W
VTX AKK X2-Ultimate 5.8G 1.2W
Couldn't load pickup availability
4-6 working days

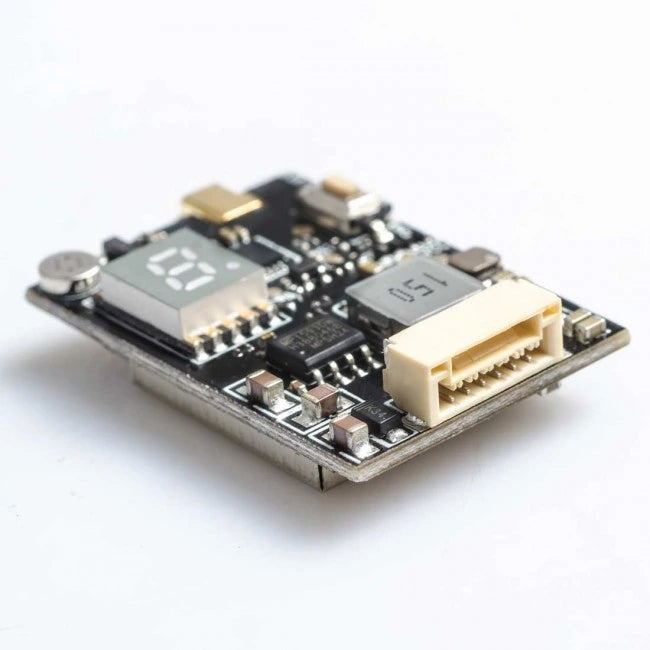

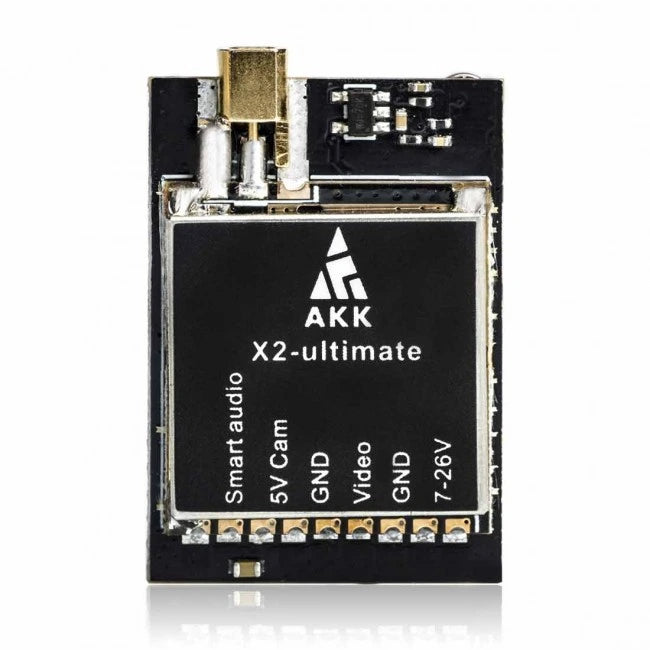

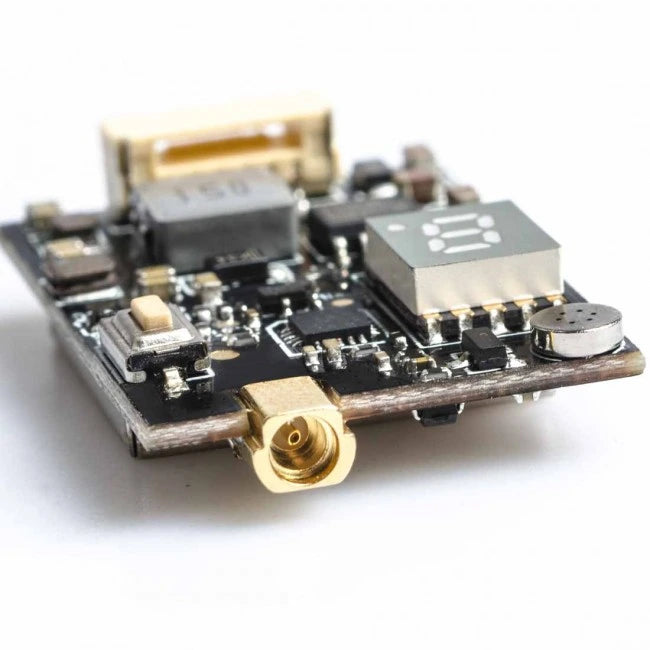

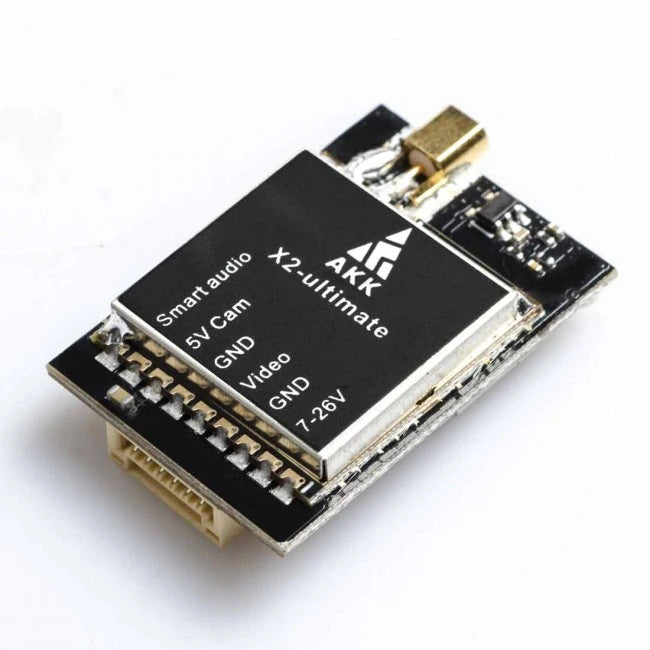

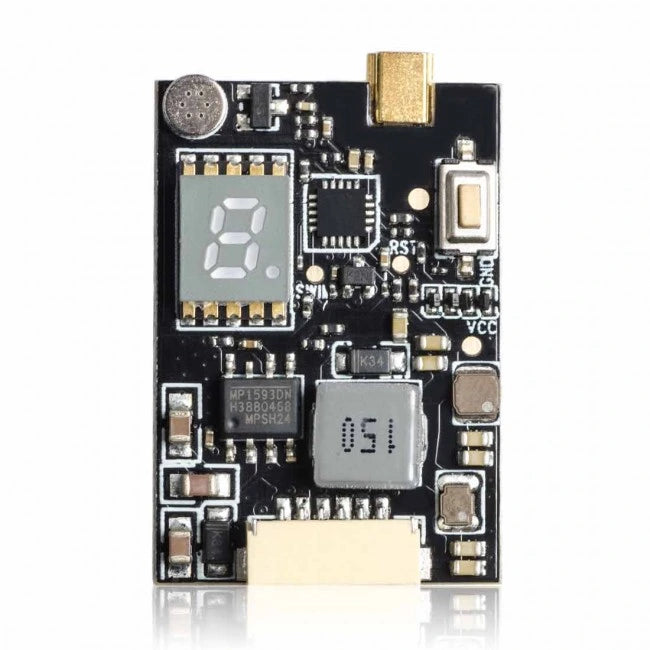

VTX AKK X2-Ultimate
The AKK X2-ultimate version of the video transmitter now supports power up to 1200mW. Just like the previous version, there is 0.01 mW clean switching with zero interference, an additional 5V BEC for powering low-current systems such as an analog FPV camera, and support for OSD configuration via the Betaflight flight control panel.
Features:
- Unprecedented power range from 0.01mW (pure switching) to 1200mW for long distances.
- Digital display and button on the body to switch power or frequency
- Microphone integrated
- Large input power range from 7 to 26V, BEC 5V is present for connecting an analog camera
- Smart Audio function. Transmitter parameters can be changed using the radio remote control via OSD when connected to the controller via UART
Specifications
Output power: 25/200/600/1200mW
Input voltage: 7-26V
Frequency: 5.8GHz
BEC: 5V for FPV camera (0.5A max)
Cable connector: 6-pin JST
Antenna connector: MMCX
Dimensions: 32x22mm
Weight: 6.8g (without antenna)

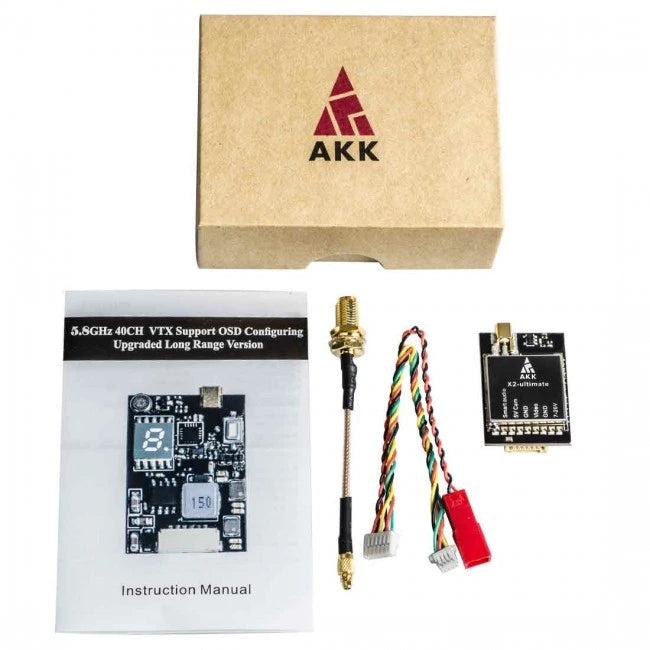

Includes
1 x AKK X2-ultimate VTX
1 x 6-pin JST cable
