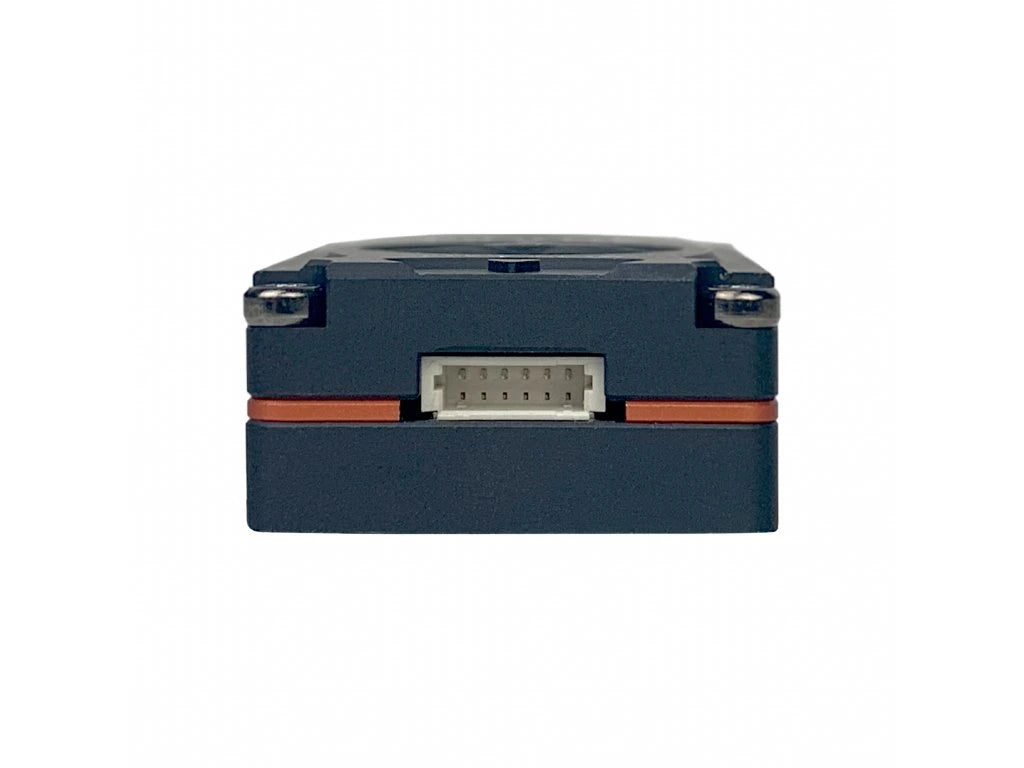

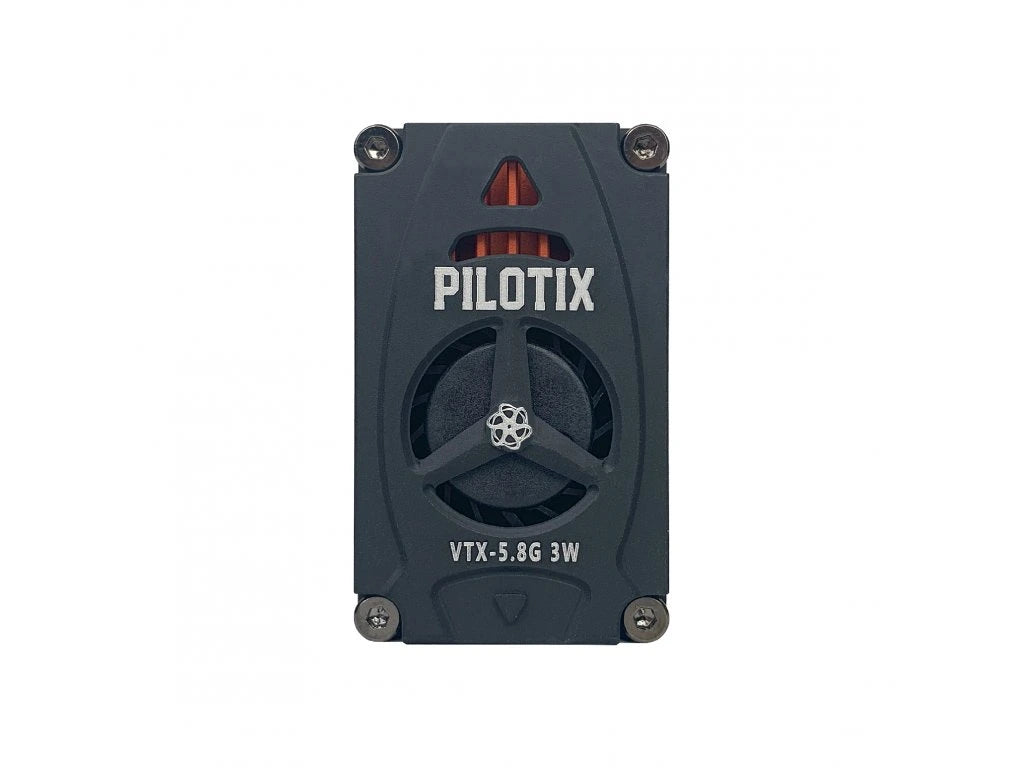

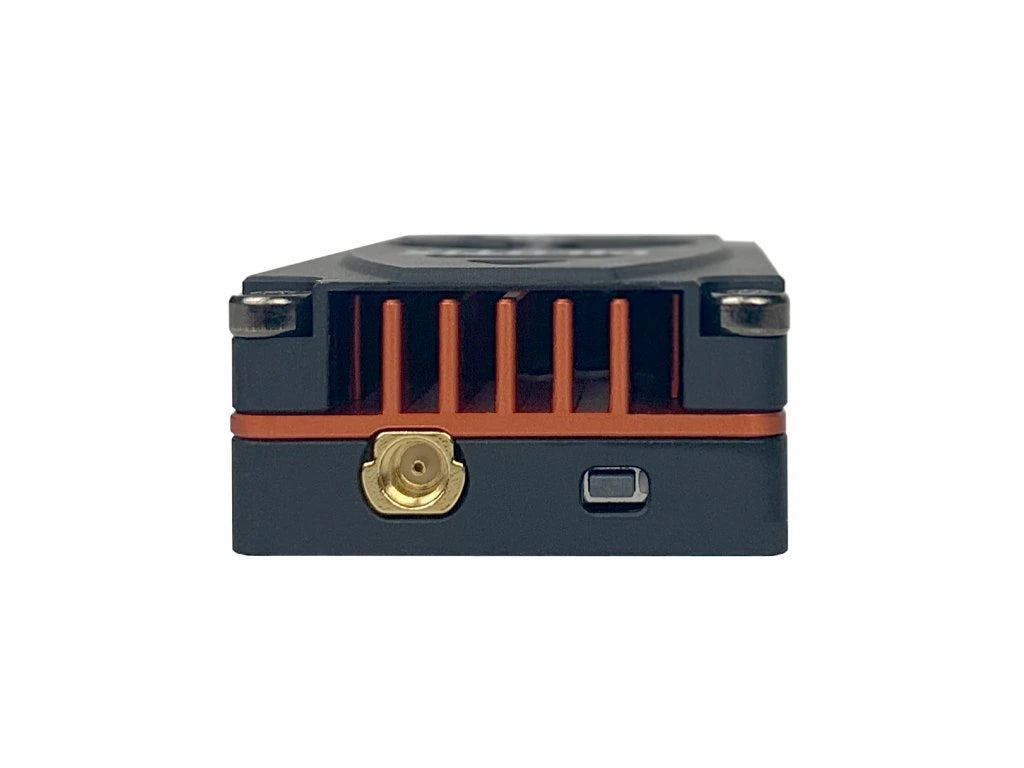

VTX Pilotix R3000 5.8G 3.0W

VTX Pilotix R3000 (5.8G 3.0W)

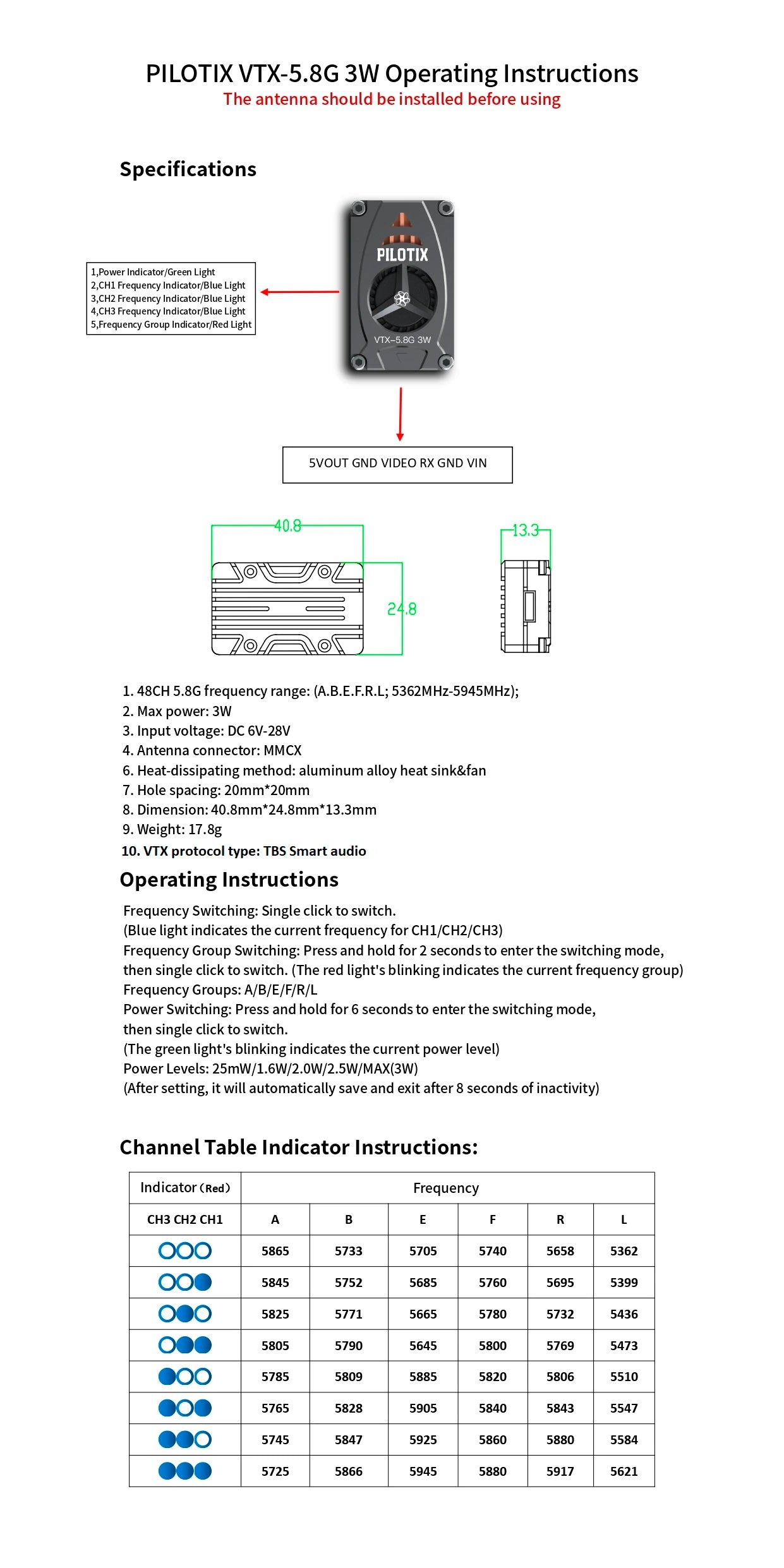

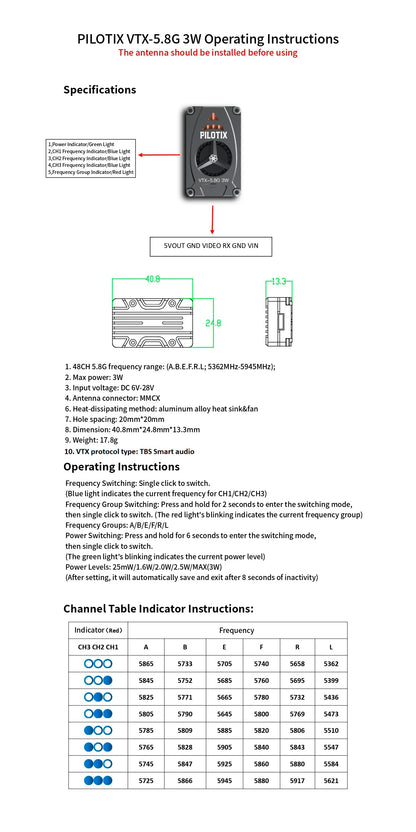

Operating Instructions:Frequency Switching: Single click to switch. (Blue light indicates the current frequency for CH1/CH2/CH3).Frequency Group Switching: Press and hold for 2 seconds to enter the switching mode, then single click to switch. (The red light's blinking indicates the current frequency group).Frequency Groups: A/B/E/F/R/LPower Switching: Press and hold for 6 seconds to enter the switching mode, then single click to switch. (The green light's blinking indicates the current power level).Power Levels: 25mW/1.6W/2.0W/2.5W/MAX(3W) (After setting, it will automatically save and exit after 8 seconds of inactivity).
